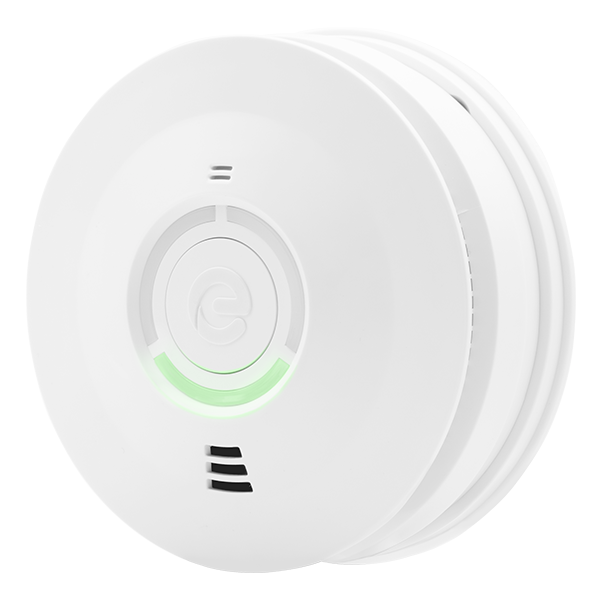

Espire ES1SRV Optical Smoke Alarm (Mains Powered - Replaceable Battery)
£
21
86
(Incl. VAT)
5 Years Warranty
Optical Smoke Alarm (Mains Powered - Replaceable Battery)
About this product
About this product
The Espire ES1SRV is an Optical Smoke Alarm (Mains Powered - Replaceable Battery).
Key Features
- Certified to EN 14604:2005 + AC:2008
- Dust compensation
- Insect mesh
- Anti-Tamper Lock-In wiring base
- Genuine ESP smoke alarm supplied by WME
-
Download
- ES1SRV Tech Sheet
£
21
86
FAST delivery by Order within
Price
Technical Details
Specifications
7.8mm
34.2mm
Dimensions (mm)
ø132 x 52
Colour
White
Materials
UL94-V0 rated UV stabilised ABS
Mounting
Ceiling or Wall
Recommended Installation Locations
Living Areas, Bedrooms, Escape Routes & Stairways
Auto Dim Power LED
Day Mode and Night Mode (Not intrusive to sleep)
Manual Test Button
Checks sensor, electronics & sounder
Weight (Kg)
0.25
Warranty (Years)
5
Sensor Type
Optical Smoke
Sounder Output (dB)
85 @ 3m
Hush Function
Alarm hush - 10 minutes, Fault hush - 12 hours
Installation Grade
D2
Supply Type
Mains AC with battery backup
Supply Voltage (V AC)
230
Frequency (Hz)
50
Maximum Power Consumption (W)
1
Standby Power Consumption (W)
0.2
Battery Backup
Replaceable Battery
Battery Type
9V Alkaline
Battery Size
PP3
Battery Chemistry
Alkaline
Wired Interconnect Supported
Yes
Maximum Interconnect Wiring Distance (m)
300
RF-LINK Supported
No
Base Type
Anti-Tamper Lock-In Wiring Base
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
95 (non-condensing)
ES1MP: Alarm Masking Plate
Dust compensation
ES1MTW: Alarm Multi Tool (2 Pack) White
Insect mesh
ES1MTB: Alarm Multi Tool (2 Pack) Black
24 hour memory function
Dimensions
Dimensions (mm)
ø132 x 52
Specifications
| 7.8mm | 34.2mm |
|---|---|
| Dimensions (mm) | ø132 x 52 |
| Colour | White |
| Materials | UL94-V0 rated UV stabilised ABS |
| Mounting | Ceiling or Wall |
| Recommended Installation Locations | Living Areas, Bedrooms, Escape Routes & Stairways |
| Auto Dim Power LED | Day Mode and Night Mode (Not intrusive to sleep) |
| Manual Test Button | Checks sensor, electronics & sounder |
| Weight (Kg) | 0.25 |
| Warranty (Years) | 5 |
| Sensor Type | Optical Smoke |
| Sounder Output (dB) | 85 @ 3m |
| Hush Function | Alarm hush - 10 minutes, Fault hush - 12 hours |
| Installation Grade | D2 |
| Supply Type | Mains AC with battery backup |
| Supply Voltage (V AC) | 230 |
| Frequency (Hz) | 50 |
| Maximum Power Consumption (W) | 1 |
| Standby Power Consumption (W) | 0.2 |
| Battery Backup | Replaceable Battery |
| Battery Type | 9V Alkaline |
| Battery Size | PP3 |
| Battery Chemistry | Alkaline |
| Wired Interconnect Supported | Yes |
| Maximum Interconnect Wiring Distance (m) | 300 |
| RF-LINK Supported | No |
| Base Type | Anti-Tamper Lock-In Wiring Base |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| ES1MP: Alarm Masking Plate | Dust compensation |
| ES1MTW: Alarm Multi Tool (2 Pack) White | Insect mesh |
| ES1MTB: Alarm Multi Tool (2 Pack) Black | 24 hour memory function |
Dimensions
| Dimensions (mm) | ø132 x 52 |
|---|
Optical Smoke Alarm (Mains Powered - Replaceable Battery) features
