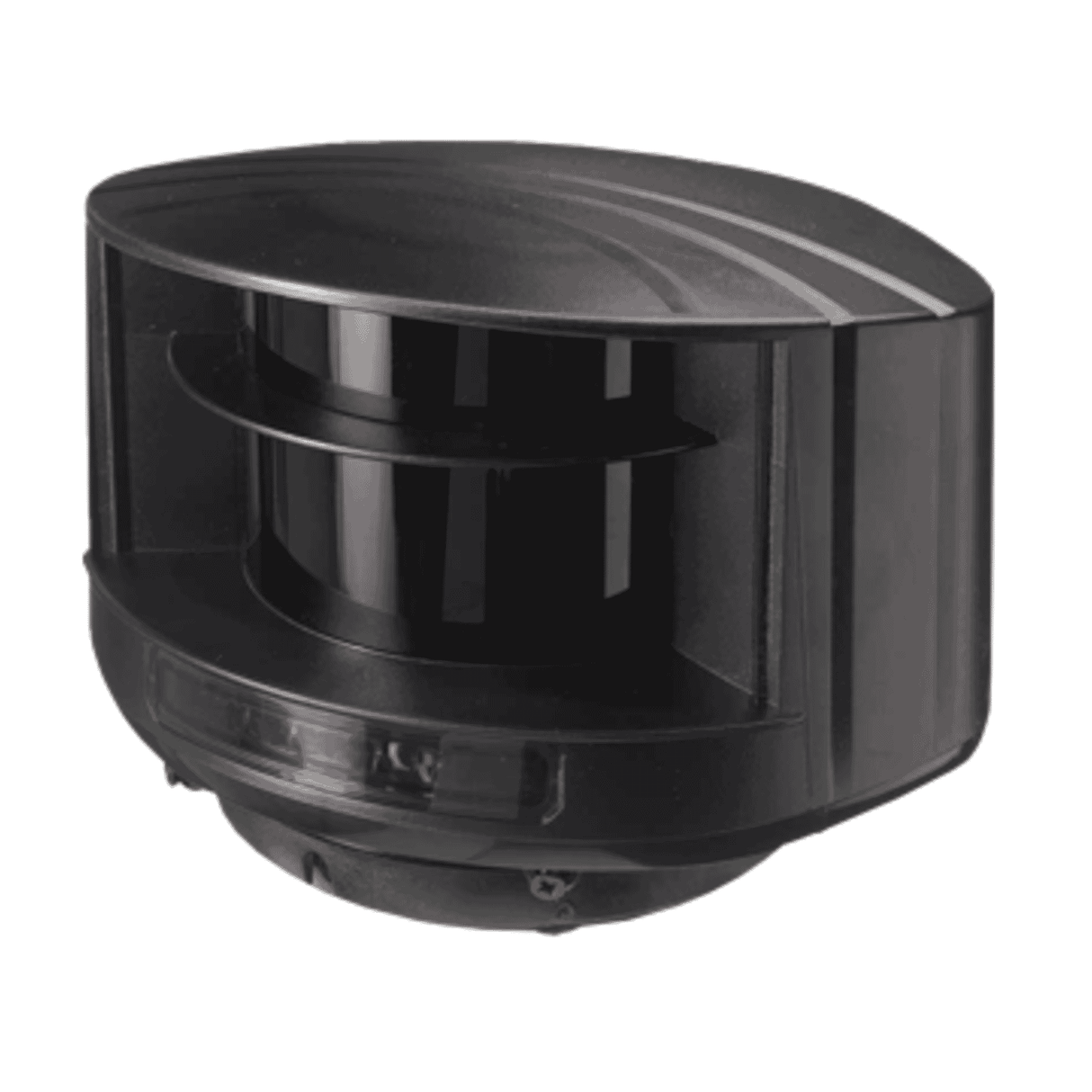

GJD D-TECT Laser GJD509, 10 m × 10 m Perimeter Curtain Detector, IP65

Introduction to the GJD D‑TECT Laser GJD509 and its key features

The GJD D‑TECT Laser GJD509 (10 m × 10 m) is a precision perimeter curtain detector designed for demanding security applications. Using time‑of‑flight (TOF) laser scanning, the GJD509 creates programmable curtain‑style detection zones with positioning precision down to around 10 cm and a fast typical response time of approximately 20 ms. Packaged in an IP65 weatherproof enclosure with tamper outputs and visible alignment lasers, the GJD509 is built to protect doorways, displays, perimeters and vulnerable outdoor access points where accuracy and reliability matter.

Detailed description of specifications and benefits

The GJD509 brings a combination of laser TOF sensing, configurable zone logic and robust physical design. Below are the key specifications and how they translate into practical benefits for installers and end users.

• Detection range: Up to 10 m × 10 m curtain. Benefit: wide curtain coverage suitable for entryways, display protection and short perimeter runs without the complexity of multiple sensors.
• Detection modes: Motion and presence using time‑of‑flight laser. Benefit: reliable detection of both moving and stationary intruders, reducing blindspots that motion‑only sensors can miss.
• Minimum target size: Approximately 2.1 cm at 3 m; 3.5 cm at 5 m; 7 cm at 10 m. Benefit: small object detection capability makes the unit effective at spotting pedestrian ankles, hands or small tools that could indicate tampering or intrusion.
• Response time: Approx. 20 ms. Benefit: near real‑time alarm generation that can trigger cameras, lights or downstream security actions quickly.

• Alignment lasers: Visible setup lasers (650 nm) for straightforward alignment during installation. Benefit: reduces time on ladder and simplifies commissioning.
• Operational laser: IR 905 nm time‑of‑flight laser (not visible). Benefit: covert sensing during operation while delivering accurate distance measurements. Note: follow manufacturer safety guidance and disconnect power before wiring.

• Supply voltage: 10–35 V DC (typical recommended 24 V DC). Benefit: flexible power options for varied installations and simple integration with common security power supplies.
• Power consumption: < 5 W (typical). Benefit: low operating power for energy‑efficient deployments and minimal impact on backup power budgets.
• Alarm & tamper outputs: Wired alarm relays/volt‑free outputs plus front and rear tamper outputs. Benefit: straightforward integration with alarm panels and tamper monitoring for anti‑vandal protection.
• LED indicators: ON/OFF, alarm, fault and detection LEDs (can be switched off/covert). Benefit: on‑site diagnostics without revealing sensor location if covert operation is required.

• Housing material: PC/ASA or ABS/PC (UV stabilised). Benefit: long service life in outdoor exposure with resistance to UV degradation.
• Dimensions: Approx. 70 × 93 × 125 mm (H × W × D). Benefit: compact footprint that fits discreet mounting positions.
• Mounting: Wall/brace mounting (bracket adds depth). Benefit: flexible installation options to suit entrances, recesses or facade mounts.
• Protection rating: IP65 weather resistant. Benefit: designed for outdoor use in rain and dust without additional enclosure.
• Operating temperature: −30 °C to +60 °C (typical). Benefit: reliable performance across a wide range of climates.

• Compliance: Check manufacturer datasheet for CE / UKCA marking. Benefit: regulatory compliance ensures safe operation and acceptance in many jurisdictions.
• Warranty: 2 years (typical — confirm with reseller). Benefit: manufacturer support for initial product life period.
• Configuration: Programmable detection zones (multiple curtains), adjustable sensitivity and pre‑alarm options. Optional remote control configuration (sold separately). Benefit: tailored performance to match site‑specific risk profiles and reduce nuisance alarms.

Use cases and scenarios where the GJD509 excels

The D‑TECT Laser GJD509 is particularly well suited to locations where precision curtain detection and a small, discreet sensor footprint are needed. Typical scenarios include:

• Short stretches of perimeter—gates, narrow access corridors or building approaches—where a vertical or horizontal curtain can detect an intruder crossing a line.
• When used with CCTV, the GJD509 can trigger pre‑set camera tours or recording, ensuring the first moment of incursion is captured.

• Secure doorways, service entrances and loading bays where monitoring of both motion and presence matters—detecting lingering or concealed people trying to enter or tamper with doors.

• Museums, retail displays and exhibit cases can benefit from the curtain profile to detect hands or objects breaching a protective boundary without placing bulky sensors in view.

• Tamper outputs and covert LED modes make the GJD509 useful for protecting service cabinets, communication cabinets and remote equipment cabinets from vandalism or tampering attempts.

Comparisons with similar products in the market

Understanding how the GJD509 compares with other sensor types helps clarify its ideal applications:

• Beam detectors offer simple point‑to‑point detection but are typically single‑line and can be defeated by severing the beam. The GJD509 provides programmable curtain zones and time‑of‑flight distance measurement across multiple points, offering more flexible coverage and resistance to simple bypass.

• PIR sensors are inexpensive and effective for general motion detection but can have larger dead zones and are sensitive to temperature and environmental heat sources. The GJD509 uses active laser TOF sensing, giving precise positional data and better presence detection (stationary objects) where PIRs may fail.

• Microwave sensors can interrogate larger volumes but are prone to false alarms from foliage, metallic surfaces or nearby traffic. The laser curtain delivers defined line‑based detection with programmable sensitivity and precise zone placement to minimise nuisance triggers.

• Compared with larger rotating LIDAR or scanning systems, the GJD509 is compact, lower power and purpose‑built for curtain detection up to 10 m. It won’t replace wide‑area LIDAR mapping, but it excels where a simple curtained boundary is needed at low installation complexity and cost.

Conclusion: Why the GJD D‑TECT Laser GJD509 is a strong choice

The GJD D‑TECT Laser GJD509 combines precise time‑of‑flight laser sensing, programmable curtain coverage and rugged outdoor design in a compact package. Its strengths are clear: accurate detection of motion and presence, fast response times, flexible zone configuration and practical installation aids such as visible setup lasers and covert LED options. With IP65 protection and a wide operating temperature range, the GJD509 is suitable for both indoor display protection and outdoor perimeter monitoring.

For projects that need defined curtain‑style protection—doorways, small perimeter stretches, display cases or anti‑vandal cabinets—the GJD509 offers a blend of performance, reliability and ease of integration.
