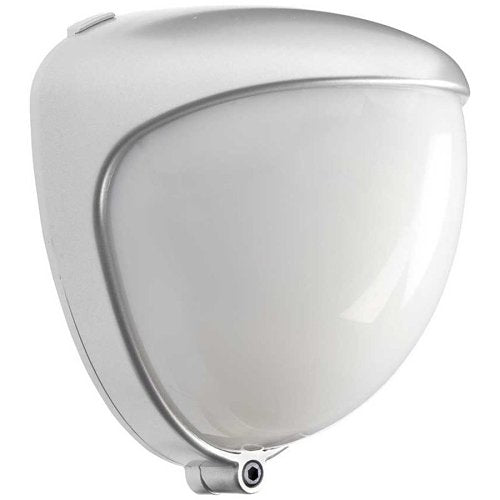

GJD GJD332 PIR motion detector, Silver
About this product
GJD GJD332 is a PIR motion detector.
An adjustable range PIR with front and rear tamper switches as well as sliding curtains to aid installation and field of view alignment. Modelled after the modern and stylish look of the D-TECT range of detectors. GJD Mini Opal detectors are designed for outdoor use in conjunction with the following GJD indoor lighting controllers:
Sapphire Mk3
Emerald Mk3
Solitaire 2 Zone Expansion Unit
Dygizone 4 Zone lighting controller / enunciator
4 Zone Expansion Unit
Key features
- Dual tamper switch for case and wall-mount tamper protection
- Sliding curtains for precise coverage
- ±90º horizontal and ±45º vertical aim adjustment
- Conformally coated electronics for enhanced UV and moisture resilience
- IP55 rated
- Easy to install
- Covert detection
- Adjustable range selection
If you are matching this to an existing installation, work from the GJD332 part number rather than the description.
Specifications
General information
Technical information
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | GJD |
|---|---|
| Manufacturer Part Number | GJD332 |
| Product Type | Motion Sensor |
General information
| Application/Usage | Outdoor |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Motion Sensing Distance | 30m |
| Maximum Outdoor Detection Range | 30m |
| Maximum Viewing Angle | 180° |
| Minimum Motion Sensing Distance | 10m |
| Passive Infrared Sensor (PIR) | Yes |
| Sensor Type | Infrared Sensor |
| Wireless Technology | Infrared |
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 72.00mm |
| Height | 106.00mm |
| Weight | 750.00g |
| Width | 84.00mm |
Power description
| Input Voltage | 15V DC |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Miscellaneous
| Compatibility | 4 Zone Expansion Unit, DygiZone 4 Zone lighting controller / enunciator, Emerald Mk3, GJD indoor lighting controllers, Sapphire Mk3, Solitaire 2 Zone Expansion Unit |
|---|---|
| Features | Adjustable range selection, Covert design, Easy to install, Minimum maintenance, Tamper Prevention, White light filter |
| Indoor or outdoor use | Outdoor |
Attributes
| Compatibility | 4 Zone Expansion Unit, DygiZone 4 Zone lighting controller / enunciator, Emerald Mk3, GJD indoor lighting controllers, Sapphire Mk3, Solitaire 2 Zone Expansion Unit |
|---|---|
| Input Voltage | 15V DC |
| Weight | 750.00g |
