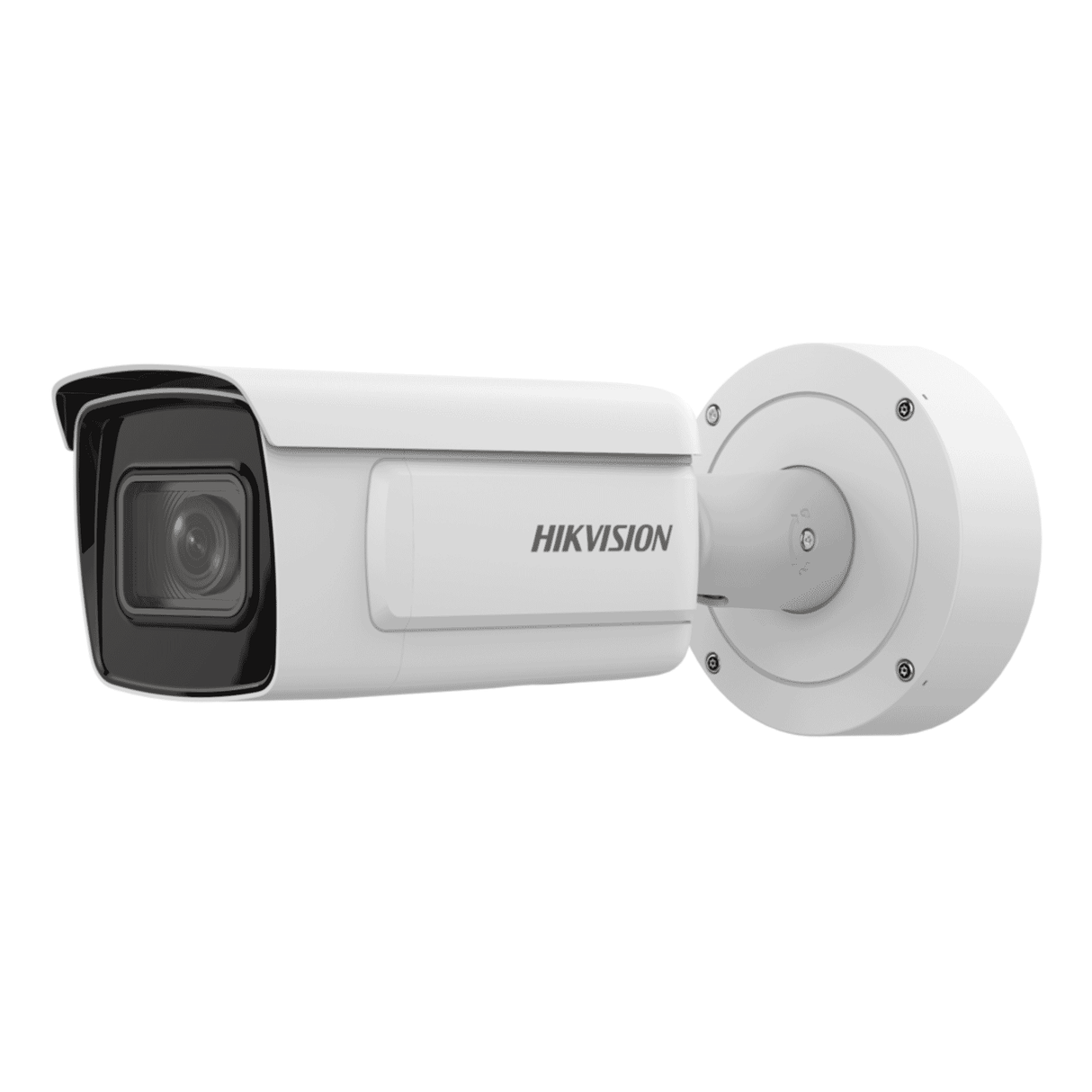

Hikvision iDS-2CD7A46G0-IZHS Bullet Camera, 4MP, 8-32 mm Motorised, 140 dB WDR, ITM004364

Introduction to the Hikvision iDS-2CD7A46G0-IZHS

The Hikvision iDS-2CD7A46G0-IZHS (marketed as the 4MP DeepinView Bullet, 8 6–32 mm) is a purpose-built outdoor surveillance camera designed for medium-to-long range monitoring. Combining a 1/1.8" progressive CMOS sensor, Hikvision’s DeepinView imaging enhancements and DarkFighter low-light technology, this motorised varifocal bullet camera targets sites that need crisp daytime images, strong backlight handling and reliable night performance. Key on-paper features include a motorised 8 6–32 mm P-iris lens for remote zoom and focus, 140 dB wide dynamic range (WDR), IR illumination to roughly 100 m, H.265+ encoding efficiency and rugged IP67/IK10 housing for demanding outdoor environments.

Key features at a glance

• Resolution:4 MP (2688 7 1520) for detailed identification across medium distances.
• Motorised varifocal lens:8 6 732 mm P-iris with remote zoom and focus for faster commissioning and dynamic re-framing.
• Wide dynamic range:140 dB WDR to handle strong backlighting and high-contrast scenes.
• Low-light technology:DarkFighter-enabled colour at very low lux and powerful IR (approx. 100 m) for nighttime clarity.
• Efficient encoding and streaming:H.265/H.265+, H.264/H.264+ and MJPEG with up to five simultaneous streams.
• Rugged build:IP67-rated weatherproofing and IK10 vandal resistance for outdoor resilience.
• Flexible power and storage:PoE and 12 V DC power options plus on-board microSD recording.

Detailed specifications and benefits

The camera uses a 1/1.8" progressive CMOS sensor delivering 2688 7 1520 pixels at typical 25/30 fps. The motorised P-iris 8 6 mm lens gives an adjustable horizontal field of view of approximately 42.5° at 8 mm down to about 15.1° at 32 mm. Because the lens is motorised, installers and remote administrators can adjust zoom and focus without physical access to the unit, which saves time on commissioning and when field-of-view changes are required after installation.

DarkFighter low-light performance helps maintain colour images at very low lux levels (colour: ~0.0005 lux at F1.2; monochrome lower), and integrated 850 nm IR illumination extends visibility to roughly 100 m on the 8 6 mm model. The camera also includes a smart supplement light option to improve detection in very low ambient light while reducing glare for nearer objects.

With 140 dB of wide dynamic range (WDR), the unit excels in scenes with bright backgrounds and dark foregrounds (for example, entrances with strong daylight behind a subject). WDR ensures both shadow and highlight regions retain useful detail. Combined with DeepinView optimisations and efficient encoders, the camera balances image quality and bandwidth/storage demands using H.265+ and other compression profiles.

Network connectivity is via RJ45 10/100/1000 Mbps with support for ONVIF and industry-standard protocols including RTSP, HTTPS, SNMP and 802.1X. On-board storage via microSD/microSDHC/microSDXC provides edge recording for redundancy; check the exact datasheet for maximum supported card capacity per SKU. Power options include Power-over-Ethernet (PoE) and 12 V DC — practical for sites that prefer single-cable PoE installations. Typical power consumption varies with IR/heater usage; nominal operation commonly falls in the 12 6 W range but can increase in cold conditions or when heaters are active.

The IP67-rated housing resists dust and heavy rain, while IK10 impact resistance protects the camera glass and body from deliberate or accidental impact. Operating temperatures commonly extend from roughly 640°C to +60°C depending on variant and optional heater; confirm the exact environmental limits on the datasheet for the submodel you will deploy.

Use cases and scenarios where this camera excels

The iDS-2CD7A46G0-IZHS is well suited to locations that require medium-to-long range observation combined with strong low-light and WDR performance. Typical scenarios include:

• Perimeter and site monitoring:Long corridors, fences or property lines where remote zooming lets operators read licence plates or identify persons at distance without deploying multiple fixed cameras.
• Car parks and access lanes:The combination of 4 MP detail, good WDR and long-range IR helps capture vehicles and occupants at entrances or lanes during day and night.
• Industrial and port facilities:Outdoor yards and loading areas where weatherproofing and vandal resistance are essential and where lighting conditions vary dramatically.
• Transport corridors:Roadside monitoring, long outdoor walkways and rail sidings where a narrow field of view at long zoom provides identification while a wide end captures contextual scenes.
• Commercial campuses and retail perimeters:Where a single motorised camera can replace multiple fixed lenses to give flexible coverage and reduce hardware footprint.

Comparisons with similar products

When evaluating the iDS-2CD7A46G0-IZHS, consider how it stacks up against other camera types and resolutions:

• Vs fixed-lens 4 MP cameras:Fixed-lens models are typically less expensive but lack remote zoom and focus. The Hikvision motorised varifocal saves installation time and offers continued framing flexibility, making it better for variable sites or where post-installation adjustments are likely.
• Vs PTZ cameras:PTZs offer active pan/tilt/zoom and tracking but are mechanically more complex and may not be ideal for continuous long-range detail capture due to movement blur and mechanical wear. The DeepinView bullet provides continuous high-quality imaging with fewer moving parts and more rugged vandal/weather protection for permanent viewing angles.
• Vs higher-resolution (e.g., 8 MP) cameras:An 8 MP camera provides finer detail at long range but also increases bandwidth and storage needs. The 4 MP trade-off often yields lower data costs while retaining sufficient detail for many identification tasks; the motorised lens helps optimise the scene for the best return on resolution.
• Brand and feature comparisons:The camera’s DarkFighter and DeepinView technologies are positioned for superior low-light and scene optimisation versus commodity 4 MP offerings. When comparing vendors, check actual low-light and IR range tests, and confirm WDR performance in real-world scenes rather than relying only on claimed dB figures.

Conclusion: Why choose the iDS-2CD7A46G0-IZHS?

The Hikvision iDS-2CD7A46G0-IZHS balances image quality, long-range capability and field flexibility in a rugged outdoor package. Its motorised 8 6 mm P-iris lens reduces installation time and future-proofs framing needs, while 140 dB WDR and DarkFighter low-light performance maintain useful detail across challenging lighting conditions. For medium-to-long range surveillance tasks such as perimeter security, car parks and industrial yards, the camera delivers a practical mix of performance and operational convenience. Compression options (including H.265+) and on-board storage help manage bandwidth and resiliency, and IP67/IK10 ratings increase uptime in exposed locations.

As with any professional security purchase, confirm the exact submodel SKU, datasheet limits and local compliance markings (CE / UKCA) before deployment, and engage a qualified installer for safe and standards-compliant installation.
