Hikvision HV1140D-8MPIRA varifocal aspherical lens, 11-40mm
About this product
Please note: this is a non-returnable item (excluding faulty goods)

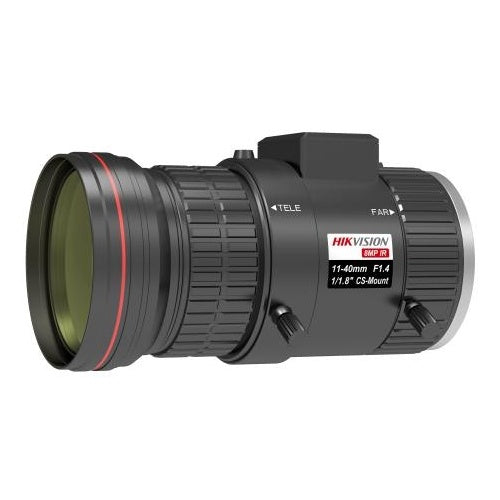

Hikvision HV1140D-8MPIRA is a varifocal aspherical lens.
This page covers Hikvision part HV1140D-8MPIRA. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover application/usage, field of view, iris type among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Application/Usage: Surveillance Camera. This is the figure the record carries for this exact part number.
- Field of View: Diagonal, Horizontal, Vertical. Parts in the same family can differ here, so check the code rather than the family.
- Iris Type: DC Auto Iris. It is listed for this part number, not for the range as a whole.
- Lens Mount Type: CS-Mount. Where your specification names a figure, compare it against this one before ordering.
- Lens Type: Varifocal. Parts in the same family can differ here, so check the code rather than the family.
- Maximum Aperture: f/1.4. This is the figure the record carries for this exact part number.
- Minimum Focal Length: 11.00mm. Where your specification names a figure, compare it against this one before ordering.
- Optical Zoom: 3.5x. It is listed for this part number, not for the range as a whole.
- RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. This is the figure the record carries for this exact part number.
- WEEE Compliant: Compliant. Parts in the same family can differ here, so check the code rather than the family.
- Autofocus: Not present on this part number. Where a related part in the same range carries it, that does not carry across to this one. It is listed for this part number, not for the range as a whole.
- Focal Length: 11-40mm. Where your specification names a figure, compare it against this one before ordering.
- Maximum Focal Length: 40.00mm. Parts in the same family can differ here, so check the code rather than the family.
- Diameter: 48.00mm. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the varifocal aspherical lens role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Typical application: Surveillance Camera.
If you are matching this to an existing installation, work from the HV1140D-8MPIRA part number rather than the description.
Specifications
General information
Technical information
Certifications
Lens
Product information
Miscellaneous
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | HV1140D-8MPIRA |
| Product Type | Varifocal Lenses |
General information
| Application/Usage | Surveillance Camera |
|---|
Technical information
| Field of View | Diagonal, Horizontal, Vertical |
|---|---|
| Iris Type | DC Auto Iris |
| Lens Mount Type | CS-Mount |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.4 |
| Minimum Focal Length | 11.00mm |
| Optical Zoom | 3.5x |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE Compliant | Compliant |
Lens
| Autofocus | No |
|---|---|
| Focal Length | 11-40mm |
| Maximum Focal Length | 40.00mm |
Product information
| Diameter | 48.00mm |
|---|---|
| Length | 92.90mm |
Miscellaneous
| Sensor Size Compatibility | 1/1.8", 1/2" |
|---|
