About this product

Please note: this is a non-returnable item (excluding faulty goods)

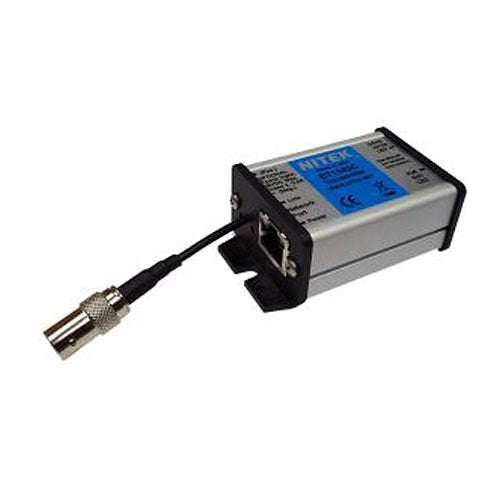

Nitek ET1543C is a network extender.

The NITEK Etherstretch™ ET1543C IP cameras over Coax network extender Transmitter unit, is a network extender-PoE Inserter component. The ET1543C operates with either an ER8500C or ER16500C 8 or 16 Port IP Extender/Gigabit PoE Switch Receiver Unit, to form a multi-channel IP extender "over-coax" system. The System transmits IP cameras over coax and can quickly turn any ordinary RG59U coaxial cable into a high speed network communication & PoE path.

When operating over RG59U coaxial cable, the coax network extender system can operate for distances of up to 500 meters (1,640 feet). ET1543C Transmitter is part of a system that operates in conjunction with either a ER8500C Eight Port Receiver or ER16500C Sixteen Port Receiver (these receivers are sold separately).The ET1543C coax ethernet extender requires very little installation time & absolutely no set up or configuration. The ET1543C ethernet over coax network extender transmitter is transparent to the network and has no IP or MAC addressing.

Simply connect your network devices to the network port of the transmitter along with existing coaxial cabling and the system begins communicating. LED indicators show the status of network communication and PoE power.

Key features

  • Works w/ MC-500-R, MC-500-R8 or MC-500-R16
  • Media Converter Transmitter
  • IP over Coax cable
  • Supports any network device, including mega-pixel technology IP cameras
  • Easy to install, no set up required
  • LED indicators for network signals, link status and power
  • Optional power supply can insert PoE power for non-PoE switches
  • Surge protected inputs
  • Ground loop isolation

If you are matching this to an existing installation, work from the ET1543C part number rather than the description.

£ 242 30
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£242.30 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Nitek
Manufacturer Part Number
ET1543C
Product Type
Network Extender
General information
Maximum Transfer Distance
500m
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Environmental conditions
Operating Relative Humidity (H-H)
95%
Operating Temperature (T-T)
-40-75°C
Interfaces/ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Physical characteristics
Depth
127.00mm
Height
43.00mm
Material
Aluminum
Width
30.00mm
Power description
Input Voltage
12V DC
Power over Ethernet (PoE)
Yes
Miscellaneous
Compatibility
ER1500C, ER16500C, ER8500C
Environmental certification
RoHS
Environmental status
Yes
Attributes
Compatibility
ER1500C, ER16500C, ER8500C
Input Voltage
12V DC
Operating Relative Humidity (H-H)
95%
Specifications
General information
Certifications
Environmental conditions
Interfaces/ports
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name Nitek
Manufacturer Part Number ET1543C
Product Type Network Extender

General information

Maximum Transfer Distance 500m

Certifications

RoHS compliance Compliant
WEEE compliance Compliant

Environmental conditions

Operating Relative Humidity (H-H) 95%
Operating Temperature (T-T) -40-75°C

Interfaces/ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1

Physical characteristics

Depth 127.00mm
Height 43.00mm
Material Aluminum
Width 30.00mm

Power description

Input Voltage 12V DC
Power over Ethernet (PoE) Yes

Miscellaneous

Compatibility ER1500C, ER16500C, ER8500C
Environmental certification RoHS
Environmental status Yes

Attributes

Compatibility ER1500C, ER16500C, ER8500C
Input Voltage 12V DC
Operating Relative Humidity (H-H) 95%

Nitek ET1543C network extender

Nitek ET1543C network extender, Aluminum

Who this is for

For the installer — this is the network extender supplied under Nitek part number ET1543C. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a network extender made by Nitek. The part number ET1543C is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this network extender is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact network extender I have been quoted? Check the manufacturer part number ET1543C against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against ET1543C answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
