Adastra: 125.105UK, Premium KV-Series Ceiling Speakers, 5.25", 40W, 120° Dispersion
About this product
Premium KV-series Ceiling Speakers

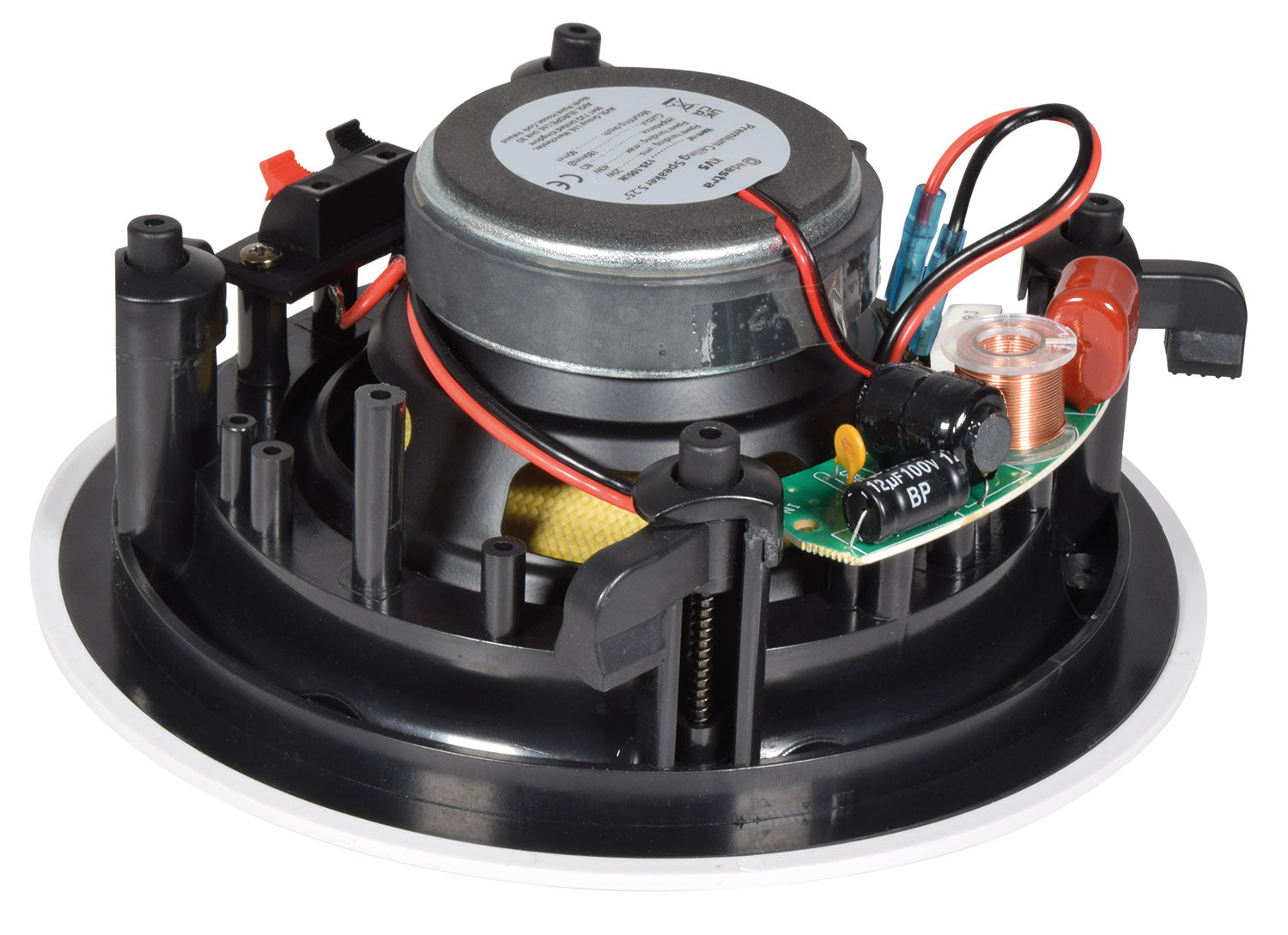

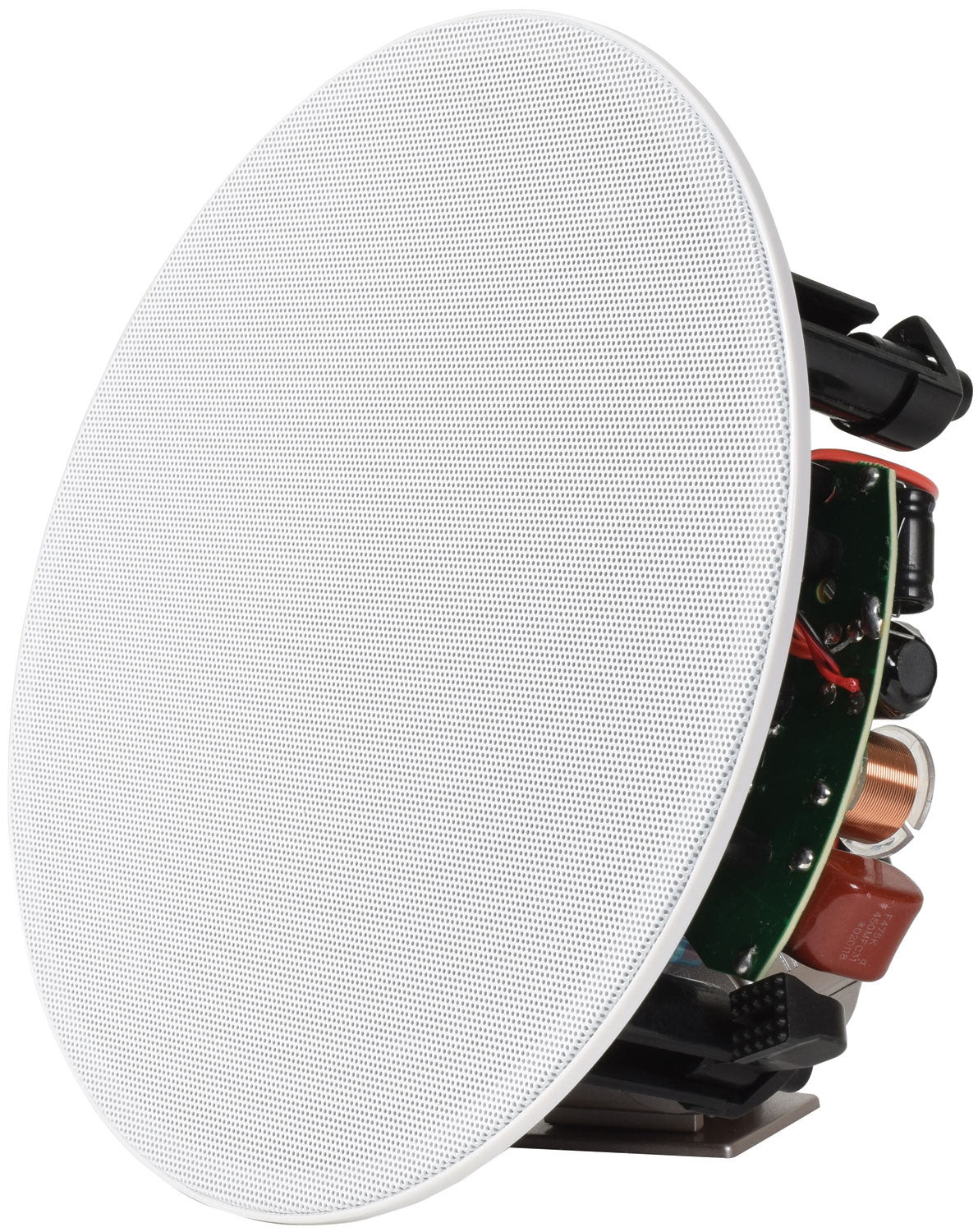

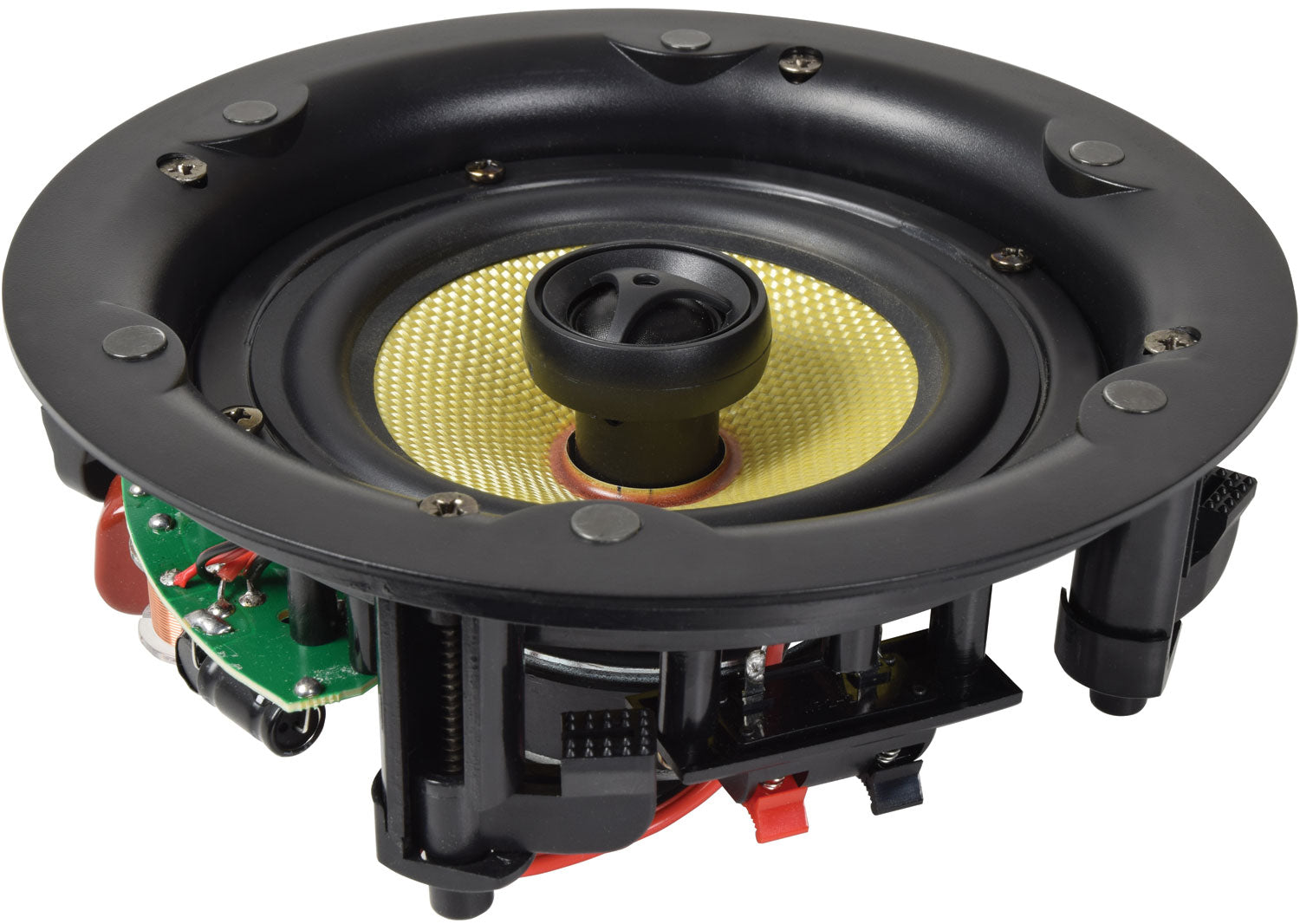

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.
- Full 2-way passive crossover

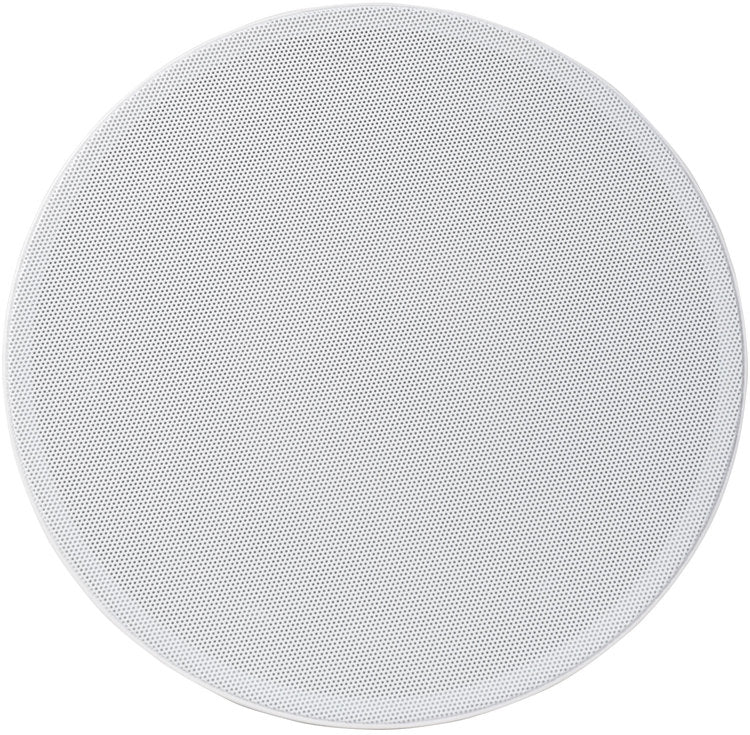

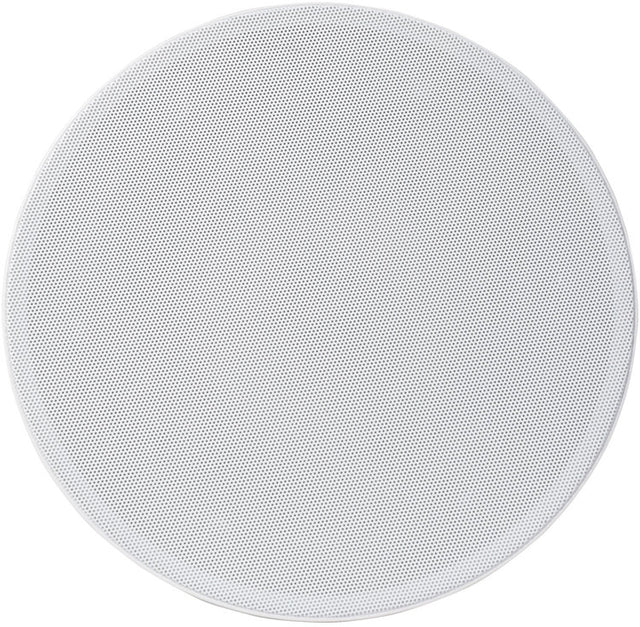

- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Braced ABS basket with integral wave guide
- Supplied individually
Specifications
Specifications
| Cutout Size | 180mmØ |
|---|---|
| Weight | 1.054 kg |
| Maximum SPL | 100 dB |
| HF Driver Size | 25mmØ (1") |
| Impedance | 8 Ohms |
| Main Driver Size | 135mmØ (5.25") |
| SPL @ 1W/1m | 89 dB |
| Construction Material | ABS basket & powder coated steel grille |
| Magnet Weight | 270 g |
| Mounting Depth | 80 mm |
| Dispersion Angle | 120° |
| Frequency Response | 80Hz - 20kHz |
| Max Power Handling | 40 W |
| RMS Power Handling | 20 W |
KV-series 5.25" Ceiling Speakers (40W) features
