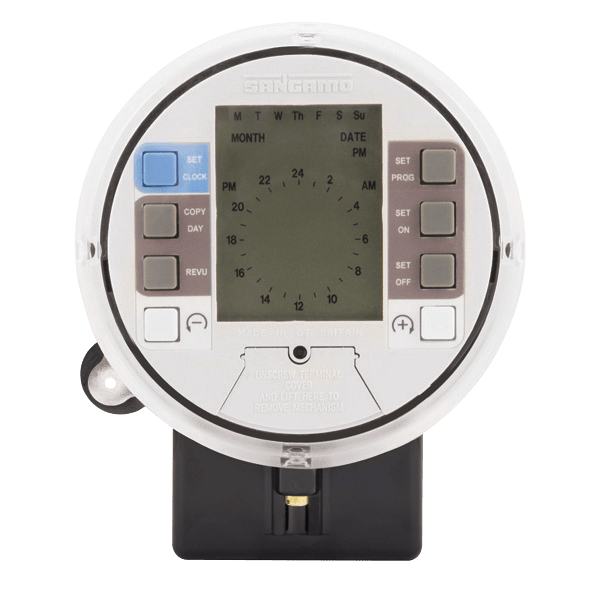

Sangamo E855 Digital 4 Pin Time Switch, 96 Operations
Free Delivery
£
258
64
(Incl. VAT)
5 Years Warranty
Digital 4 Pin Time Switch, 96 Operations
About this product
About this product
The Sangamo E855 is a Digital 4 Pin Time Switch, 96 Operations.
Key Features
- Holiday mode
- Auto BST/GMT changeover
- Temporary override (manual button)
- Genuine ESP time switch supplied by WME
- Backed by WME UK stock and trade support
-
Download
- E855 Tech Sheet
£
258
64
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
LCD
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Mounting
Surface Mounting
Relay Resistive Load Rating (A)
20
Base Type
4 pin
Warranty (Years)
5
Maximum Inductive Current Rating (A)
20
Schedule
7 Day Program
Maximum Incandescent, Halogen Lamp
1000
Summer/Winter Time Change
Yes (Automatic)
Maximum Fluorescent Lamp Load Rating
860
Supply Voltage (V AC)
230
Cable Size (mm²)
0.5 - 6
Power Reserve
20 Days
IEC Protection Class
Class II ( Functional and
Operating Temperature (°C)
0 to +50
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | LCD |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Mounting | Surface Mounting |
| Relay Resistive Load Rating (A) | 20 |
| Base Type | 4 pin |
| Warranty (Years) | 5 |
| Maximum Inductive Current Rating (A) | 20 |
| Schedule | 7 Day Program |
| Maximum Incandescent, Halogen Lamp | 1000 |
| Summer/Winter Time Change | Yes (Automatic) |
| Maximum Fluorescent Lamp Load Rating | 860 |
| Supply Voltage (V AC) | 230 |
| Cable Size (mm²) | 0.5 - 6 |
| Power Reserve | 20 Days |
| IEC Protection Class | Class II ( Functional and |
| Operating Temperature (°C) | 0 to +50 |
Digital 4 Pin Time Switch, 96 Operations features
Sangamo E855 Digital 4 Pin Time Switch, 96 Operations
