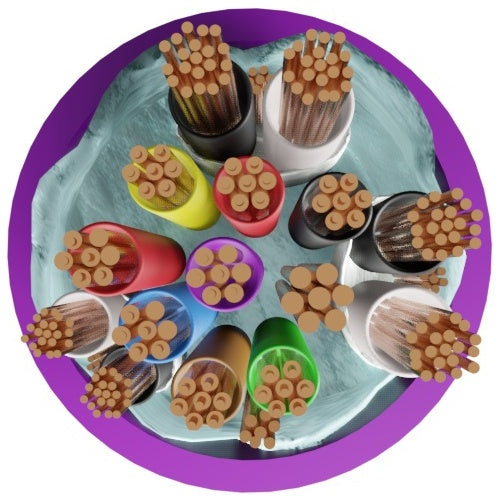

Securi-Flex SFX/ACCESS-1-LSZH-D-PUR-100 control cable, 100m
About this product
Securi-Flex SFX/ACCESS-1-LSZH-D-PUR-100 is a control cable.
Access control cable is used for RS232 applications. They are generally used for public properties such as government buildings and hospitals but can also be used in commercial properties.
Key features
- Designed for use within proprietary access systems for public buildings
- Construction; 9 cores and 3 pairs
- 1-Pair 20AWG with an overall foil screen
- 2-Pairs 22AWG with an individual foil screen for each pair
- (9) 22AWG Cores with an overall foil screen
- Sheath material; LSZH
- Colour; purple
If you are matching this to an existing installation, work from the SFX/ACCESS-1-LSZH-D-PUR-100 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Specifications
| Brand Name | Securi-Flex |
|---|---|
| Manufacturer Part Number | SFX/ACCESS-1-LSZH-D-PUR-100 |
| Product Type | Control Cable |
Technical information
| American Wire Gauge | 20AWG |
|---|---|
| Cable Type | Purple Pipe |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | Dca -s:2 -a:1 -d:2 |
| Number of Conductors | 15 |
| Number of Pairs | 3 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
Certifications
| CE marking | Yes |
|---|
Physical characteristics
| Cable Length | 100.00m |
|---|---|
| Colour | Purple |
| Jacket Material | LSZH |
