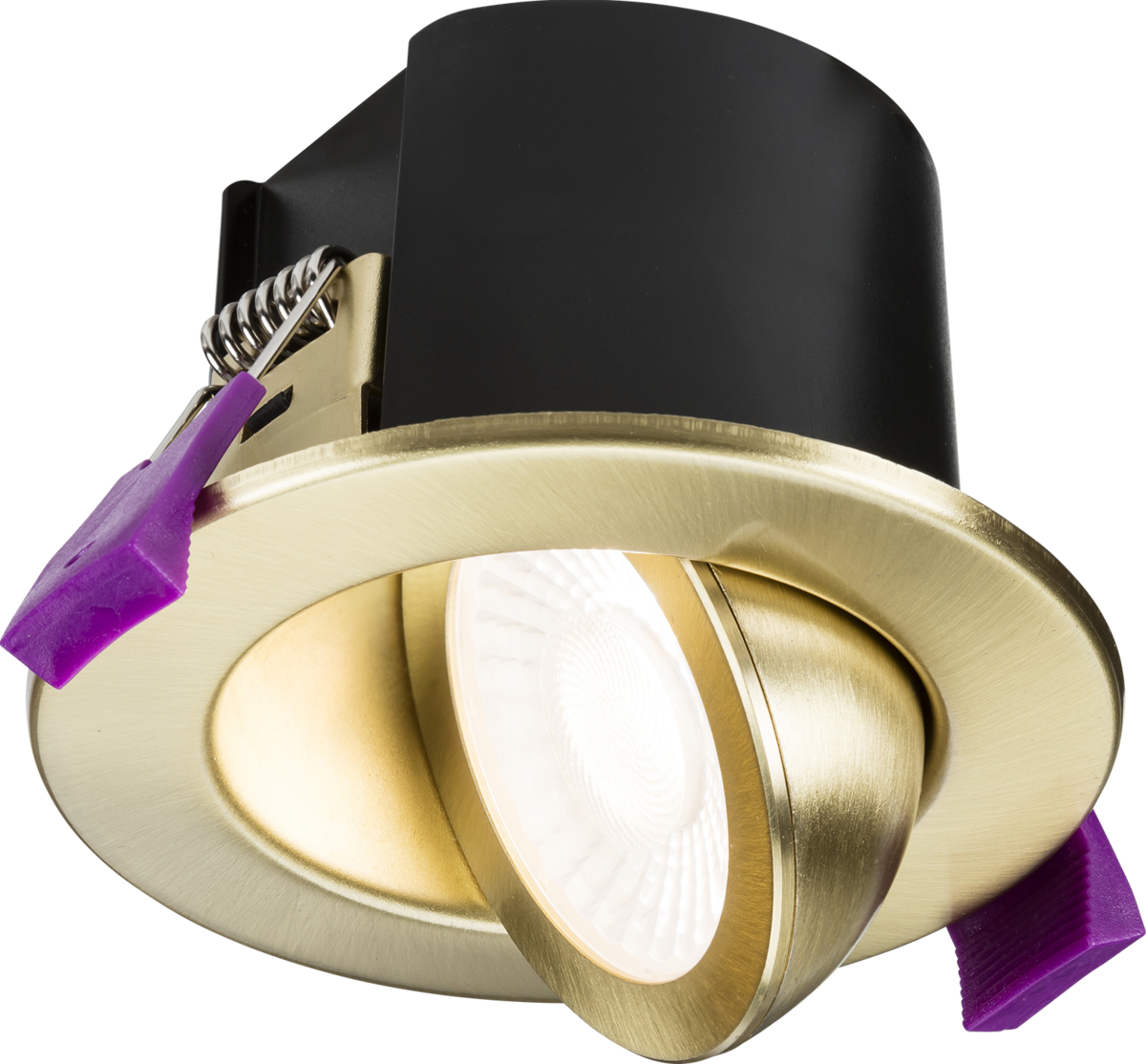

Knightsbridge: SPKEVTB, SpektroLED Evo Tilt Fire Rated Downlight, 5W/7W, 4 CCT, Brushed Brass, IP65
About this product
Introducing the latest evolution of the SpektroLED, a versatile fire-rated downlight designed with contractors and end users in mind. This IP65 Downlight features:
- Selectable wattages of 5W and 7W
- Four selectable colour temperatures (CCT): 2700K, 3000K, 4000K, and 6000K
- Complies with contemporary energy efficiency standards
- Fire-rated for 30/60/90 minutes in various materials
- IC rated for insulation contact
- Acoustic rated ISO 10140-2:2010
- 5-year warranty
- Dimmable with trailing-edge dimmers (compatibility recommended)
- IP65 rated, making it suitable for both dry and wet locations
- Finishes available in distinctive options: white, brushed chrome, polished chrome, brass and antique brass
Specifications
Dimensions
Lamp
Luminaire
Photometric
Specifications
| Class | II |
|---|---|
| Finish | Brushed Brass |
| IP Rating | IP65 (IP20 from above) |
| Construction | Pressed steel |
| Primary Voltage | 230V 50Hz |

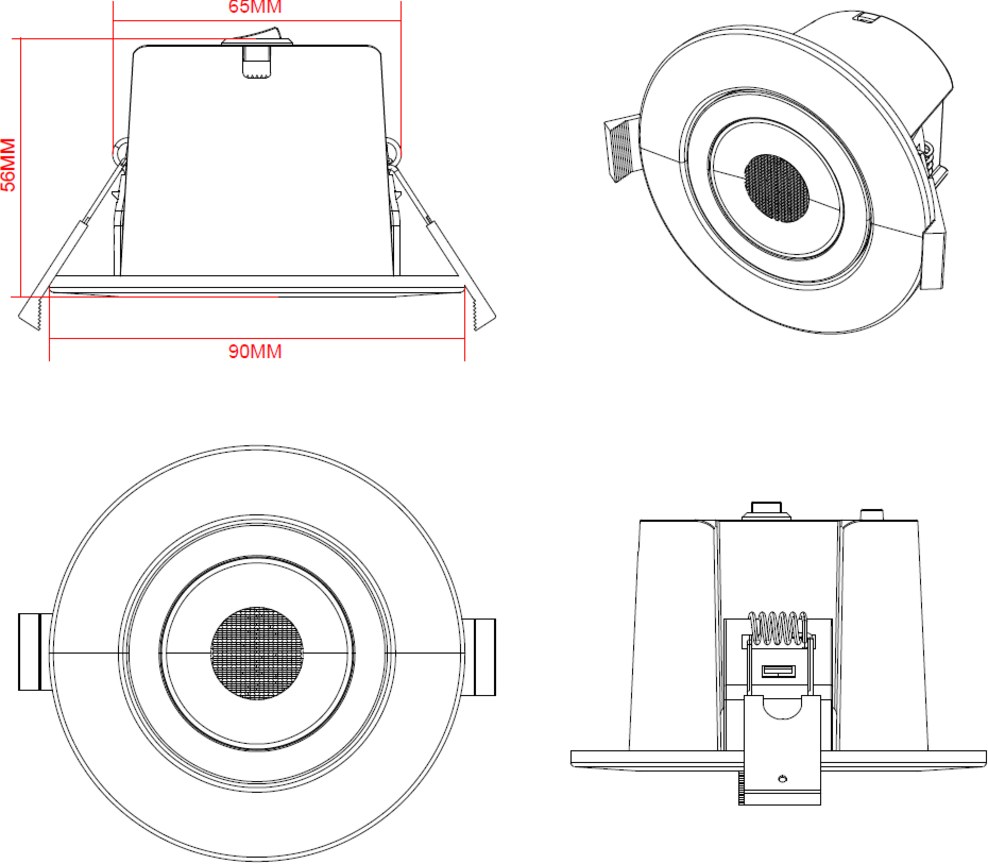

Dimensions
| Tilt | 90 ° |
|---|---|
| Diameter | 90 mm |
| Minimum Void | 56 mm |
| Recessed Depth | 56 mm |
| Cut-out Diameter | 70 mm |
Lamp
| L70B10 | 50,000 |
|---|---|
| Dimmable | Yes* |
| Beam Angle | 60 |
| Lamp Technology | SMD LED |
| Energy Rating (Class) post 2021 SLR | C |
Luminaire
| Diffuser | Prismatic |
|---|
Photometric
| CCT | 2700/3000/4000/6000 K |
|---|---|
| CRI | >80 |
| Lumens | 565/580/605/590, 745/865/825/778 lm |
| Wattage | 5/7 |
| Light Colour | CCT |
| Efficacy (Light source) | 142 lm/W |
| Lumens (Light source only) | 1000 lm |
SpektroLED Evo Brushed Brass Downlight features
