Here's the short answer: turn off the power at the consumer unit, take a photo of the existing wiring, then swap the new switch in terminal-for-terminal. For a like-for-like replacement — a plain switch for a plain switch — it's a genuinely simple job that takes about fifteen minutes. The golden rule is non-negotiable: isolate the circuit and prove it's dead before you touch a terminal.
Swapping a tired old light switch for a clean new one, or a plain switch for a dimmer, is one of the most satisfying small upgrades in a house. It's also one where a little care matters, because you're working on mains wiring. This guide keeps you safe and gets it right.
Fair warning up front: this covers a straightforward like-for-like swap. If you open the wall and find something that doesn't match this guide, we'll tell you exactly when to stop and call in a professional — that honesty is what fifty years on the Villa Road trade counter teaches you.
1. Safety First: Isolate and Prove Dead
This is the part you do not skip. Working on a live circuit is how people get hurt.
- Go to your consumer unit (fuse board) and switch off the breaker for the lighting circuit — or the main switch if you're not certain which one.
- Turn the light on at the switch you're replacing to confirm it's dead. It should stay off.
- Before touching any terminal, prove the wires are dead with a voltage tester or approved test screwdriver — don't just trust the light being off.
Trade tip: flip the switch on and off a few times before isolating, and note whether other lights share the circuit. If the whole upstairs goes dark when you kill one breaker, you've found your circuit — and you know exactly what to switch back on to test afterwards. A proper voltage tester is a few pounds well spent; we keep them on the counter and won't sell you a switch without asking if you've got one.
2. Off the Wall: Note Everything Before You Disconnect

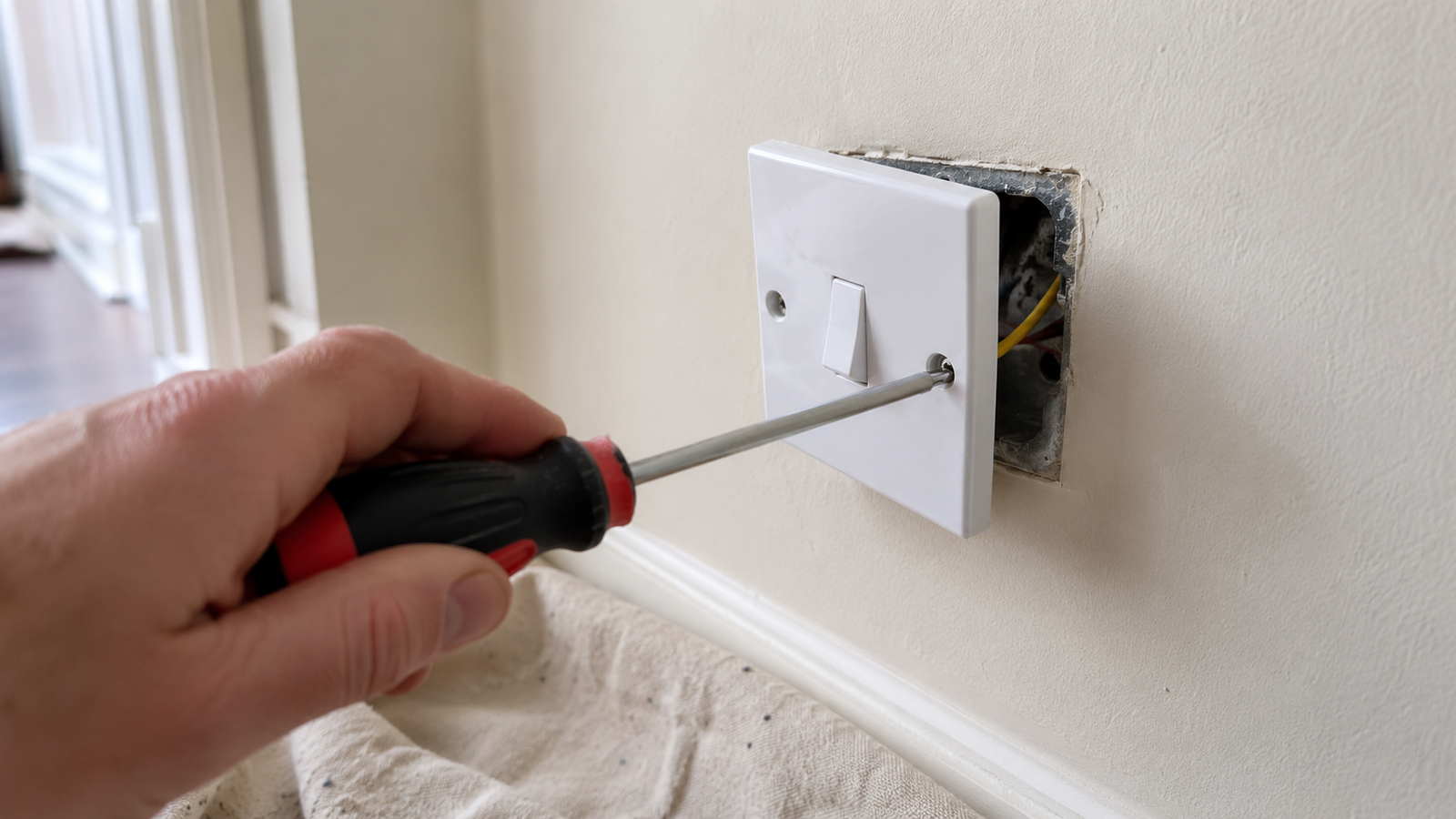

With the power proven dead, unscrew the faceplate and ease it forward. Now stop and take a photo — a clear one, before you disconnect anything.
You'll see terminals marked COM (or C), L1, and often L2. The photo is your map back: whatever comes off, you know exactly where it goes. This one habit turns "how did that go again?" into a thirty-second job.
Trade tip: the photo matters most on 2-way switches (the ones where a light is controlled from two places, like the top and bottom of stairs). These use the L2 terminal as well, and getting COM/L1/L2 muddled means the two switches fight each other. Photograph it, replicate it, done.
3. Swap the Switch: Terminal for Terminal
Loosen the terminal screws, release the wires, and transfer them one at a time to the same terminals on the new switch.
A 2-way switch like this is the sensible default even for a single-location light — it has COM, L1 and L2 terminals, so it covers both one-way and two-way wiring, and it's certified to EN 60669-1. Moving one wire at a time means you can't muddle them. Match the new switch to the old: 1-gang for one switch, 2-gang for two, and check it's the same type before you start.
Trade tip: if your existing switch has only two wires used (COM and L1) it's wired one-way — simple. If L2 is also in use, it's part of a 2-way pair; wire the new one identically and don't touch the switch at the other end. Changing both ends at once is how people create a puzzle they can't solve.
4. Reassemble, Restore, Test
Tighten every terminal firmly — a loose connection is the most common cause of a switch that buzzes or fails early — and give each wire a gentle tug to check it's held. Fold the wires neatly back into the box, offer the faceplate up, and screw it home without trapping a wire. Restore power at the consumer unit and test.
If it works first time, that's the job. If it doesn't, kill the power again and re-check against your photo before anything else.
5. When to Call an Electrician
Most switch swaps are fine as DIY. Stop and call a qualified electrician if:
- You open the box and the wiring doesn't match your photo or this guide — unexpected extra cables, unfamiliar colours, or a rats-nest of connections.
- There's no earth wire present and you're fitting a metal switch plate (metal plates need earthing).
- The cables are old, brittle, or the insulation is cracking — that's a sign the circuit needs professional attention, not just a new switch.
- You're doing anything beyond a like-for-like swap, or the work is in a bathroom (special zones, notifiable work).
There's no shame in it — knowing where DIY stops is the mark of doing it properly, not a failure.
Changing a Light Switch, Summarised
| Step | Action | Safety check |
|---|---|---|
| 1. Isolate | Switch off the lighting circuit at the consumer unit | Confirm the light won't turn on |
| 2. Prove dead | Test the wires with a voltage tester | Never trust the switch alone |
| 3. Record | Photograph the wiring before disconnecting | COM / L1 / L2 clearly visible |
| 4. Swap | Move wires one at a time to matching terminals | Tighten firmly; tug-test each |
| 5. Restore | Refit plate, power on, test | Re-check against photo if it fails |
Expert Help in the West Midlands
Bring your old switch in to our Villa Road trade counter in Birmingham and we'll match it exactly, make sure you've got a tester, and talk you through your specific wiring before you leave. Fifty years of "bring the old one in and we'll sort it" — there's a reason the region's electricians buy from us.
Frequently Asked Questions
Is it safe to change a light switch yourself?
For a like-for-like swap, yes — provided you isolate the circuit at the consumer unit and prove the wires are dead with a tester before touching any terminal. Anything beyond a simple swap, or any work in a bathroom, should go to a qualified electrician.
Do I need to turn off the electricity to change a light switch?
Always. Switch off the lighting circuit at the fuse board and confirm the wires are dead with a voltage tester — never rely on the switch being off alone.
What do COM, L1 and L2 mean on a light switch?
COM is common (the feed), L1 and L2 are the switched outputs. One-way switches use COM and L1; two-way switches use all three, which is how a single light is controlled from two places.
