Here is the short answer: a perimeter alarm tells you someone is in the garden, not already at the glass — and that early minute is the most valuable one in domestic security. Done properly it is two or three outdoor detectors covering the approaches, chosen and sited so foxes and washing lines don't wake you at 3am. Done badly, it is the reason people switch outdoor detection off within a month.
A standard alarm starts working when a door or window moves — by which point somebody is at the building. Perimeter protection moves the tripwire out into the garden, the driveway, the yard: the alert arrives while there is still a decision to make rather than a mess to inspect.
We have sold alarms from Villa Road since 1975, and outdoor detection used to be the flaky end of the trade. Modern dual-technology detectors changed that — provided you buy the right type and put it in the right place.
1. Why the perimeter minute matters
Count what happens in the minute before an attempted entry: the walk up the drive, the pause at the side gate, the try of the shed door. A perimeter detector turns that minute into your warning — sirens rising, lights on, a phone in someone's hand — which is precisely the minute most intruders decide the next garden along looks easier.
2. The detector types, honestly
- Outdoor PIR: detects body heat and movement across an area. Simple, effective — and the type most prone to wildlife false alarms if bought cheap.
- Dual-technology: pairs PIR with microwave sensing, and only alarms when both agree. This is the false-alarm fix, and it is what makes outdoor detection livable.
- Curtain detectors: project a narrow vertical plane rather than a wide fan — an invisible tripwire across a gate, a passage, a fence line. Nothing alarms until something crosses the plane.
The Ajax Curtain Outdoor is the textbook example: a wireless dual-tech curtain — PIR plus K-band — in an IP55 housing on standard CR123A batteries. Across a side gate or along the back fence line, it is the invisible tripwire done properly: the plane is crossed or it isn't.
The Ajax MotionCam Outdoor HighMount adds the feature that changes the 3am experience: photos with the alert. The detector fires, and the app shows you what fired it — person or fox — before anyone gets out of bed. For perimeter work, verification is not a luxury; it is what keeps the system switched on.
3. Placement that works
- Cover approaches, not boundaries. A detector watching every inch of fence alarms on every cat in the postcode. Watch the routes people must use: the drive, the side gate, the path to the back door.

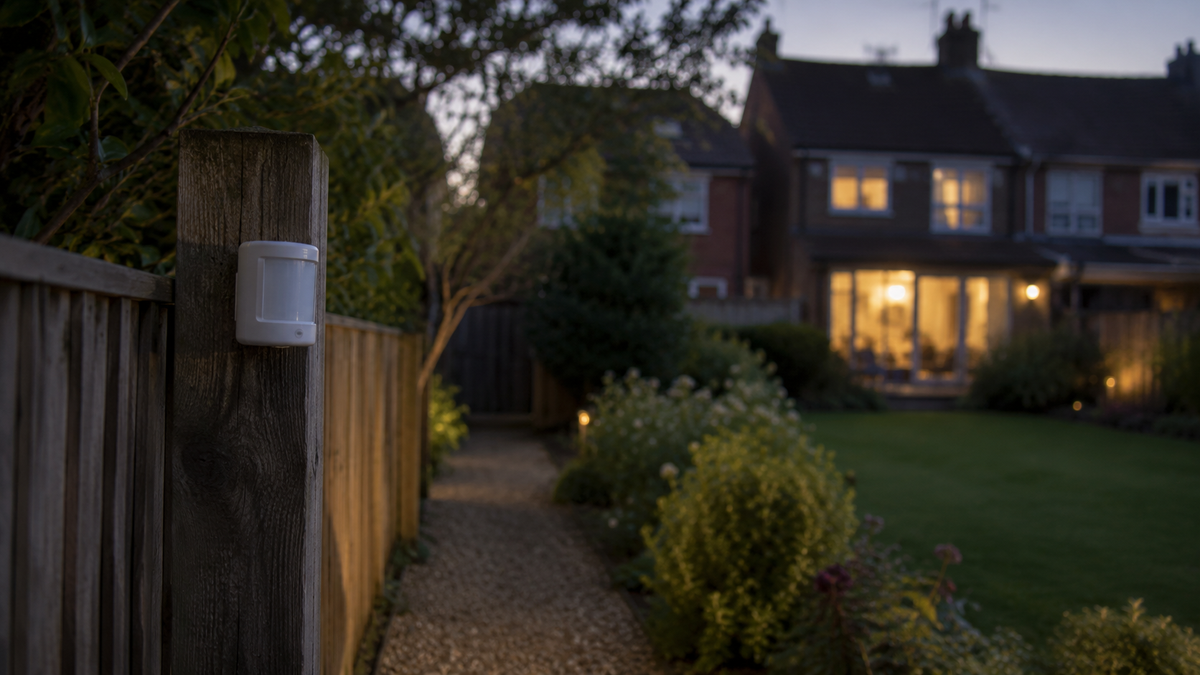

- Mount at the height the manual states, level and stable. Outdoor detection is fussier about mounting than indoor — a detector nodding on a loose fence panel is a false-alarm machine.
- Mind what moves. Washing lines, shrubs in wind, the flag, the trampoline. Aim past them or move them.
- Pair with light and camera. Detection plus a PIR floodlight plus a camera on the same approach is the combination that actually changes behaviour — our security lights guide covers the light half.
Trade tip: walk the routes yourself after dark, the way an intruder would — in over the low fence, along the dark side, pause at the shed. Everywhere you paused is a detector position.
4. Tying it into the alarm
Outdoor detectors are devices on your alarm, not a separate system — they enrol on the panel, and the panel decides what happens: chime when you are home, full response when you are away, outdoor siren, phones notified. The Ajax KIT2 S is the right starting panel: Hub 2 Plus, indoor sensors, sirens — add the outdoor devices to suit the property. One system, one app, and the perimeter arms separately from the house, which is exactly how night mode should work.
Remember the hard rule from every alarm article we write: wireless protocols do not mix between manufacturers. Decide the panel first, then buy detectors to match — the full grounding is in our ultimate guide to burglar alarms.
Perimeter Protection, Summarised
| Job | Tool | WME pick |
|---|---|---|
| Tripwire on a gate, passage or fence line | Dual-tech curtain detector | Ajax Curtain Outdoor |
| Watching an approach, with proof | Outdoor PIR with photo verification | MotionCam Outdoor HighMount |
| The panel it all reports to | Wireless alarm kit | Ajax KIT2 S |
Expert Help in the West Midlands
Villa Road, Birmingham, since 1975. Bring a photo of the garden or the yard and we will mark the two or three positions that cover the approaches — and we will tell you honestly when a £120 curtain detector on the side gate does more than £400 of extra cameras.
Browse Ajax alarm systems and burglar and intruder alarms. Get in touch for a spec.
Related reading: how to secure a garage door, securing a garden office, and PIR sensors explained.
Frequently Asked Questions
Do outdoor alarm sensors false alarm with pets and wildlife?
Cheap single-technology ones do, which is how outdoor detection got its old reputation. Dual-technology detectors — PIR and microwave agreeing before an alarm — plus sensible placement away from moving shrubs and washing lines is the difference between a system you trust and one you switch off.
What is a curtain motion detector?
A detector that projects a narrow vertical plane instead of a wide fan — an invisible tripwire. Nothing alarms until something crosses the plane, which makes it ideal across gates, passages and fence lines where you want a line, not an area.
Can I add perimeter detection to an existing alarm?
Yes, if the outdoor detectors speak your panel's protocol — which in practice means buying the same manufacturer as the panel. If the house system is old or closed, a modern wireless kit with outdoor devices is often cheaper than fighting it.
