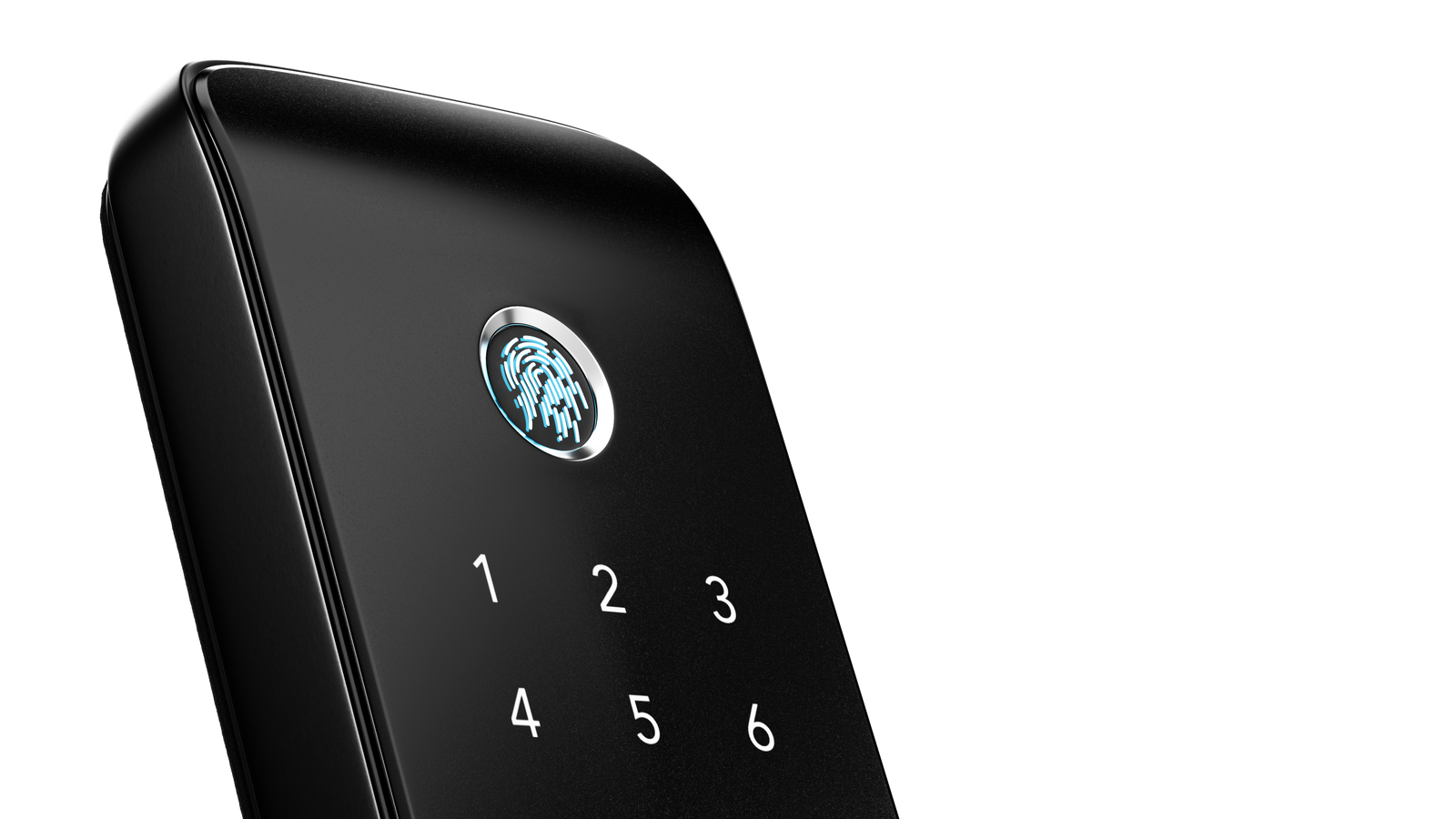

Learn how to install, set up and use your WME DL2 Smart Lock in just a few minutes. This step-by-step guide walks you through everything you need — from mounting the lock to creating PINs, pairing cards and keeping your door secure. Perfect for new users, hosts, landlords and homeowners.
Before You Begin
- Do not leave the mechanical key inside the lock (it may get stuck).
- Replace batteries when the low-battery alarm sounds.
- Read all steps before starting.
- Works on wooden and aluminium doors (35–65mm thick).
- Supports WiFi, PIN, card, fingerprint (optional), and mechanical key access.
1. What’s in the Box?
2. Installation Guide
Tools Needed for Installation
- Drill
- Screwdriver
- Measuring tape
How to Install on a Right-Handed Door
Step 1 — Fit Rubber Plate & Strike Box
- Place the waterproof rubber plate on the outside of the door.
- Position and attach the strike box and strike plate.
Step 2 — Fit the Front Panel
- Use the provided template and drill holes.
- Mount the front panel.
Step 3 — Insert Screw Casing
- Feed the cable from front panel through the screw casing hole.
Step 4 — Remove Battery Cover
- Remove the battery cover from the back panel.
Step 5 — Attach Back Panel & Install Batteries
- Fit the back panel, connect the cable, and insert four AA batteries.
Step 6 — Secure with Fixing Screws
- Tighten all screws to complete installation.
How to Install on a Left-Handed Door
Step 1 — Fit Rubber Plate & Strike Box
- Place the waterproof rubber plate on the outside of the door.
- Position and attach the strike box and strike plate.
Step 2 — Fit the Front Panel
- Use the provided template and drill holes.
- Mount the front panel.
Step 3 — Insert Screw Casing
- Feed the cable from front panel through the screw casing hole.
Step 4 — Remove Battery Cover
- Remove the battery cover from the back panel.
Step 5 — Attach Back Panel & Install Batteries
- Fit the back panel, connect the cable, and insert four AA batteries.
Step 6 — Secure with Fixing Screws
- Tighten all screws to complete installation.
3. Initial Setup & Programming
- Reset the Lock (Factory Initialisation)
- Remove back panel cover.
- Hold RESET button.
- Insert batteries while holding RESET.
- Release after 6 seconds.
- Lock resets → master password becomes 123456.
First-Time Use (Trial Mode)
- Any fingerprint works
- Master PIN = 123456#
- After testing, set a secure admin PIN.
Setting the Date & Time
1. Wake the Lock
- Touch the keypad to light up the screen.
2. Enter the Admin Menu
- Enter your admin PIN, then press #
- Example: 123456# (if you haven’t changed it yet)
3. Open the Date & Time Settings
- Press 2 to enter the System Settings menu (you’ll hear a list of options).
- When you hear the option for “Set date and time”, press 1.
4. Enter the Current Date & Time
- Type the full date and time in this order:
YYMMDDHHMM#
- Where:
YY = year (e.g. 25)
MM = month (01–12)
DD = day (01–31)
HH = hour in 24-hour format (00–23)
MM = minutes (00–59)
💡 Example:
If the current date and time is 15 March 2025, 14:30, you would enter:
2503151430#
5. Wait for Confirmation
- After you press #, the lock will say:
“Operation successful” (or similar confirmation).
Adding Users (PIN, Fingerprint, Card)
Enter Admin Menu
- Touch keypad to wake.
- Enter admin password + #.
Add a User
Menu path:
1 – User Management → 1 Add Admin OR 2 Add User → Choose Method:
- Fingerprint
- Card
- PIN Code
Each user is assigned a number 1–300.
4. Wi-Fi & App Setup
Step 1 — Download the App
- Search Smart Life on iOS/Android OR scan QR code (see above image)
Step 2 — Create / Log In to Account
You can register using:
- Mobile number
- Email address
Step 3 — Put Lock in Wi-Fi Pairing Mode
- Press 8 + #
- Authenticate as admin
- Number “5” on keypad will flash
Step 4 — Add Lock in App
- Tap + Add Device
- Select RO2-WiFi Lock
- Connect to 2.4GHz Wi-Fi
- Wait for voice confirmation: “Operation successful”
5. Temporary & Remote Unlock Options
A. Temporary Passwords
- Generate in app
- Press 5 + # on lock
- Enter temporary code
B. Remote Unlock
- Press # on the lock to ring doorbell
- App receives a request
- Tap Confirm to unlock remotely
C. Dynamic Password
- Valid for 5 minutes
- If not working → press 6# to update lock time
Auto-Lock & Passage Mode
Enable Passage Mode (Door Stays Unlocked)
- Unlock the door
- Touch 0 for 3 seconds
Enable Auto-Lock Timer
After unlocking, touch:
- 1 = 5 sec
- 2 = 10 sec
- 3 = 15 sec
- 4 = 20 sec
6. Alarms
The app will notify you for:
- Doorbell press
- Hijack alarm
- General alarm events
How to Use the Emergency Access Key
If your batteries have died or you need to use your physical backup key, follow these simple steps:
Step-by-Step Instructions:
1. Locate the Panel: Find the panel located directly to the left of the WME logo.
Note: If you have the Gold version, this is the gold-colored panel.
2. Press Firmly: Press down firmly on this panel.
3. Access the Key: The cover will pop open, revealing the hidden keyhole.
Quick Tips:
- Always keep your physical backup key in a secure location outside of your home (like a car or office).
- If the panel feels stiff, ensure you are pressing directly in the center of the left section.
7. FAQ
Watch the Complete Full User Guide below
See full PDF set up guide below:
