Access Control Accessories

A button on the secure side of a door that tells the access controller to release the lock, so people can leave without a credential. There are push buttons such as the ESP EVEXITM mushroom button, touch-free sensors such as the RGL EBNT-TF-1 and ESP EVEXITC, and large DDA push plates such as the RGL EBLPP04 for people who find a small button hard to press.

They include the ESP EVTR and EVTRT. The EVTR is a trades entry button in stainless steel, coloured silver, and the EVTRT is a trades button with timer, a push button with a retractable switch and clear wording on a single gang fascia, with a surface mount box and security screws.

A paddle handle is an alternative to a knob or lever handle that opens a latched door with a simple push or pull. The Adams Rite 4596 paddle handles, such as the 4596-02-01-628 and 4596-03-01-628, are designed for aluminium doors and come in push and pull variants for left and right hand openings. The Adams Rite 45910401628 is a 4591 deadlatch paddle, an ergonomically friendly alternative to a knob or lever handle.

The ones on the same frequency and technology as the reader. 125 kHz readers take proximity fobs and cards such as the CDVI KTAG and Vanderbilt EM10T3, while 13.56 MHz MIFARE readers take credentials such as the Hikvision DS-K7M102-M and DS-PT-M1 fobs, and DESFire EV2 readers the Hikvision DS-K7M106-D0E card. The CDVI S280-MI carries both technologies for mixed sites.

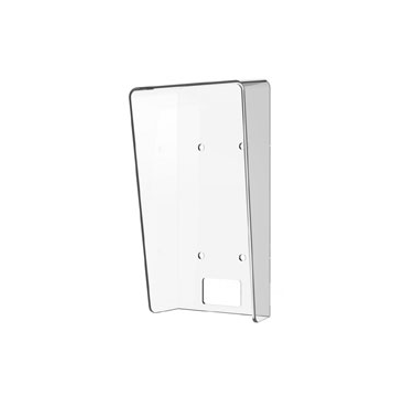

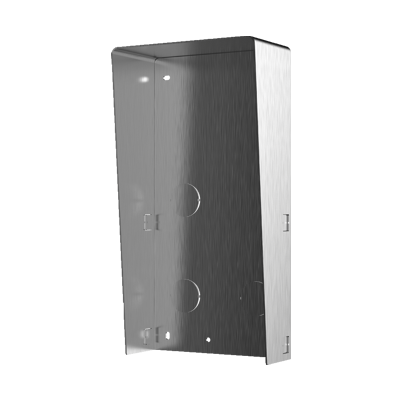

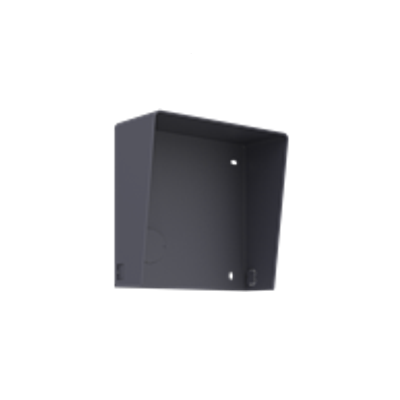

Yes, usually with a rain shield over it. Hikvision makes shields for its terminals, such as the DS-KAB671-S for DS-K1T671 face terminals, the DS-KAB34X-S1 for DS-K1T341A/C and DS-K1T342 terminals and the DS-KAB805-S1 for the DS-K1T805, and for door stations, such as the DS-KABD8003-RS1/S and DS-KABV8113-RS/SURFACE. Check the IP rating of the device itself as well.

A surface back box sized for the button plate, where the wall cannot be chased. RGL PBB02 boxes are 28mm deep and PBB05 boxes 40mm, for 85×85mm stainless plates, the shrouded PBBSHR boxes add a shroud around the plate, and the SSBB02 is a stainless steel box 42mm deep. Deeper boxes leave room for conduit entry and cable.

Yes. The Hikvision DS-K7R01-433 and DS-K7R01-868 keyfob remotes trigger Hikvision turnstiles and speed gates, pairing one-to-one or one-to-many with up to 6 lanes, and the DS-K7R83X is a 7-inch touch remote control pad for a reception desk or security room. The DS-K7R83X runs on PoE or 12 V DC.

A strike lock that stays locked when power is lost and releases when power is applied, so the door stays secure through a power cut. The Aperta A1SL flush strike lock, for Yale-type rim locks, and the A1SLS surface strike lock are both fail secure, and the A1SLS runs on 12V DC. Pair a fail-secure strike with a handle or thumb-turn for exit.

In a lockable enclosure near the door or in a comms room. The Kantech KT-1-CAB-M is a metal cabinet for the KT-1 single door controller, the Comelit PAC 10031 and 10032 are lockable DIN-rail cabinets for iPAC controllers, and the Acre ACCESS-UL-PSU6-ENC houses up to 12 small or 6 mid-sized controllers with a lock and tamper switch.

With a status indicator driven by the lock. The STP STP-TLM200 is a surface traffic light with separate red and green LEDs that show whether the door is locked or unlocked, and it needs a control signal from the lock to change. It has a metal faceplate and back box for surface mounting.
