Aperta A1EXIT Flush Exit Button
£
18
65
(Incl. VAT)
2 Years Warranty
Flush Exit Button
About this product
About this product

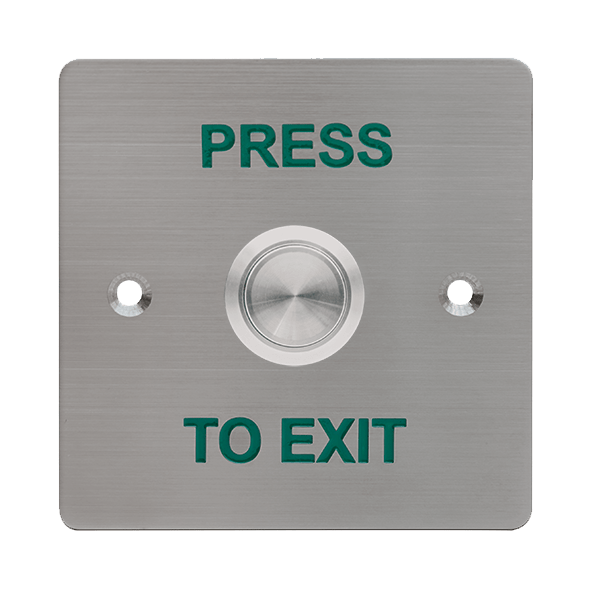

The Aperta A1EXIT, from ESP's Access Control range, is a flush push to exit release button in brushed stainless steel, with the clear wording “Press to Exit” and 2 outputs.
Key features
- Push to exit release button with clear wording “Press to Exit”
- Stainless steel, brushed steel finish
- 2 outputs: 2 x SPST (normally open & normally closed)
- Output relay rating 3A @125-250V AC
- Surface or flush mounting (backbox not included)
- Mechanical life 50000 hours
Frequently asked questions
What wording is on the A1EXIT?
“Press to Exit”.
Is a backbox included?
No. It mounts on the surface or flush, and the backbox is not included.
What are its contacts?
2 outputs: 2 x SPST, normally open & normally closed, rated 3A @125-250V AC.
How big is it?
86 x 86 x 22 mm.
-
Download
- A1EXIT Tech Sheet
£
18
65
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86 x 22
Number of Outputs
2
Finish
Brushed Steel
Relay Voltage - Minimum (AC)
125
Clear Wording
"Press to Exit"
Relay Voltage - Maximum (AC)
250
Materials
Stainless Steel
Relay Resistive Load Rating (A)
3
Mounting
Surface or Flush (Backbox not included)
Warranty (Years)
2
Life (Hours)
50000
Operating Temperature (°C)
-20 to +55
Relative Humidity Resistance (%)
0 to 95
Relay/Contact Type
2 x SPST (Normally Open & Normally Closed)
Output Relay Rating
3A @125-250V AC
Dimensions
Dimensions (mm)
86 x 86 x 22
Specifications
| Dimensions (mm) | 86 x 86 x 22 |
|---|---|
| Number of Outputs | 2 |
| Finish | Brushed Steel |
| Relay Voltage - Minimum (AC) | 125 |
| Clear Wording | "Press to Exit" |
| Relay Voltage - Maximum (AC) | 250 |
| Materials | Stainless Steel |
| Relay Resistive Load Rating (A) | 3 |
| Mounting | Surface or Flush (Backbox not included) |
| Warranty (Years) | 2 |
| Life (Hours) | 50000 |
| Operating Temperature (°C) | -20 to +55 |
| Relative Humidity Resistance (%) | 0 to 95 |
| Relay/Contact Type | 2 x SPST (Normally Open & Normally Closed) |
| Output Relay Rating | 3A @125-250V AC |
Dimensions
| Dimensions (mm) | 86 x 86 x 22 |
|---|
