Aperta EVEBGEXT2 Callpoint DPDT IP67 Green
£
88
13
(Incl. VAT)
2 Years Warranty
Callpoint DPDT IP67 Green
About this product
About this product

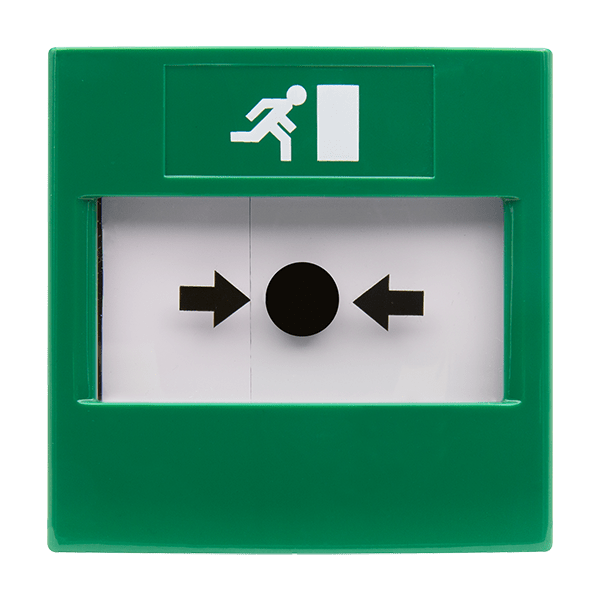

The Aperta EVEBGEXT2, from ESP's Access Control range, is a green IP67 surface emergency resettable call point for releasing the door, with a double pole double throw (DPDT) clean contact output and an output relay resistive load rating of 3A.
Key features
- Emergency resettable call point; emergency break glass to release door
- Double pole double throw; clean contact output
- Output relay resistive load rating 3A; 12 to 24V DC & 125 to 250V AC
- IP67 rated weather resistant external lock
- Surface mounted only; 3 x 20mm threaded entries
- 89 x 89 x 72 mm, green polycarbonate
Frequently asked questions
What does the EVEBGEXT2 do?
It is an emergency resettable call point: an emergency break glass to release the door.
What contacts does it have?
Double pole double throw (DPDT), with a clean contact output.
What is its relay rating?
An output relay resistive load rating of 3A, at 12 to 24V DC or 125 to 250V AC.
Is there a spare-key accessory?
Yes: the EVEBGEXT2KEY, spare keys in a pack of 10.
How is it mounted?
Surface only, with 3 x 20mm threaded entries.
-
Download
- EVEBGEXT2 Tech Sheet
£
88
13
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
89 x 89 x 72
Maximum Cable Size (mm²)
2.5
Colour
Green
Relay Voltage - Minimum (AC)
125
Materials
Polycarbonate
Relay Voltage - Maximum (AC)
250
Mounting
Surface Only
Relay Voltage - Minimum (DC)
12
Weight (Kg)
0.282
Relay Voltage - Maximum (DC)
24
Warranty (Years)
2
Relay Resistive Load Rating (A)
3
Operating Temperature (°C)
-25 to +65
Ingress Protection
IP67
Relay/Contact Type
Double Pole Double Throw
Output Type
Clean Contact
Features
3 x 20mm Threaded Entries
Accessories
EVEBGEXT2KEY: Spare keys (pack of 10)
Dimensions
Dimensions (mm)
89 x 89 x 72
Specifications
| Dimensions (mm) | 89 x 89 x 72 |
|---|---|
| Maximum Cable Size (mm²) | 2.5 |
| Colour | Green |
| Relay Voltage - Minimum (AC) | 125 |
| Materials | Polycarbonate |
| Relay Voltage - Maximum (AC) | 250 |
| Mounting | Surface Only |
| Relay Voltage - Minimum (DC) | 12 |
| Weight (Kg) | 0.282 |
| Relay Voltage - Maximum (DC) | 24 |
| Warranty (Years) | 2 |
| Relay Resistive Load Rating (A) | 3 |
| Operating Temperature (°C) | -25 to +65 |
| Ingress Protection | IP67 |
| Relay/Contact Type | Double Pole Double Throw |
| Output Type | Clean Contact |
| Features | 3 x 20mm Threaded Entries |
| Accessories | EVEBGEXT2KEY: Spare keys (pack of 10) |
Dimensions
| Dimensions (mm) | 89 x 89 x 72 |
|---|
Callpoint DPDT IP67 Green features
Aperta EVEBGEXT2 Callpoint DPDT IP67 Green
