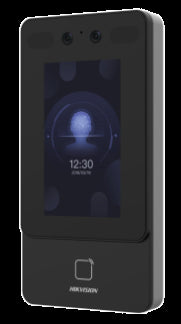

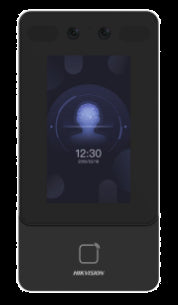

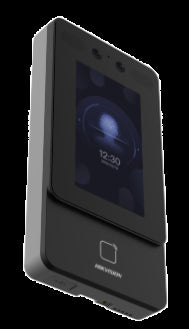

Hikvision Face Recognition Terminal (DS-K1T342MWX-E1)
The Hikvision Face Recognition Terminal is a state-of-the-art device designed for secure access control and monitoring. Here are its key features:
- Max. 1500 face capacity and Max. 3000 card capacity.
- Equipped with a 4.3-inch LCD touch screen and a 2 Mega pixel wide-angle lens.
- Supports two-way audio communication with client software.
- Connects via TCP/IP and Wi-Fi for flexible installation.
- Face recognition accuracy of ≥ 99% with a maximum recognition distance of 1.5 m.
- Power supplied via PoE with additional power for door locks (12 VDC/1A).
Perfect for various environments including enterprises, financial institutions, and high-security buildings.
-
Download
- DS-K1T342MWX-E1
Specifications
Dimensions
Technical-features
Connectivity
Specifications
ITM No. | ITM003723 |
---|---|
Manufacturer | Hikvision |
Type of Product | Access Control Terminal |
Face Recognition Capacity | 1500 Faces |
Card Capacity | 3000 Cards |
Display | 4.3-inch LCD |
Resolution | 272 x 480 |
Power Supply | PoE / 12 VDC/1 A |
Working Temperature | -30 to 60 °C |
Weight | 0.36 kg |
Dimensions
Dimensions | 91.3 mm x 181.3 mm x 24.5 mm |
---|
Technical-features
Face Recognition Distance | 0.3 to 1.5 m |
---|---|
Recognition Duration | < 0.2 s/User |
Audio | Two-way Audio |
Accuracy Rate | ≥ 99% |
Mask Detection | Supports |
Connectivity
Network | TCP/IP, Wi-Fi |
---|---|
Web Configuration | Supported |
Hikvision Face Recognition Terminal (DS-K1T342MWX-E1) features

Face Recognition Terminal, 2 Mega Pixel, 4.3-inch LCD Touch Screen, Access Control Terminal, 1500 Faces, UK Supplier, DS-K1T342MWX-E1
