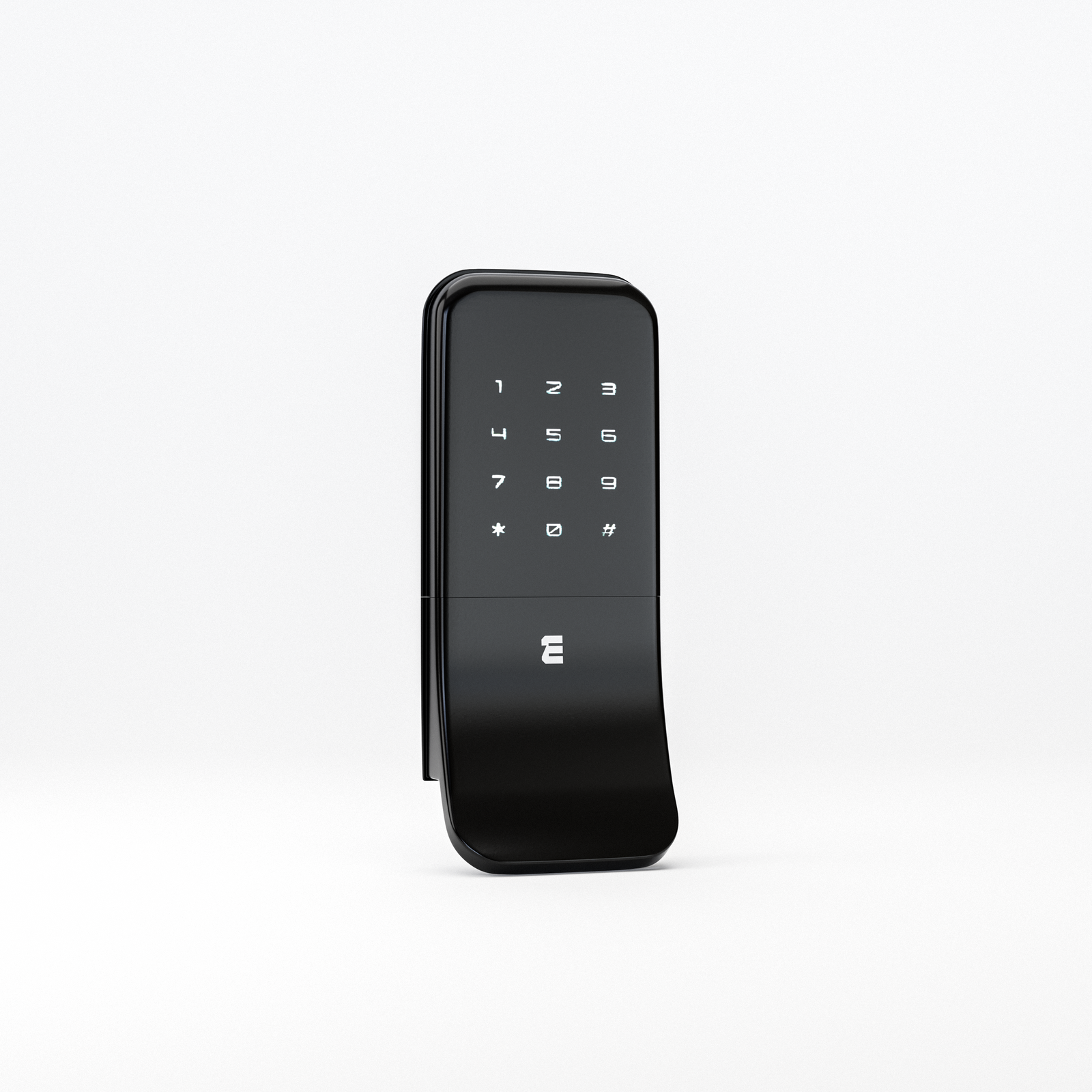

WME DL1 Smart Lock — Setup & User Guide

Learn how to install, set up and use your WME DL1 Smart Lock in just a few minutes. This step-by-step guide walks you through everything you need — from mounting the lock to creating PINs, pairing cards and keeping your door secure. Perfect for new users, hosts, landlords and homeowners.

DL1 Drilling Instructions

DL1 Smart Lock – Simple Step-by-Step Instructions

A. Before You Start

Make sure the lock is fitted to the door correctly (front body outside, back body inside).
Keep at least one mechanical key somewhere safe (car, trusted neighbour, etc.) in case of emergency.

B. Install / Replace the Batteries

On the indoor unit (back body), loosen the screw on the battery cover. The screw is captive, so it won’t fall out.
Remove the battery cover.
Insert 4 × AA batteries, following the + / – markings.
Refit the cover and tighten the screw.

Tip: When batteries run low the lock will warn you – replace all 4 at the same time for best performance.

C. Factory Reset (First-Time Use or Taking Over a Property)

Resetting returns the lock to factory settings and wipes all users.

Make sure the door is open.
Use a small stick/pin to press and hold the RESET button on the inside unit.
Keep holding until you hear the second beep (or the voice message on DL1 Pro / DL1 Pro Wi-Fi).
Release the button, Key in # – the lock has now been reset.

After a reset:

All fingerprints, cards, PIN codes and remotes are deleted.
Master code is restored to 1234.
Any fingerprint or card will open the door until you register proper masters.
Change the master code as soon as possible for security.

D. Change the Master Code (Do This Straight After Reset)

Touch the keypad to wake up the lock.
Enter * 0 # to enter function mode (or press reset button).
Enter the current master code (default 1234) +followed by #.
Enter function code 10 # (Change Master).
Enter your new master code followed by #.
Re-enter the same new master code followed by # to confirm.

Your new master PIN is now set.

E. Register a Master Fingerprint / Card / Code

You can have up to 5 master users (ID 1–5).

Touch keypad to wake the lock.
Enter * 0 # to enter function mode.
Enter your master fingerprint/card/code followed by #.
Enter 11 followed by # to register a new master.
When prompted, present either:

A fingerprint – place and lift the same finger 4 times,
Or a card / fob,
Or enter a PIN code.

The lock will assign an ID between 1 and 5 and confirm the registration.

Advanced: Use 111–115 if you want to register a specific master ID; 121–125 to delete a specific master.

F. Add Normal Users (PIN, Fingerprint or Card)

Touch the keypad to wake the lock.
Enter * 0 # to start user registration mode (or press reset button).
Verify a master using fingerprint / card / code + #.

You can now add different user types:

1. Add a User PIN Code

Enter the new user code followed by #.
Re-enter the same code followed by # to confirm.

2. Add a User Fingerprint

Place the new user’s finger on the sensor and lift/re-place it 4 times until the lock confirms.

3. Add a User Card

Present the new card / fob to the reader until the lock beeps/acknowledges.

The lock can store up to 95 user IDs depending on model (mix of fingerprints, cards and codes).

Advanced: use function codes 211–2195 to register a specific user ID, 221–2295 to delete a specific user ID later.

G. Locking the Door

The DL1 supports automatic and manual locking.

1. Auto Lock Mode

If Auto Lock is enabled, the lock will automatically lock when the door closes. If the door is not fully shut, it will beep for up to 100 seconds as a reminder.

2. Manual Lock Mode

With the door closed you can either:

Turn the indoor knob to lock the door
Enter **
Press the Lock/Unlock button on the front to lock.

H. Function Codes

Touch keypad to wake.
Enter * 0 #.
Enter master code followed by #.
Use these function codes:

821 # - High volume
822 # - Low volume
832 # - Set audio to English
95 # - Check battery status
10 # - Change master (fingerprint/card/code)
11 # - Register master (fingerprint/card/code)
111-115 # - Register specific ID master (ID:1-5)
121-125 # - Delete specific ID master (ID: 1-5)
211-2195 # - Register specific ID user(iD: 1-95)
221-2295 # - Delete specific ID user(iD: 1-95)

I. Emergency & Safety Features

1. Manual Key Override

If no credentials work or electronics fail:

Press the small button at the bottom of the outside unit and pull off the cylinder cover.
Insert your mechanical key and unlock manually.

2. Emergency Power Bank Supply

If the batteries are totally flat:

Press the button at the bottom of the front lock and remove the cylinder cover.
Connect a power bank to the USB-C port.
Use your usual fingerprint / card / code to unlock.

3. Wrong-Try Alarm & Lock-Out

If the wrong code/fingerprint/card is tried 5 times in a row:

The lock will sound an alarm.
All operation is locked out for 3 minutes (screen shows 3, then 2, etc. as it counts down).
