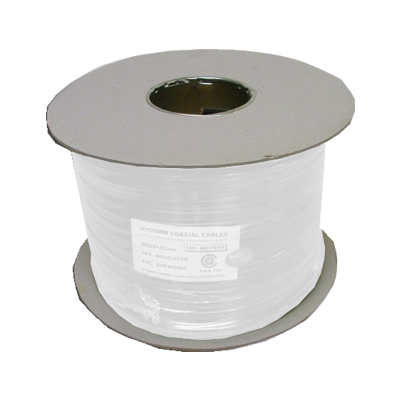

RG59 Shotgun CCTV Cable with 2x0.5 mm² Power Cores, PVC White, 100 m SFX/59+2C-0.5-PVC-WHT-100
Quality CCTV
£
55
76
(Incl. VAT)
RRP: £59.90
White RG59 & 2 Core Power Cable, 100M
About this product
About this product
Overview: The 100M White RG59 & 2 Core Power Cable is perfect for various CCTV installation scenarios, providing high-quality transmission for video and power.
- Roll Length: 100M
- Inner Conductor: Copper Clad Steel for RG59
- Power Cores: 2 x Bare Copper Cores with Red and Black Insulation
- Braid Construction: Copper Clad Aluminium
- Jacket Colour: White RAL 9003
- Impedance: 75Ω ± 3Ω
-
Download
- Shotgun spec
£
55
76
RRP: £59.90
Save £4.14
Price
Technical Details
Specifications
Colour
White
Cable Construction
RG59 2 x Power Cores
Inner Conductor
Copper Clad Steel Bare Copper
Conductor Diameter (mm)
0.58 ±0.008 0.20 ±0.01 x 16
Insulation
Solid PE PVC
Insulation Thickness (mm)
1.60 ±0.01 0.42 ±0.03
Insulation Diameter (mm)
3.70 ±0.10 1.70 ±0.03
Insulation Colour
Clear Red,Black
Braid
Copper Clad Aluminium
Braid Construction
0.12 ±0.008 x 16 x 7
Jacket
PVC PVC
Jacket Thickness (mm)
0.85 ±0.10 0.50 ±0.10
Overall Diameter (mm)
6.10 ±0.10 4.10 ±0.10
Jacket Colour
Black RAL 9005 Black RAL 9005
Sheath Printing
RG59/2C 0.5mm PVC RoHS (PO) (m)
Reaction to Fire
Eca
Inner Conductor DC resistance @ 20°C
<216Ω/km <39.8Ω/km
Outer Conductor DC resistance @ 20°C
<48Ω/km
Rated Temperature
80°C
Impedance
75Ω ±3Ω
Capacitance
>67nF/km
Specifications
| Colour | White |
|---|---|
| Cable Construction | RG59 2 x Power Cores |
| Inner Conductor | Copper Clad Steel Bare Copper |
| Conductor Diameter (mm) | 0.58 ±0.008 0.20 ±0.01 x 16 |
| Insulation | Solid PE PVC |
| Insulation Thickness (mm) | 1.60 ±0.01 0.42 ±0.03 |
| Insulation Diameter (mm) | 3.70 ±0.10 1.70 ±0.03 |
| Insulation Colour | Clear Red,Black |
| Braid | Copper Clad Aluminium |
| Braid Construction | 0.12 ±0.008 x 16 x 7 |
| Jacket | PVC PVC |
| Jacket Thickness (mm) | 0.85 ±0.10 0.50 ±0.10 |
| Overall Diameter (mm) | 6.10 ±0.10 4.10 ±0.10 |
| Jacket Colour | Black RAL 9005 Black RAL 9005 |
| Sheath Printing | RG59/2C 0.5mm PVC RoHS (PO) (m) |
| Reaction to Fire | Eca |
| Inner Conductor DC resistance @ 20°C | <216Ω/km <39.8Ω/km |
| Outer Conductor DC resistance @ 20°C | <48Ω/km |
| Rated Temperature | 80°C |
| Impedance | 75Ω ±3Ω |
| Capacitance | >67nF/km |
White RG59 & 2 Core Power Cable, 100M features
RG59 Shotgun CCTV Cable with 2x0.5 mm² Power Cores, PVC White, 100 m SFX/59+2C-0.5-PVC-WHT-100
