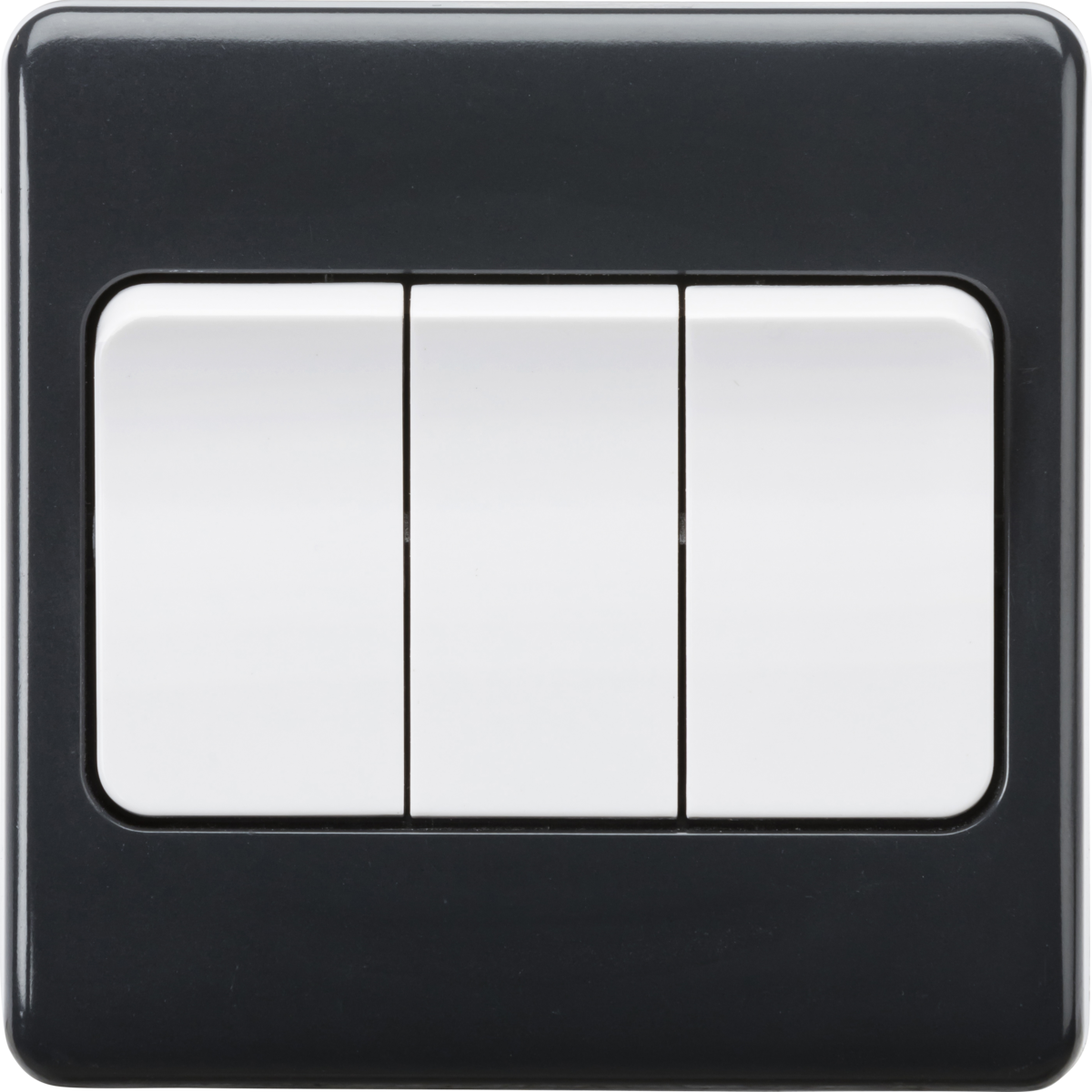

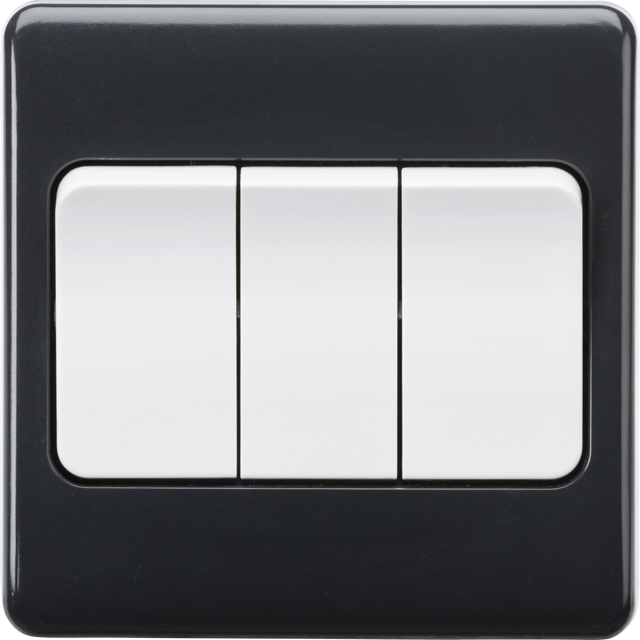

Knightsbridge: PM4W, 10AX 3G 2-Way Wide Rocker Switch, Anthracite, Thermoset Resin, IP20, 230V, Screwless Design, Anti-Microbial
About this product
The Curved Edge range has been expanded to include a range of wiring accessories that comply with current Building Regulations Part M.
- Wide Rocker Screwless Design
- Inherent Anti-microbial properties – 3rd party tested
- Certified to all relevant British Safety standards
It is recommended that switches contrast with the front plate which in turn contrast with the wall. This range satisfies both recommendations. With a Light Reflectance Value (LRV) of approx. 8.9 (Part M recommends a contrast of 30% LRF between front plate and wall).
Specifications
Dimensions
Wiring-accessories
Specifications
| Finish | Anthracite |
|---|---|
| IP Rating | IP20 |
| Construction | Thermoset resin |
| Primary Voltage | 230V 50Hz |

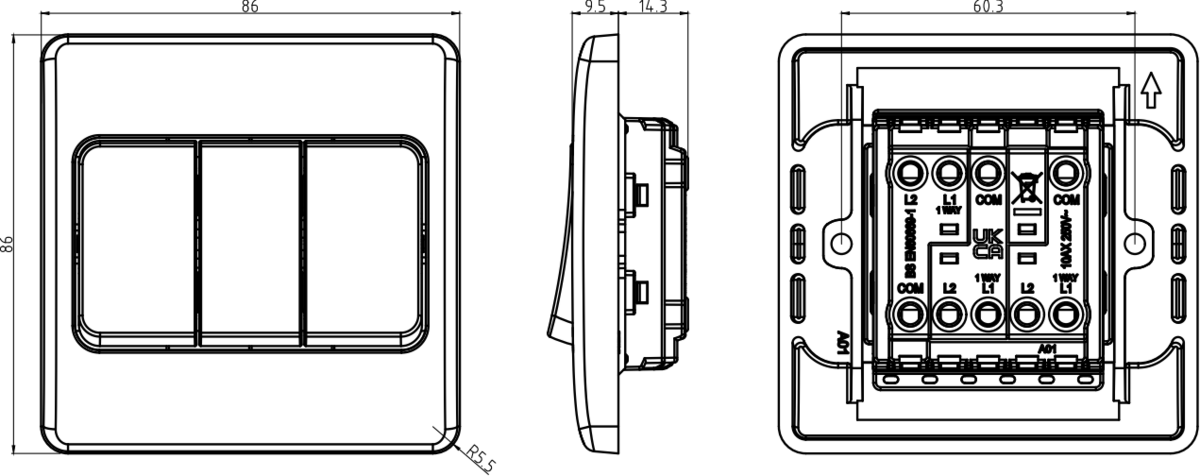

Dimensions
| Width | 86 mm |
|---|---|
| Height | 86 mm |
| Projection | 9.5 mm |
| Min. Mounting Box Depth | 16mm |
Wiring-accessories
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
|---|
10AX 3G 2-Way Wide Rocker Switch features
Knightsbridge: PM4W, 10AX 3G 2-Way Wide Rocker Switch, Anthracite, Thermoset Resin, IP20, 230V, Screwless Design, Anti-Microbial
