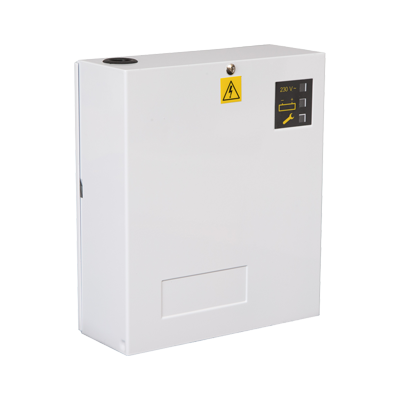

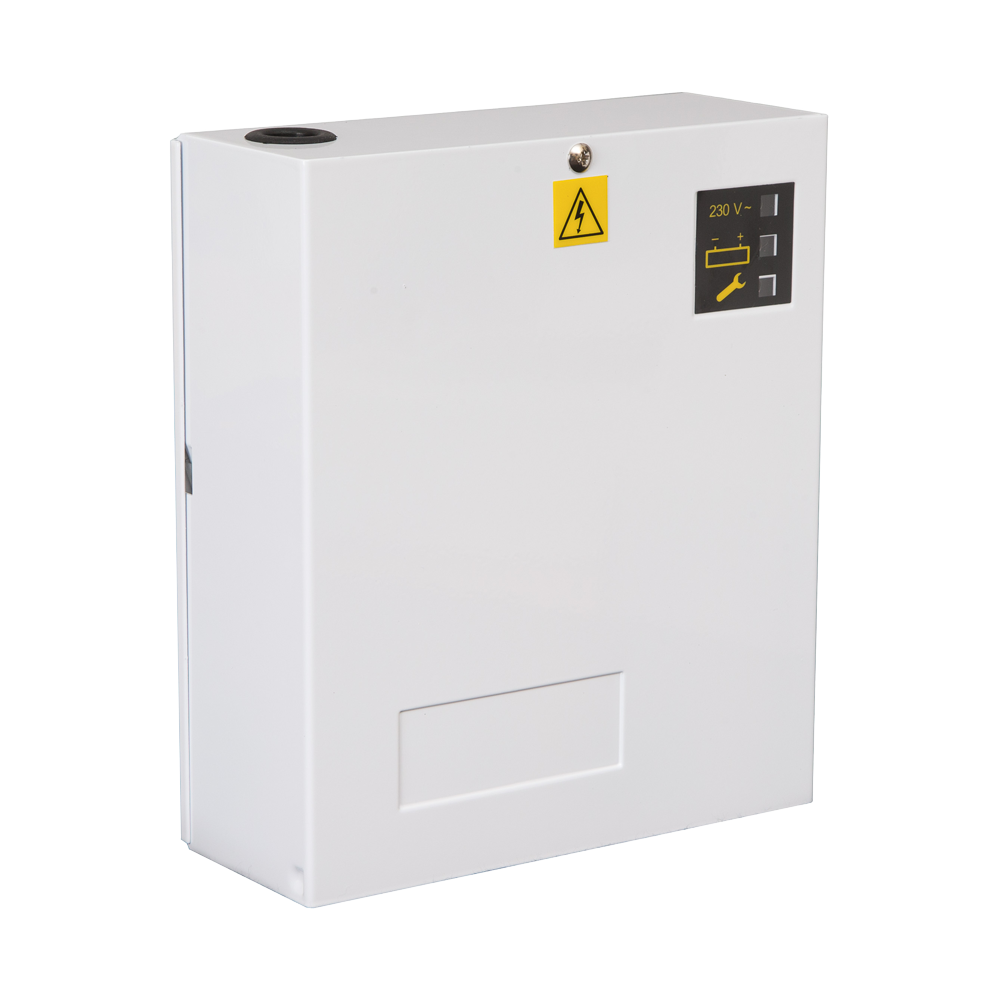

WME: 1202SM-1, 12V Power Supply Unit, 2A, Regulated Output, Mild Steel, White Powder Coating
About this product
The RGL 12V 2 Amp Power Supply is engineered using switchmode technology, ensuring efficient power conversion. Features include:
- Mild steel construction
- White powder coating for durability
- LED indicators for mains and battery output
- Separate fused mains connections
- Full electronic protection with onboard tamper protection
- Multiple cable entries for flexible installation
With a regulated 13.8 VDC output, this power supply is ideal for various applications, including CCTV systems, providing deep discharge protection and current limiting for enhanced system safety.
-
Download
- 1202SM-1-2 spec
Specifications
Dimensions
Specifications
| Output Voltage | 13.8 VDC |
|---|---|
| Current Rating | 2 A |
| Protection Features | Full electronic protection, deep discharge protection, current limiting, short circuit protection |
| Compliance | EMC EN61000-6-1 & 3 |
| Battery Compatibility | Can house a battery up to 12V 9Ah |
| Construction | Mild steel, white powder coated |
| Features | LED indicators, multiple cable entries |
Dimensions
| Height | 225 mm |
|---|---|
| Width | 196 mm |
| Depth | 75 mm |
RGL 12V 2A Power Supply Unit features
WME: 1202SM-1, 12V Power Supply Unit, 2A, Regulated Output, Mild Steel, White Powder Coating
