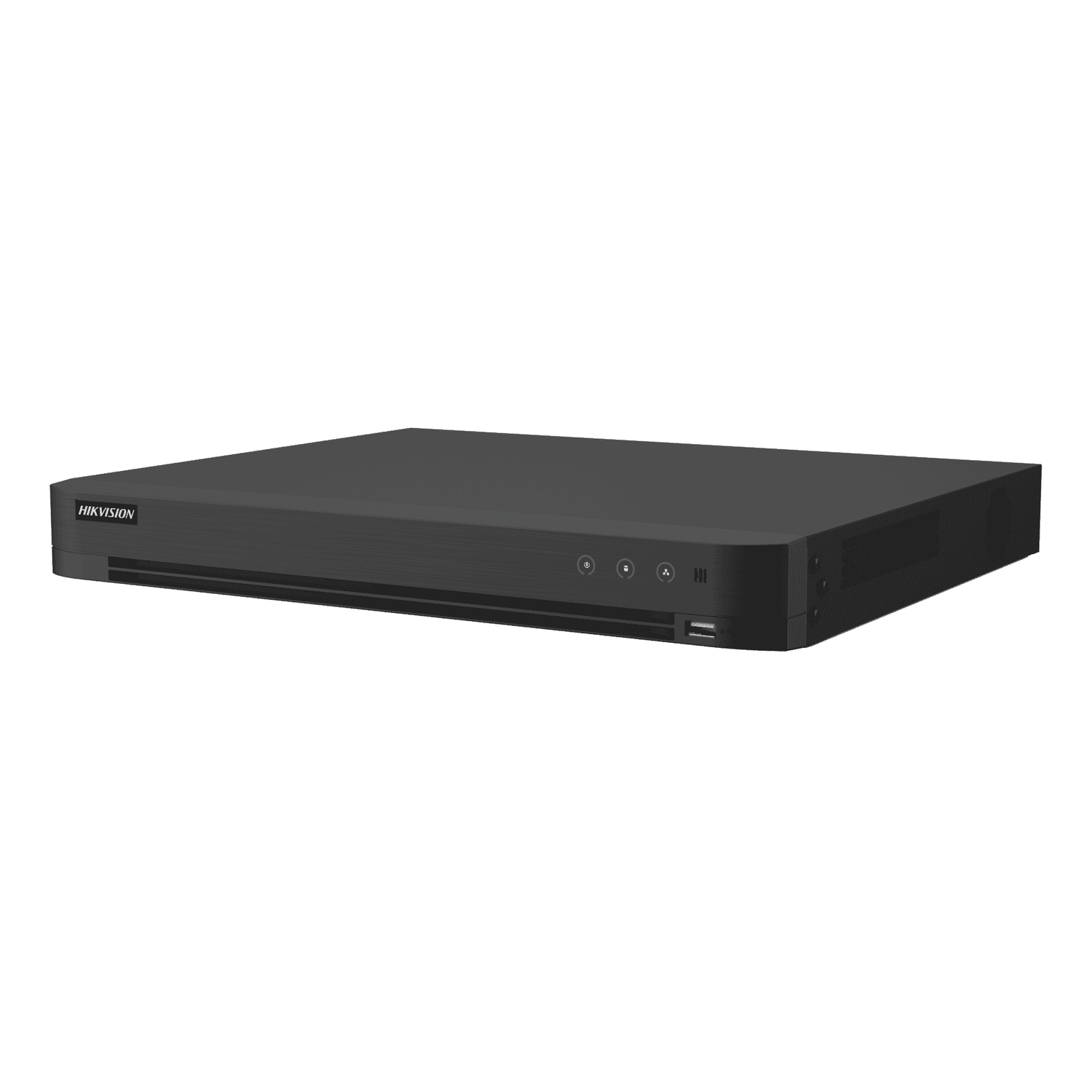

16-channel AcuSense Hybrid DVR, H.265 Pro+, 2×SATA (3TB), iDS-7216HUHI-M2/X

Introduction: iDS-7216HUHI-M2/X — key features at a glance

The iDS-7216HUHI-M2/X is a 16-channel AcuSense hybrid DVR designed for modern CCTV installations that combine analogue and IP cameras. Out of the box this SKU includes a 3 TB 3.5" SATA hard disk and brings together H.265 Pro+ compression, advanced AI-driven human/vehicle classification and flexible output and integration options (4K HDMI, VGA, Gigabit Ethernet). It targets installers and organisations that need accurate detection, efficient storage use and straightforward retrofit or mixed-signal deployments.

Detailed description: specifications and practical benefits

This recorder blends traditional analogue compatibility with IP expandability and intelligent analytics. Below are the product highlights followed by the technical capabilities and what they mean in practice.

• Channels:16 analogue BNC inputs (HDTVI/AHD/HDCVI/CVBS); supports additional IP channels (up to ~32 total, variant-dependent).
• Compression & encoding:H.265 Pro+, H.265, H.264+ and H.264; audio via G.711u.
• Resolution & outputs:Up to 8 MP per channel (depending on mode) with simultaneous 4K (3840×2160) HDMI and VGA outputs and synchronous multi-channel playback.
• Storage:2 × 3.5" SATA bays (this SKU includes a 3 TB HDD); per-bay capacities supported up to large-capacity drives (regional datasheet often cites up to 12 TB per bay).
• Network & protocols:1 × Gigabit RJ45; supports Hik-Connect, ONVIF, DDNS, NFS, iSCSI and HTTPS.
• AI & analytics:AcuSense deep-learning for human/vehicle classification, perimeter protection (line crossing / intrusion), limited face library capabilities (feature limits vary by firmware/variant).
• I/O & backup:Front USB 2.0 and rear USB 3.0 for fast backups; RCA audio in/out; RS‑485 control.
• Power & physical:12 V DC (~5 A), approx. 384 × 317 × 52 mm and operating range −10 °C to +55 °C.

• Reduced storage and bandwidth:H.265 Pro+ improves compression efficiency compared with H.264 and standard H.265, meaning longer retention on the included 3 TB disk and lower network load for remote viewing and backups.
• Fewer false alarms:AcuSense classifies human and vehicle objects via deep-learning models. That reduces time spent reviewing false positives from motion events, and improves the value of alerts and perimeter triggers.
• Flexible upgrades and retrofits:Hybrid design makes it straightforward to re-use existing analogue cameras and add IP cameras selectively — useful for staged upgrades where budget or cabling limits immediate full IP deployment.
• High-quality local monitoring:4K HDMI out enables clear onsite viewing and multi-channel playback, important for control rooms or retail monitoring stations.
• Installer-friendly:Dual SATA bays, standard networking protocols and USB 3.0 backup simplify installation and maintenance.

Use cases and scenarios where the recorder excels

The iDS-7216HUHI-M2/X is well suited to a range of environments where a balance of analytics, storage efficiency and mixed-camera support is required.

• Retailers benefit from AcuSense to focus on human activity inside stores (shoplifting alerts, queue monitoring) and vehicle detection in loading bays. H.265 Pro+ helps conserve storage while retaining high-resolution evidence footage for investigations.

• For offices with existing analogue infrastructure, the hybrid DVR lets administrators add high-res IP cameras at key points — lobby, server room, external perimeters — without replacing all legacy cameras at once.

• Perimeter protection features (line crossing, intrusion) combined with human/vehicle classification offer a practical first line of automated detection. Events can be prioritised so security teams respond only to verified human or vehicle breaches.

• Installers commonly use this DVR for projects where customers want improved analytics but prefer to phase in IP cameras. The unit’s mixed-signal inputs limit rewiring and reduce project cost while improving functionality.

Comparisons with similar products

Understanding where this DVR sits relative to alternatives helps with purchasing decisions. Below are the main comparison axes and typical trade-offs.

• Older H.264 recorders will generally use more storage for the same retention period and produce more false alarms due to basic motion detection. The iDS-7216HUHI-M2/X’s H.265 Pro+ and AcuSense analytics deliver better storage efficiency and more meaningful alerts.

• Some hybrid DVRs support mixed analogue/IP inputs but lack robust object classification. Those recorders can be less efficient operationally because security teams must triage more false positives. The AcuSense engine gives this model an advantage for sites where accurate alerting matters.

• Full IP NVRs may offer higher native IP channel counts and greater flexibility for multi-megapixel cameras across a site. However, they often require complete camera replacement. The iDS-7216HUHI-M2/X is better where existing analogue cameras remain valuable or when a phased migration is preferred.

• Many competitors now provide analytics and H.265 support; the differentiator here is the combination of AcuSense-classification, hybrid input flexibility and a compact 2-bay design with 3 TB included. Buyers should compare feature sets like supported object classes, face-channel limits, maximum throughput and vendor firmware features when choosing a recorder.

Conclusion: who should buy this DVR and why

The iDS-7216HUHI-M2/X 16-channel AcuSense hybrid DVR (with 3 TB included) is a strong choice for organisations that need a pragmatic blend of modern AI analytics, storage efficiency and hybrid camera support. It suits sites where you want to:

• Reduce false positives and prioritise human/vehicle events;
• Save on storage and bandwidth with H.265 Pro+;
• Retain existing analogue cameras while selectively adding IP cameras;
• Deploy a compact recorder with practical installer features (dual SATA bays, USB 3.0 backup, Gigabit network and 4K local output).
