Introduction: compact, secure 12U wall-mounted rack for small IT and CCTV sites

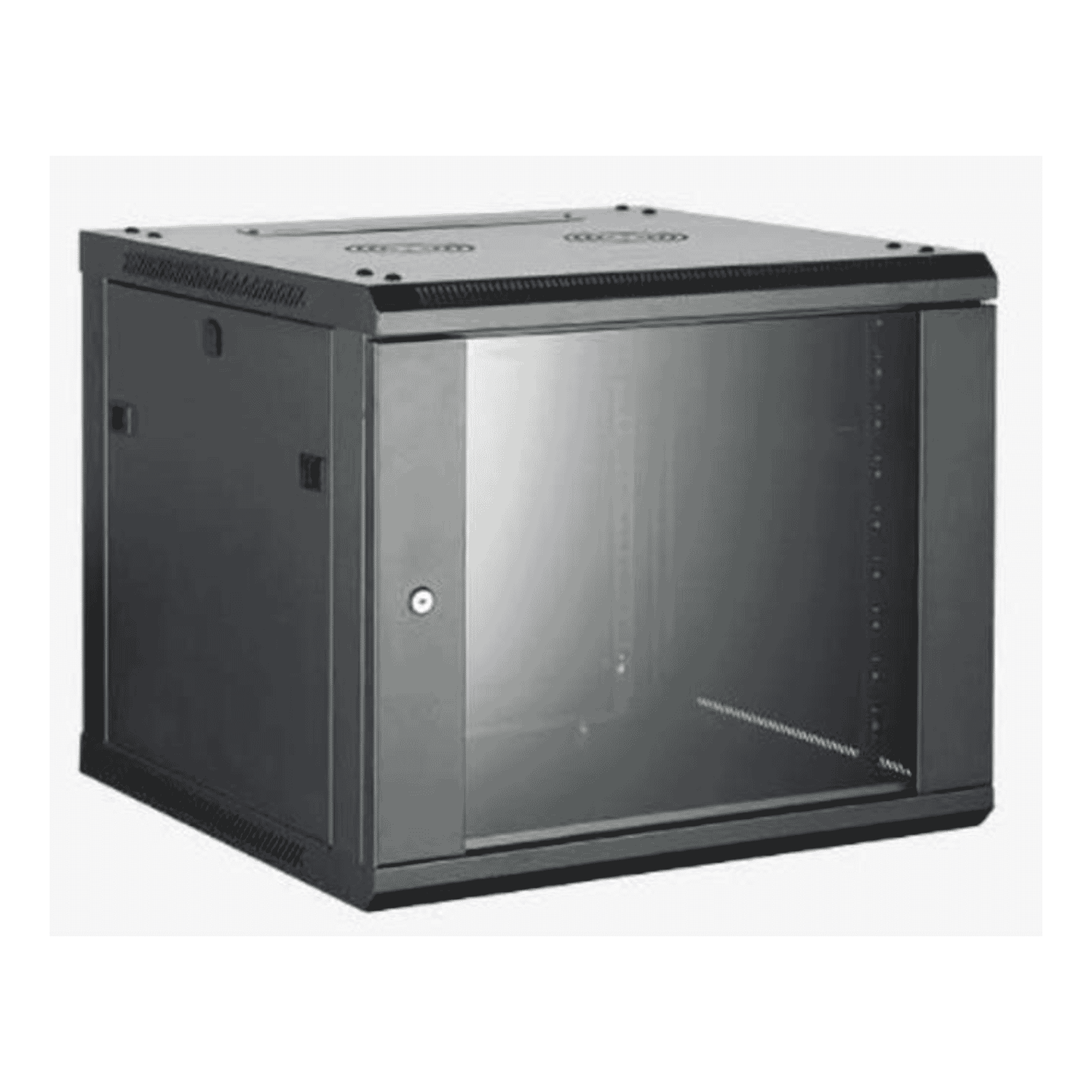

Product:Hikvision DS-XS6412-S/B — 19" 12U Wall-Mount Rack Cabinet (Lockable)
The Hikvision DS-XS6412-S/B is a purpose-built 19" wall-mounted rack cabinet that brings secure, space-efficient rack mounting to small offices, retail sites, and CCTV installations. With 12U of usable rack space, a lockable 4 mm glass front door and removable metal side panels, this cabinet is designed to protect network switches, patch panels, small NVR/DVR units, and other 19" rack-mount equipment while keeping the footprint to a minimum. Constructed from SPCC steel and offering top and bottom cable entry, the DS-XS6412-S/B is a practical solution where a fully enclosed, lockable rack is preferred over open-frame shelving.
Key features at a glance
- 12U of standard 19" rack space for small networks and CCTV equipment
- Wall-mounted design with supplied brackets for secure, elevated installation
- Lockable 4 mm glass front door with metal frame for visibility and security
- Removable metal side and rear panels for easy access during installation and maintenance
- Top and bottom cable entry points for neat routing and separation of power and data cabling
- SPCC steel construction with a 40 kg static load rating
- Compatibility with a range of optional accessories (shelf, fans, PDU) to suit site needs
Detailed specifications and benefits
- Installation: Wall-mounted (brackets supplied)
- Internal rack space: 12U (19")
- Dimensions (W × D × H): 600 × 450 × 635 mm
- Static load capacity: 40 kg
- Net weight: 21 kg
- Front door: 4 mm glass with metal frame, lockable (approximately 78% opening)
- Side / rear panels: Removable metal side and rear panels for access
- Material: SPCC steel (durable, corrosion-resistant finish)
- Panel / rail thicknesses: Front/rear frame 1.2 mm; side panels 1.0 mm; vertical rails 1.5 mm (manufacturer data)
- Cable entry: Top and bottom entry points
- Optional accessories: Shelf (DS-XSPB04-S/B), fans, PDU (ordered separately)
- 12U capacity: Offers a compact footprint while still supporting a typical combination of switch, patch panel and a small NVR or UPS — ideal for edge or branch deployments where space is limited.
- Lockable glass door: Balances physical security with visibility, allowing quick visual checks of equipment status LEDs without opening the cabinet. The 4 mm tempered-style glass and metal frame provide a professional finish suited to customer-facing environments.
- Wall-mount design: Keeps equipment off the floor and out of reach of casual tampering, water ingress at floor level, or accidental knocks. Supplied brackets simplify installation to structural walls.
- 40 kg static load rating: Suitable for lighter rack loads common in small networks — switches, patch panels and compact NVRs. Plan heavier devices and UPS placement carefully to avoid overloading the cabinet.
- Removable panels and cable entry: Enable tidy cable management and make installation or service access straightforward. Top/bottom entry points help separate power and data runs for cleaner routing and improved airflow with optional fans.
- SPCC steel construction: Offers durability and rigidity in a slim form factor — appropriate for office, retail or light-industrial settings where robust but compact enclosures are needed.
Use cases and scenarios where the DS-XS6412-S/B excels
- Small office networks: For branch offices or small teams that need a secure, neat location for a switch, patch panel and a small UPS. The cabinet secures equipment and presents a tidy installation in communal areas.
- Retail or customer-facing sites: The glass front door provides a professional look, allowing staff or technicians to confirm devices are powered without unlocking the cabinet, while maintaining security to prevent tampering.
- CCTV/NVR enclosures: Ideal for housing a compact NVR or DVR alongside PoE switches and patch panels — commonly used in small retail outlets, clinics or schools where central server rooms aren’t available.
- Edge and remote deployments: Where equipment must be mounted on a wall to conserve floor space — for example in classrooms, kiosks, telecom cupboards and small comms rooms.
- Temporary or pop-up sites: The wall-mountable design and modest weight make it practical for short-term installations that still require rack-style mounting and basic security.
Comparisons with similar products on the market
Open-frame wall racks (also available in 12U sizes) are lighter and often less expensive, but they provide no enclosure or lockable door. The DS-XS6412-S/B wins when security, dust protection and a neat appearance are priorities. Open-frame racks may be preferred where airflow is critical and equipment is located in a secure, controlled environment.
Competitors such as APC, StarTech, Rittal and Eaton offer comparable compact 12U wall cabinets. Key differentiators to consider:
- Material and build: The Hikvision cabinet uses SPCC steel with specified panel and rail thicknesses; some premium rivals may use thicker steel or additional reinforcements for higher static loads.
- Load capacity: At 40 kg static load, the DS-XS6412-S/B is well suited to light to medium equipment sets. If your deployment includes heavier UPS units or larger servers, look for cabinets with higher load ratings.
- Door type: The lockable glass door balances visibility and aesthetics. Some competitors offer perforated steel doors for improved passive airflow, or full steel doors for increased physical protection.
- Accessory ecosystem: Hikvision lists compatible shelves, fans and PDUs; check accessory availability and compatibility if you anticipate needing specialised mounts or high-density PDUs.
- Compare warranty terms and after-sales support across brands — warranties and support packages vary and can influence long-term value.
Practical purchasing considerations and accessories
- Accessories sold separately: Add a shelf (DS-XSPB04-S/B), internal fans and a PDU as required for your equipment list and heat management needs.
- Load planning: Distribute weight evenly and avoid placing heavy devices on the top of the cabinet; if a heavier UPS is required, consider an external shelf or a stronger cabinet.
- Wall suitability: Install only on appropriate structural walls as per local building codes and the Hikvision datasheet. Use correct fixings and follow recommended installation instructions.
- Confirm local regulatory requirements where applicable.
Conclusion: who should choose the Hikvision DS-XS6412-S/B?
The Hikvision DS-XS6412-S/B 12U 19" wall-mount rack cabinet is a strong choice for small networks, CCTV deployments and edge installations that need a secure, tidy and professional enclosure. Its lockable glass front door, removable panels and top/bottom cable entry points make installation and maintenance straightforward, while SPCC steel construction delivers a durable package in a compact footprint. The 40 kg static load capacity suits light to medium equipment sets — perfect for switches, patch panels, small NVRs and compact UPS units when planned correctly.
If your setup requires higher load ratings, greater ventilation or heavy-duty industrial protection, consider comparing specifications against rival models and factor in accessory needs. Otherwise, the DS-XS6412-S/B represents a well-rounded, cost-effective solution for many everyday small-scale rack requirements.
