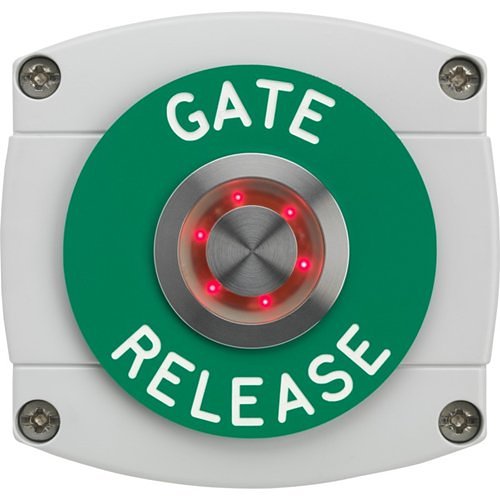

3E Security 3E0659NI-GB-GR push button, IP66

Visit Access Control Systems
£ 75 65
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

3E Security 3E0659NI-GB-GR is a push button.

The 3E0659NI-GB-GR is just one of the variants in the range of high impact, externally rated surface mount buttons. The robust two part cross polymer housing incorporates an integral gasket that seals the unit to IP66. This product is a reliable solution for external egress and other outdoor switching applications.

The base incorporates premoulded conduit knockouts (both M16 and M20). These aid installation by ensuring effective cable management. Legend discs are manufactured from an externally rated bi-colour engraving laminate which is available in a variety of colour combinations.

The discs are gasketed using an open cellular foam, when the switch is tightened to the unit, the cell closes to maintained IP rating. The bi-colour illumination (green and red) can be wired in numerous ways to give pleasant visual feedback to the user. The Dual halo illumination switches are particularly effective in low light environments.

Key features

  • IP66 Ingress protection
  • Momentary contact
  • N/O, N/C, C
  • 12Vdc Independant bi-colour LED illumination
  • Quality stainless steel switch body construction
  • M16/20 Pre-moulded conduit knockouts

If you are matching this to an existing installation, work from the 3E0659NI-GB-GR part number rather than the description.

£ 75 65
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£75.65 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
3E Security
Manufacturer Part Number
3E0659NI-GB-GR
Product Type
Push Button
General information
Application/Usage
Outdoor
Certifications
Ingress protection
IP66
Environmental conditions
Maximum Operating Temperature
85°C
Minimum Operating Temperature
-25°C
Physical characteristics
Colour
Grey
Depth
59.00mm
Height
85.00mm
Material
Stainless Steel
Width
89.00mm
Power description
Input Voltage
12V DC
Product information
Mount Type
Surface Mount
Print/Message
Gate Release
Miscellaneous
Environmental status
Yes
Features
Surface Mount
Attributes
Input Voltage
12V DC
Specifications
General information
Certifications
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name 3E Security
Manufacturer Part Number 3E0659NI-GB-GR
Product Type Push Button

General information

Application/Usage Outdoor

Certifications

Ingress protection IP66

Environmental conditions

Maximum Operating Temperature 85°C
Minimum Operating Temperature -25°C

Physical characteristics

Colour Grey
Depth 59.00mm
Height 85.00mm
Material Stainless Steel
Width 89.00mm

Power description

Input Voltage 12V DC

Product information

Mount Type Surface Mount
Print/Message Gate Release

Miscellaneous

Environmental status Yes
Features Surface Mount

Attributes

Input Voltage 12V DC

3E Security 3E0659NI-GB-GR push button

3E Security 3E0659NI-GB-GR push button, IP66

Who this is for

For the installer — this is the push button supplied under 3E Security part number 3E0659NI-GB-GR. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a push button made by 3E Security. The part number 3E0659NI-GB-GR is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this push button is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact push button I have been quoted? Check the manufacturer part number 3E0659NI-GB-GR against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 3E0659NI-GB-GR answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
