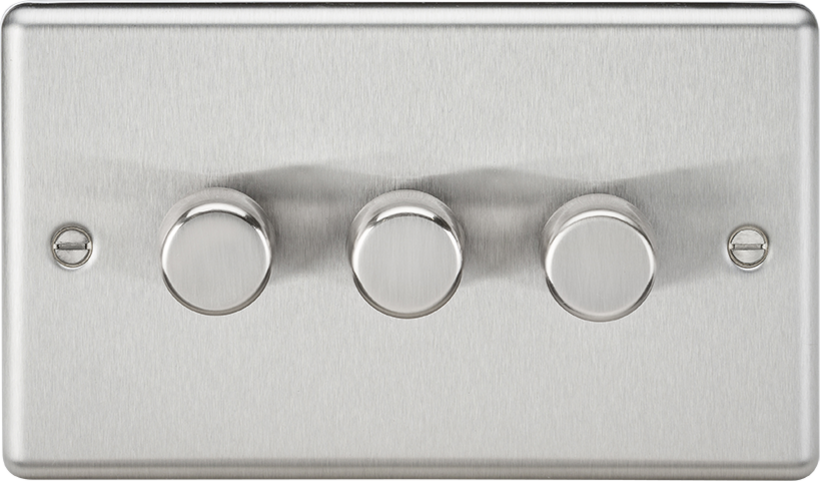

Intelligent Dimmer - Brushed Chrome
Enhance your home with the 3G 2-way Intelligent Dimmer in Brushed Chrome, suitable for dimmable lamps only, featuring:
- Switch between Trailing-edge and Leading-edge modes for compatibility
- Control knob for easy mode switching and resetting from the front
- Push On/Off and rotary dimming action for user convenience
- Protection features including overload and overheat safeguard
Note: Do not use in a mixed environment; differing brands or wattages in the same fitting may cause issues.
Specifications
Dimensions
Wiring-accessories
Specifications
Class | I |
---|---|
Finish | Brushed Chrome |
IP Rating | IP20 |
Construction | 304 Stainless steel |
Primary Voltage | 230V 50Hz |

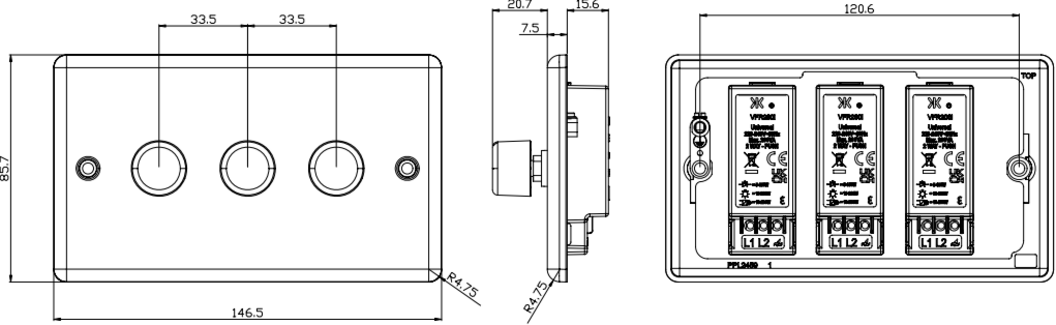

Dimensions
Depth | 43.8 mm |
---|---|
Width | 146.5 mm |
Height | 85.75 mm |
Projection | 20.7 mm |
Plate Depth | 7.5 mm |
Min. Mounting Box Depth | 25mm |
Wiring-accessories
Terminal | Screw |
---|---|
Earth Terminal | Yes |
Intelligent Dimmer - Brushed Chrome features

3G 2-way Intelligent Dimmer, Brushed Chrome, 10-200W (5-150W LED), CL2193BC
