Introduction: Meet the 4 MP AcuSense Mini-Dome IP Camera

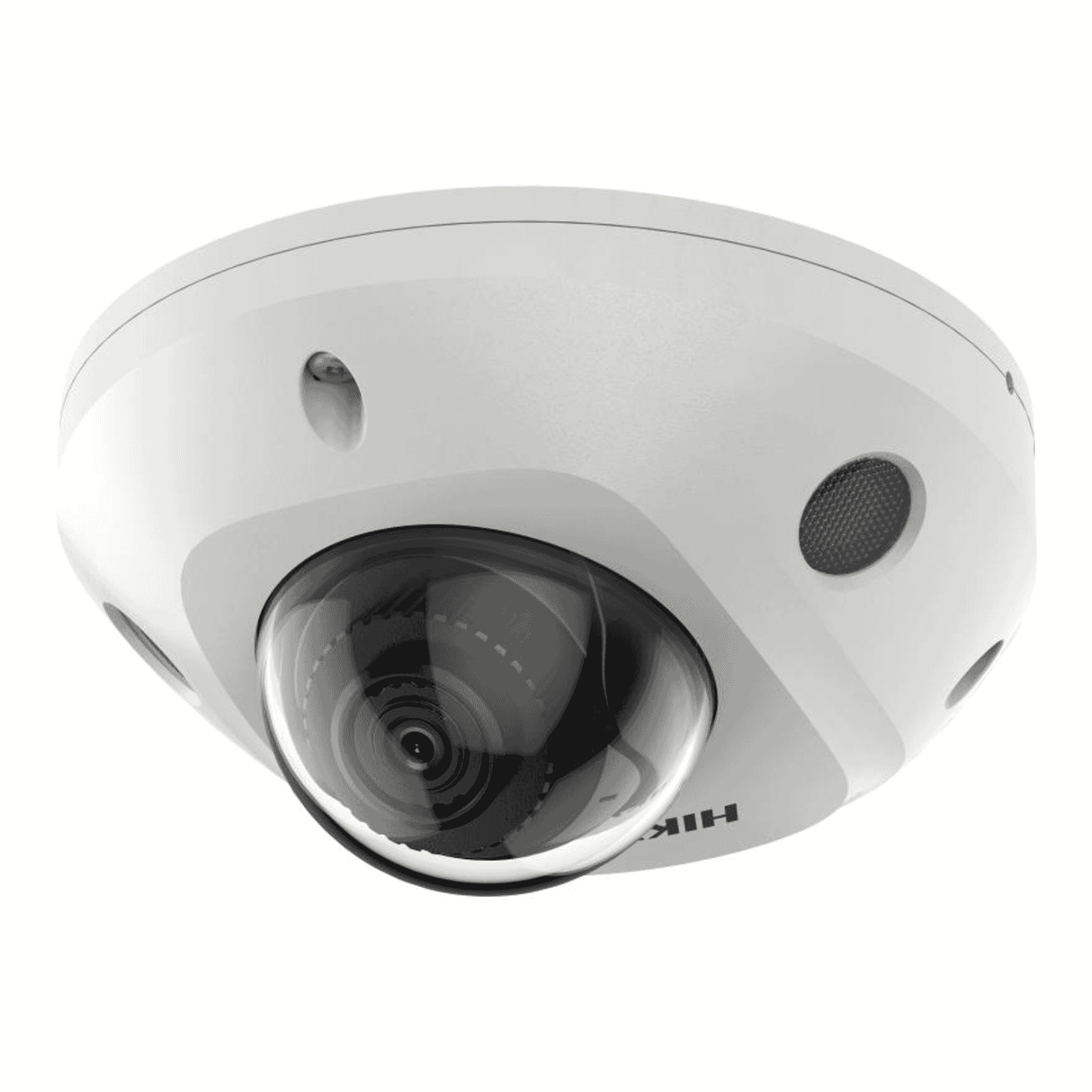

The DS-2CD2543G2-IWS is a compact, weatherproof 4 MP AcuSense mini-dome IP camera designed for reliable outdoor surveillance. Combining high-resolution imaging (2688 × 1520), intelligent AcuSense analytics, flexible power and network options (PoE, 12 VDC, or 2.4 GHz Wi‑Fi), and robust ingress protection (IP67 / IK08), this camera is built to capture clear evidence-quality video in a wide range of environments. It also includes IR illumination to around 30 m, built-in audio capture, and support for local and network storage—making it a versatile option for homeowners, installers and commercial integrators.
Key Features at a Glance
- 4 MP resolutionfor clearer detail than 1080p cameras.
- AcuSense deep-learning analyticsfor human/vehicle classification, perimeter protection (line crossing, intrusion) and face detection.
- Flexible networking: RJ45 10/100 Mbps, 2.4 GHz Wi‑Fi (W model), ONVIF compatibility and support for Hikvision clients.
- Dual power options: PoE (802.3af) or 12 V DC for easy installation choices.
- Night capability: IR illumination to ~30 m and excellent low-light colour imaging (0.005 lux).
- Durable build: IP67 weatherproofing and IK08 vandal resistance for true outdoor use.
Detailed Specifications and Benefits
- Image sensor: 1/3" progressive-scan CMOS delivering clean, progressive frames.
- Maximum resolution: 2688 × 1520 (4 MP) — more pixels mean improved recognition and cropping flexibility for later review.
- Fixed 2.8 mm lens (F1.6) with approximately 104.3° horizontal field of view — ideal for wider coverage of entrances, yards, parking areas and retail spaces.
- DORI ranges (2.8 mm): Detect 64 m • Observe 25 m • Recognise 13 m • Identify 6 m — useful for planning placement depending on whether you need general motion detection or subject identification.
- Compression: H.265 / H.264 families, including H.265+ and H.264+ — efficient encoding reduces bandwidth and storage costs while maintaining image quality.
- Frame rate: Up to 25/30 fps (region dependent) at full 4 MP resolution for smooth motion capture.
- 120 dB WDR (Wide Dynamic Range): Helps balance scenes with both bright and dark areas (for example, a doorway backlit by sunlight).
- Bitrate range of 32 Kbps – 8 Mbps provides flexibility for network and storage limitations.
- AcuSense deep-learning: Classifies targets as human or vehicle, reducing nuisance alarms caused by animals, shadows or small objects.
- Perimeter protection: Line-crossing and intrusion detection provide actionable event triggers for security systems.
- Face detection: Helpful for event logging and targeted evidence capture when paired with proper storage/management setups.
- Built-in microphone with support for codecs like G.711, AAC-LC and MP3 — allows audio context for events (check local regulations before recording audio).
- Local storage via microSD card up to 512 GB, and NAS support (NFS/SMB) — provides flexible recording strategies including edge storage as a redundancy.
- Network: RJ45 10/100 Mbps and 2.4 GHz Wi‑Fi (W model), ONVIF Profile S/G compatibility, and support for Hik-Connect, iVMS-4200 and Hik-Central clients for remote access and management.
- Power options: PoE (802.3af) simplifies cabling for new installs; 12 V DC supports retrofit scenarios.
- Power consumption: Typically 6–7 W depending on usage.
- Operating range: −30 °C to 60 °C and humidity ≤95% non‑condensing — suitable for most outdoor climates.
- Ingress / impact: IP67 weatherproof and IK08 vandal resistant for longevity in exterior installations.
- Compact physical size: Ø110 mm × 57.4 mm and about 380 g — unobtrusive on facades or soffits.
Use Cases and Ideal Scenarios
Thanks to its balance of image quality, analytics and durability, the DS-2CD2543G2-IWS fits many real-world deployments:
- Residential properties:Monitor driveways, front doors, backyards, and property perimeters with clear day/night imaging and false-alarm reduction through human/vehicle classification.
- Small retail stores and offices:Use the camera to monitor entry points, storefronts and parking bays. Face detection and audio can provide additional context for incidents.
- Multi-site small businesses:Remote management via ONVIF/Hik-Connect and local microSD redundancy make this a sound choice for branches needing reliable, low-maintenance surveillance.
- Perimeter monitoring:Line crossing and intrusion alarms are especially useful for gates, fences and loading yards where early detection matters.
- Installation flexibility:Choose PoE for neat installations or 12 V DC if PoE is not available; the Wi‑Fi variant simplifies installs where running Ethernet is difficult.
How It Compares to Similar Cameras
When compared with basic 2 MP or older-generation dome cameras, the DS-2CD2543G2-IWS delivers higher resolution, better low-light performance and more sophisticated analytics. Key comparative points:
- Resolution and detail:4 MP gives a visible advantage over 1080p cameras for recognition and forensic review.
- Analytics:Deep-learning AcuSense classification reduces false alarms versus traditional motion-only detection systems, which often require more tuning.
- Compression efficiency:H.265 support helps keep bandwidth and storage manageable compared to H.264-only models at similar resolutions.
- Durability:IP67 and IK08 ratings place it ahead of indoor-only domes or low-grade outdoor housings for exposed installations.
- Versus more premium models:Some higher-end models may offer higher resolutions (e.g., 6–8 MP), multi-sensor arrays or analytics with broader capabilities. The DS-2CD2543G2-IWS, however, offers a strong value proposition for most common outdoor needs—balancing cost, features and ease of deployment.
Conclusion: Why Choose the DS-2CD2543G2-IWS?
The 4 MP AcuSense Mini-Dome DS-2CD2543G2-IWS is a versatile outdoor camera that combines clear imaging, intelligent analytics and robust construction. Its strengths are practical: better-than-HD resolution for evidence capture, AcuSense analytics to reduce false alarms, multiple power and network options for flexible installations, and weather/vandal resistance for long-term outdoor use. Whether you are upgrading a home security system, protecting a small business, or deploying consistent surveillance across multiple sites, this camera offers a compelling balance of capability and value.
Before purchase and installation, review local audio recording laws, check product labelling for CE/UKCA and warranty details, and consult the official datasheet and quick-start guide for recommended mounting and electrical procedures. For many installations, the DS-2CD2543G2-IWS provides a reliable, cost-conscious foundation for modern, analytics-driven surveillance.
