iDS-2CD7547G0/P-XZHSY 4MP DeepinView ANPR Dome, 2.8-12mm, PoE, IP67
Free Delivery
4 MP Clarity
IP67 Rated
Save £59.76

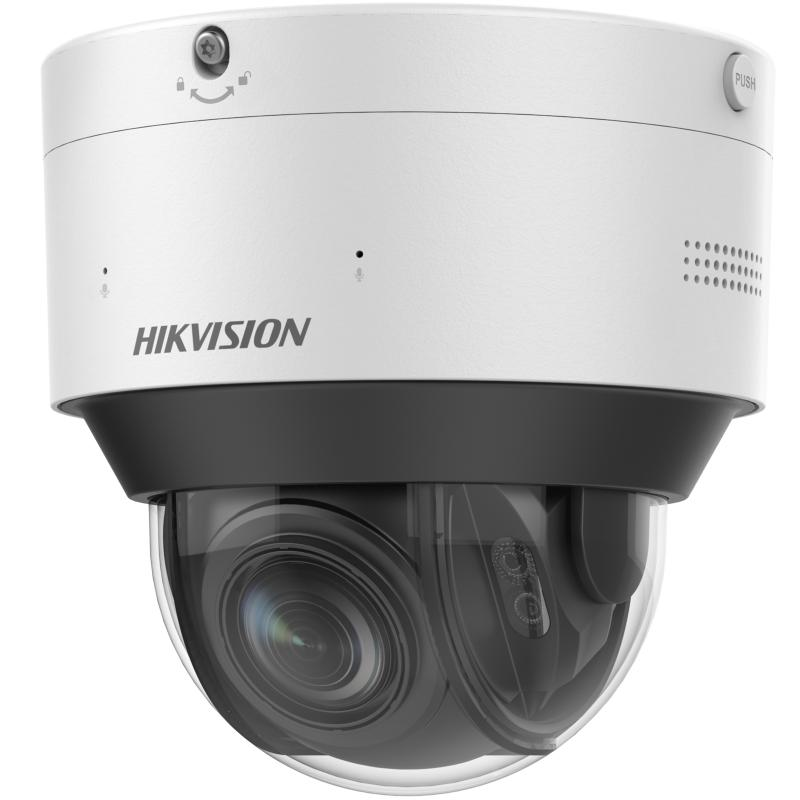

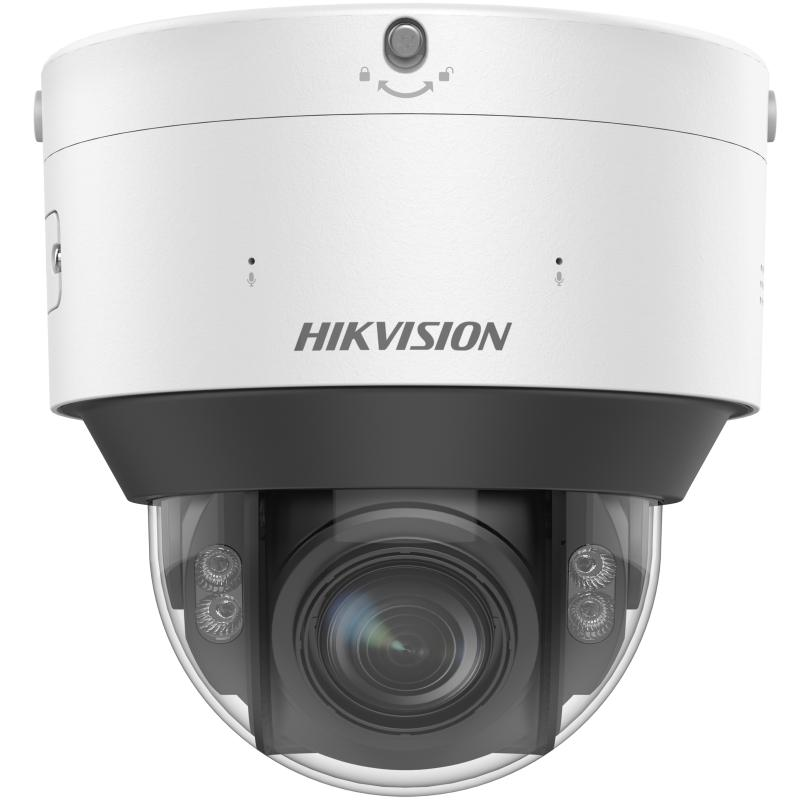

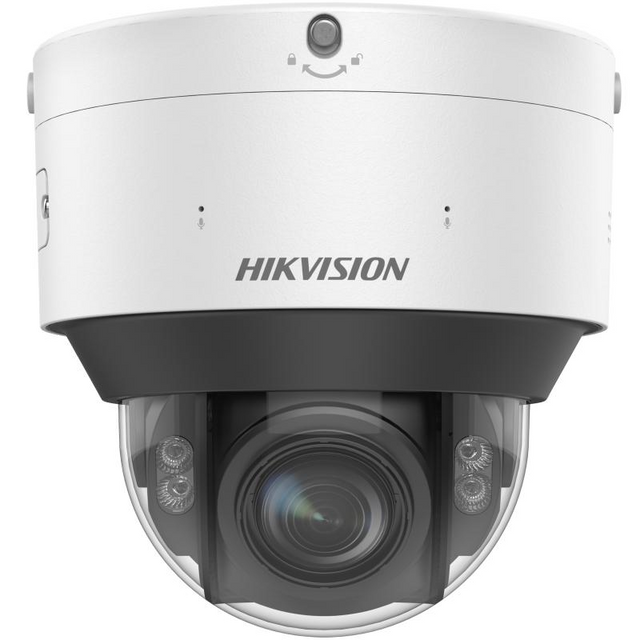

Hikvision 4 MP Darkfighter ANPR Dome Camera
About this product
About this product
Introducing the 4 MP DarkfighterS DeepinView ANPR Varifocal Dome Camera, specially designed for advanced surveillance solutions. This camera combines cutting-edge 4 MP resolution with exceptional low-light performance backed by DarkfighterS technology. Ideal for ANPR applications, it features:
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- 140 dB true Wide Dynamic Range for clear images
- Robust IP67 and IK10 ratings for durability
- Unique PTRZ capability for efficient installation
Perfect for both commercial and residential applications.
-
Download
- iDS-2CD7547G0/P-XZHSY-Spec Sheet
Technical Details
Specifications
Manufacturer
Hikvision
Resolution
4 MP
Lens Focal Length
2.8 to 12 mm
IP Rating
IP67
IK Rating
IK10
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1 s to 1/100,000 s
Focal Length
FOV ＆
Iris Type
P-iris
Aperture
F1.0 to F1.2
IR Wavelength
850 nm
Supplement Light Range
2.8 to 12 mm: 30 m
Supplement Light Type
Hybrid (IR and White Light)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Network Storage
Together with high-end Hikvision memory card, memory card encryption and health
Video Output
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Alarm
1 input, 1 output (max. 24 VDC, 1 A)
Power Output
12 VDC, max. 100 mA
Material
Aluminum alloy body
Dimension
Ø160 mm × 159.5 mm (Ø6.3" × 6.3")
Weight
Approx. 2100 g (4.62 lb.)
Storage Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
General-information
Product Type
CCTV
Weight
Approx. 2.1 kg
Specifications
| Manufacturer | Hikvision |
|---|---|
| Resolution | 4 MP |
| Lens Focal Length | 2.8 to 12 mm |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Focal Length | FOV ＆ |
| Iris Type | P-iris |
| Aperture | F1.0 to F1.2 |
| IR Wavelength | 850 nm |
| Supplement Light Range | 2.8 to 12 mm: 30 m |
| Supplement Light Type | Hybrid (IR and White Light) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Network Storage | Together with high-end Hikvision memory card, memory card encryption and health |
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Power Output | 12 VDC, max. 100 mA |
| Material | Aluminum alloy body |
| Dimension | Ø160 mm × 159.5 mm (Ø6.3" × 6.3") |
| Weight | Approx. 2100 g (4.62 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
General-information
| Product Type | CCTV |
|---|---|
| Weight | Approx. 2.1 kg |
Hikvision 4 MP Darkfighter ANPR Dome Camera features
iDS-2CD7547G0/P-XZHSY 4MP DeepinView ANPR Dome, 2.8-12mm, PoE, IP67
