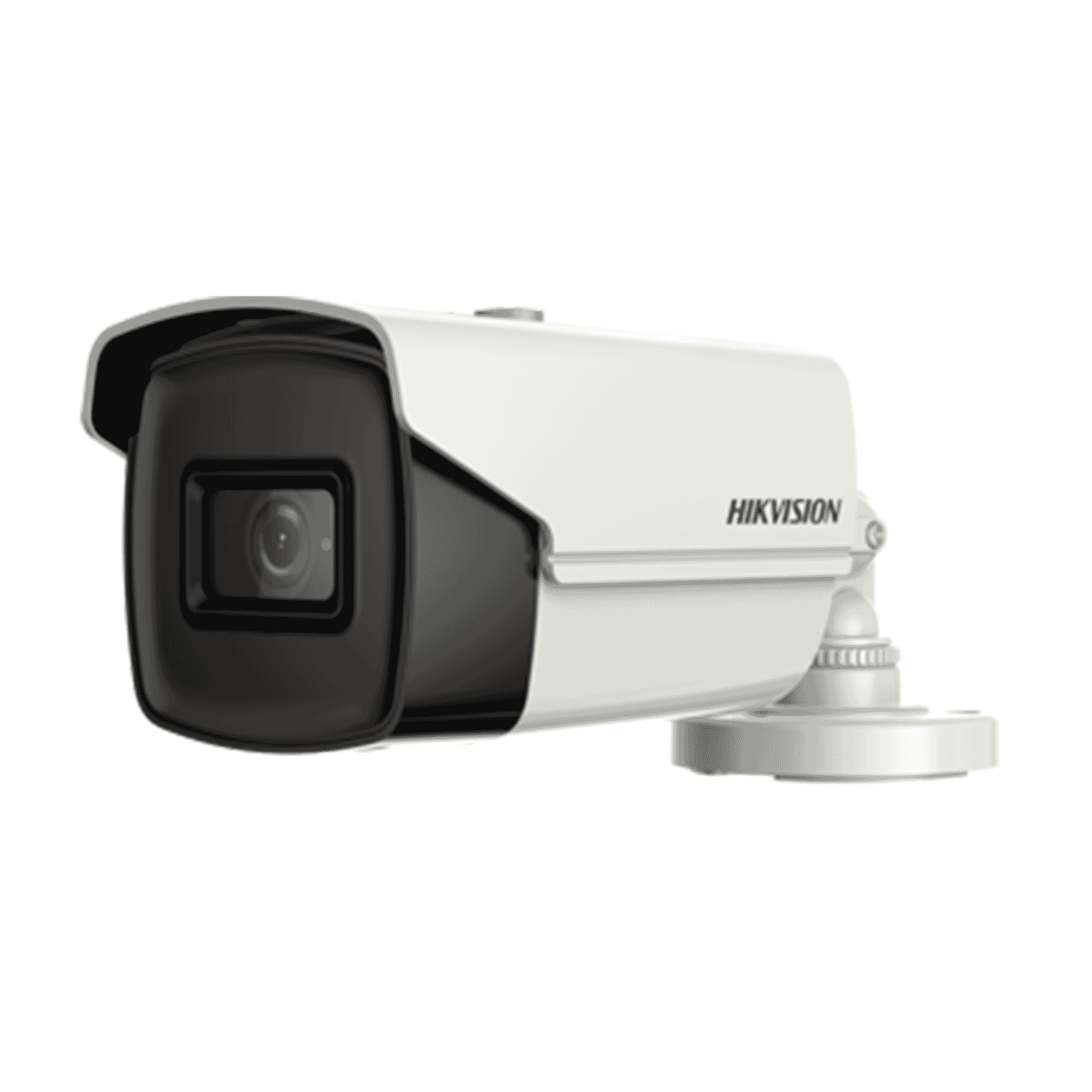

4K TurboHD Bullet Camera, 3.6 mm Fixed Lens, EXIR, IP67 DS-2CE16U1T-IT3F

Introduction: What the Hikvision 4K TurboHD Bullet Camera Offers

The Hikvision DS-2CE16U1T-IT3F is an 8 MP (4K) TurboHD analogue bullet camera designed to deliver high-resolution surveillance without forcing a full system overhaul. With a 3.6 mm fixed lens, EXIR 2.0 night illumination up to 60 meters, and a rugged IP67 weatherproof housing, this camera is built for outdoor perimeter, entrance and car-park monitoring on existing coaxial installations. It supports multiple analogue formats (TVI/AHD/CVI/CVBS), making it a practical upgrade path for sites that want 4K image detail while reusing legacy cabling.

Key Features at a Glance

• 4K 8 MP resolution– 3840 × 2160 imaging for detailed capture of faces, license plates and scene detail.
• EXIR 2.0 infrared– Smart IR illumination up to 60 m for clear night-time images.
• Multi‑format analogue output– Switchable TVI / AHD / CVI / CVBS for compatibility with many recorders and converters.
• Robust outdoor design– IP67-rated housing and wide operating temperature range (−40 °C to 60 °C).
• Image enhancement– Digital WDR, BLC/HLC and 2D DNR to improve image quality in challenging lighting.
• Easy installation– 3.6 mm fixed lens (~79° horizontal field of view) and standard M16 lens mount for straightforward deployment.

Detailed Specifications and Benefits

Understanding the technical details helps clarify where this camera fits in a surveillance ecosystem. Below is an accessible breakdown of the DS-2CE16U1T-IT3F’s key specifications and the practical benefits each delivers.

• Sensor:8.29 MP progressive CMOS. Benefit: delivers higher detail and reduced motion artifacts compared with interlaced sensors.
• Max resolution:3840 × 2160 (4K). Benefit: can capture fine details at a distance, useful for identification and evidence.
• Lens:3.6 mm fixed (approx. 796 horizontal FOV), M16 mount. Benefit: a versatile field of view that suits general perimeter and entry surveillance without complex focusing.
• Minimum illumination:0.01 Lux (F2.0, AGC ON); 0 Lux with IR. Benefit: performs well in low-light conditions when IR is active.
• Shutter:PAL/NTSC ranges to 1/50,000 s. Benefit: flexible exposure control for varied lighting scenarios.

• Video output:Switchable TVI / AHD / CVI / CVBS. Benefit: compatibility with a wide range of analogue recorders and hybrid systems.
• Frame rates:8MP @ 12.5/15 fps (TVI); higher frame rates at lower resolutions. Benefit: full-resolution capture prioritizes detail over frame rate—good for static scenes and identification; choose lower resolutions where higher fps are needed.
• Image processing:Digital WDR, BLC, HLC and 2D DNR. Benefit: improved visibility in scenes with backlight, strong highlights, or noise in low light.
• IR / Illuminator:EXIR 2.0 with Smart IR up to 60 m. Benefit: efficient, even night illumination with reduced overexposure of close objects.

• Power supply:12 VDC (±25%), max consumption 5.3 W. Benefit: simple power requirements compatible with common CCTV power sources.
• Operating temperature:−40 °C to 60 °C;Protection:IP67. Benefit: suitable for harsh, outdoor environments year-round.
• Dimensions & weight:81.9 × 86.7 × 217.9 mm, approx. 435 g. Benefit: compact and lightweight for many mounting options.

Use Cases & Scenarios Where the Camera Excels

The DS-2CE16U1T-IT3F is particularly well suited to the following situations:

• Upgrading legacy coax systems:Sites with existing coaxial cabling (parking lots, apartment blocks, retail locations, town councils) can gain 4K detail without ripping out cables or converting to IP networks.
• Wide-area outdoor coverage:The long-range EXIR illumination (up to 60 m) and wide temperature tolerance make the camera ideal for perimeters, parking areas, building exteriors and service yards.
• Cost-sensitive installations:For projects where budget is an important factor, this TurboHD camera offers a high-resolution option that keeps total system cost (and complexity) lower than a full IP/PoE solution.
• Simple fixed monitoring:Entrances, gates, alleys and loading bays benefit from the fixed 3.6 mm field of view and reliable night performance—areas where a motorised PTZ isn’t necessary.
• Installer-friendly deployments:The switchable multi-format output and standard power make this camera easy for installers to integrate into hybrid systems and to troubleshoot on site.

Comparisons with Similar Products

When choosing surveillance cameras, it helps to compare the DS-2CE16U1T-IT3F to other approaches: modern IP/PoE 4K cameras, other TurboHD models, and lower-resolution analogue cameras.

• Pros of the TurboHD camera: lower total system cost when reusing coax; simpler cabling in legacy installations; often lower purchase price per camera.
• Cons: restricted to analogue transport limits (frame rate at full 8MP is lower), fewer onboard smart analytics compared with modern IP models, and no network features like PoE or direct NVR over IP.
• When to choose which: pick the TurboHD camera for upgrades where rewiring is undesirable; choose IP/PoE for greenfield projects, advanced analytics and scalable network management.

• The DS-2CE16U1T-IT3F stands out for its EXIR 2.0 night range (up to 60 m) and IP67 rating. Some competitors may match resolution but fall short on IR performance or weather sealing.
• Frame-rate behavior is common across many TurboHD 4K models, so evaluate whether your application needs higher fps at lower resolution, or the maximum detail at a reduced frame rate.

Customer Feedback and Example Testimonials

Direct customer reviews for specific SKUs vary by retailer and installer. Below are representative comments and feedback themes commonly reported by installers and end users who choose this class of TurboHD bullets:

• "Great value for upgrade projects."Many installers note the camera’s ability to deliver noticeable image improvement on legacy coax systems without rewiring, making it a budget-friendly upgrade path.
• "Reliable in tough weather."Users operating cameras in outdoor environments praise the IP67 housing and wide operating temperatures for year-round reliability.
• "Long-range night coverage."Customers often highlight the EXIR night illumination as a key benefit for perimeter and car park sites where longer IR reach is needed.
• Common caveat:Some users point out the lower frame rate at full 8MP; if you need smooth, high-frame video for fast-motion capture, consider selecting a lower-resolution setting or a different camera family.

Conclusion: Why the Hikvision DS-2CE16U1T-IT3F Is a Strong Choice

The Hikvision DS-2CE16U1T-IT3F balances high-resolution imaging with pragmatic deployment flexibility. Its 8 MP (4K) sensor and EXIR 2.0 infrared deliver crisp daytime detail and dependable long-range night performance, while switchable TVI/AHD/CVI/CVBS outputs make it an excellent option for upgrading existing coax CCTV systems. Rugged IP67 construction and modest power requirements simplify installation outdoors and in exposed locations.

For installers and site owners seeking an affordable route to 4K surveillance without the disruption and cost of rewiring for IP, this TurboHD bullet camera presents a compelling mix of performance, durability and compatibility. it represents strong value for projects prioritising image detail and ease of upgrade.
