5 MP Turbo HD Turret Camera, 2.8 mm, PoC, IP67, DS-2CE76H0T-ITME(2.8MM)(C)

Introduction to the Hikvision 5MP Turbo HD Turret and its key features

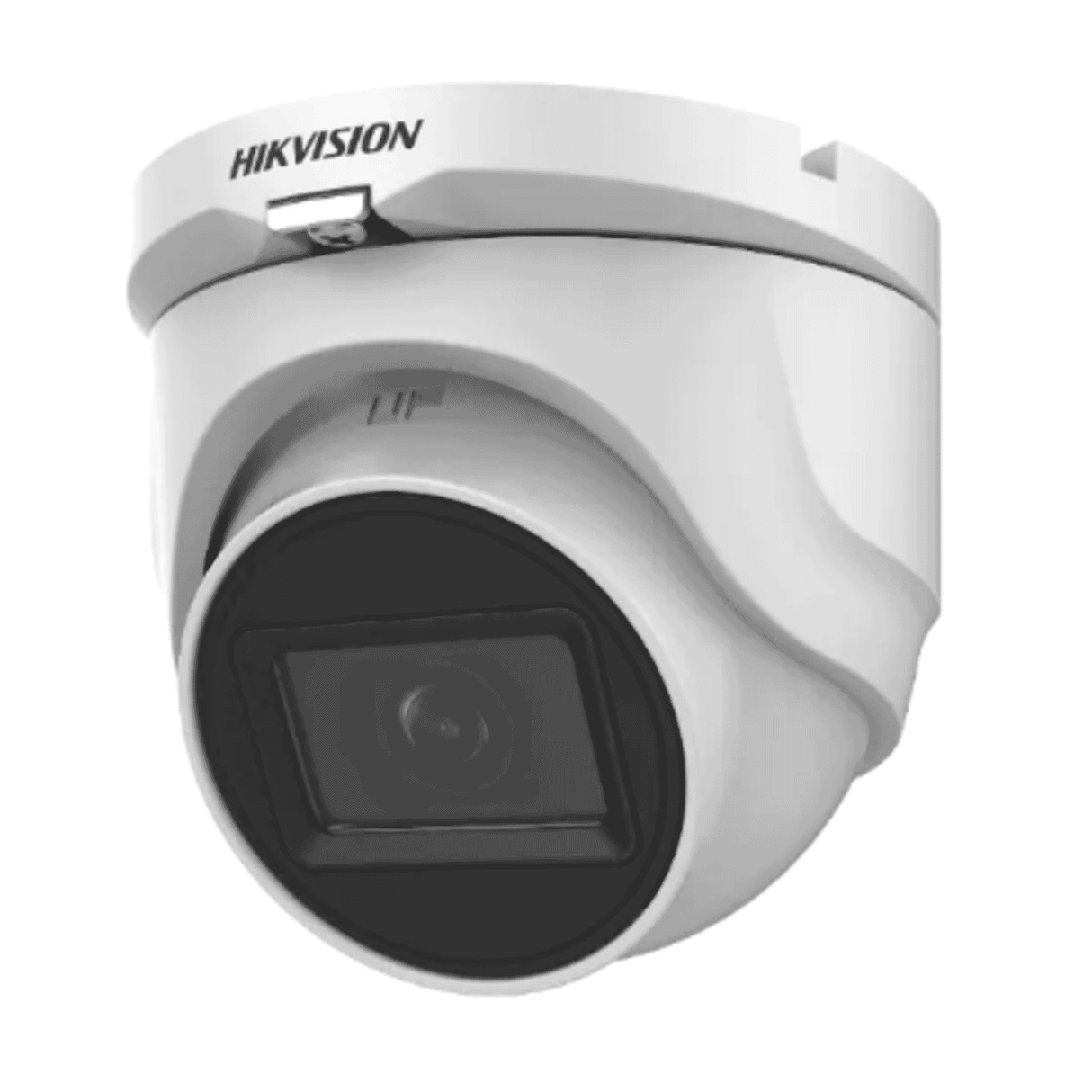

The Hikvision DS-2CE76H0T-ITME(2.8MM)(C) — marketed as the Hikvision 5MP Turbo HD Turret (2.8mm) — is a compact analogue CCTV camera designed for reliable indoor and outdoor surveillance. It brings higher resolution analogue imaging (5 MP) together with practical installer-friendly features such as Power over Coax (PoC.af), switchable 4-in-1 video output (TVI/AHD/CVI/CVBS), and EXIR Smart-IR illumination for night-time monitoring up to 30 meters. Housed in an IP67-rated metal turret body and specified to operate in extreme temperatures (−40 °C to 60 °C), this camera targets retail, small-to-medium business, entrances and perimeter monitoring where a low-cost, durable camera is required.

Detailed description of specifications and benefits

Under the hood, the DS-2CE76H0T-ITME is built around a 5 MP CMOS image sensor producing a maximum resolution of 2560 × 1944. Its 2.8 mm fixed lens delivers a wide horizontal field of view (approximately 85°), which is ideal for covering wide corridors, shop floors and entryways without requiring multiple cameras.

• Resolution:5 MP (2560 × 1944) for clearer identification and more detail in captured scenes.
• Lens & optics:2.8 mm fixed lens (M12 mount); Horizontal ≈ 85°, Vertical ≈ 63°, Diagonal ≈ 110°.
• Video formats:Switchable TVI / AHD / CVI / CVBS for broad recorder compatibility.
• Frame rates:Up to 5M@20fps in TVI/AHD modes; alternate frame rates up to 4M@30/25fps depending on format.
• Night performance:EXIR Smart-IR with up to 30 m illumination and image enhancements like Smart IR to reduce overexposure of near objects.
• Image processing:Digital WDR, 2D DNR, BLC and HLC for improved clarity in challenging lighting.
• Power options:PoC.af (Power over Coax) or 12 VDC (±25%); max consumption ≈ 4.3 W.
• Weather & build:IP67 metal housing, operating range −40 °C to 60 °C; compact dimensions Ø82.6 × 90 × 79.37 mm; weight ≈ 363 g.

• Higher-resolution analogue imaging:The 5 MP sensor gives a meaningful step up from 1080p analogue cameras; it improves facial recognition and object identification at moderate distances while remaining compatible with analogue recording systems.
• Flexible compatibility:Switchable output formats make the camera usable with a wide range of existing analogue DVRs and hybrid recorders, simplifying system upgrades.
• Simplified installation with PoC:Power over Coax.af reduces cabling by delivering power and video over the same coaxial cable when paired with PoC-capable recorders — useful in retrofit projects or where running new power is costly.
• Improved low-light performance:EXIR Smart-IR and image processing reduce common night-time issues (blown-out highlights near the IR source, noisy images) so footage remains more usable after dark.
• Rugged and compact:The IP67 rating and metal housing protect the unit from weather and vandal-prone environments while the small turret form factor fits discreetly in many locations.

Use cases and scenarios where this camera excels

The combination of features in the DS-2CE76H0T-ITME makes it well-suited to a range of everyday CCTV applications where cost, compatibility and reliability matter:

• The wide field of view and higher resolution help capture product displays, aisles and checkout counters with good detail. PoC support simplifies installations in older stores where running new power lines can be disruptive.

• Businesses that already use analogue DVRs can upgrade image quality without replacing their entire recording infrastructure thanks to the switchable 4-in-1 formats. The turret shape is unobtrusive and easy to mount in lobbies or hallways.

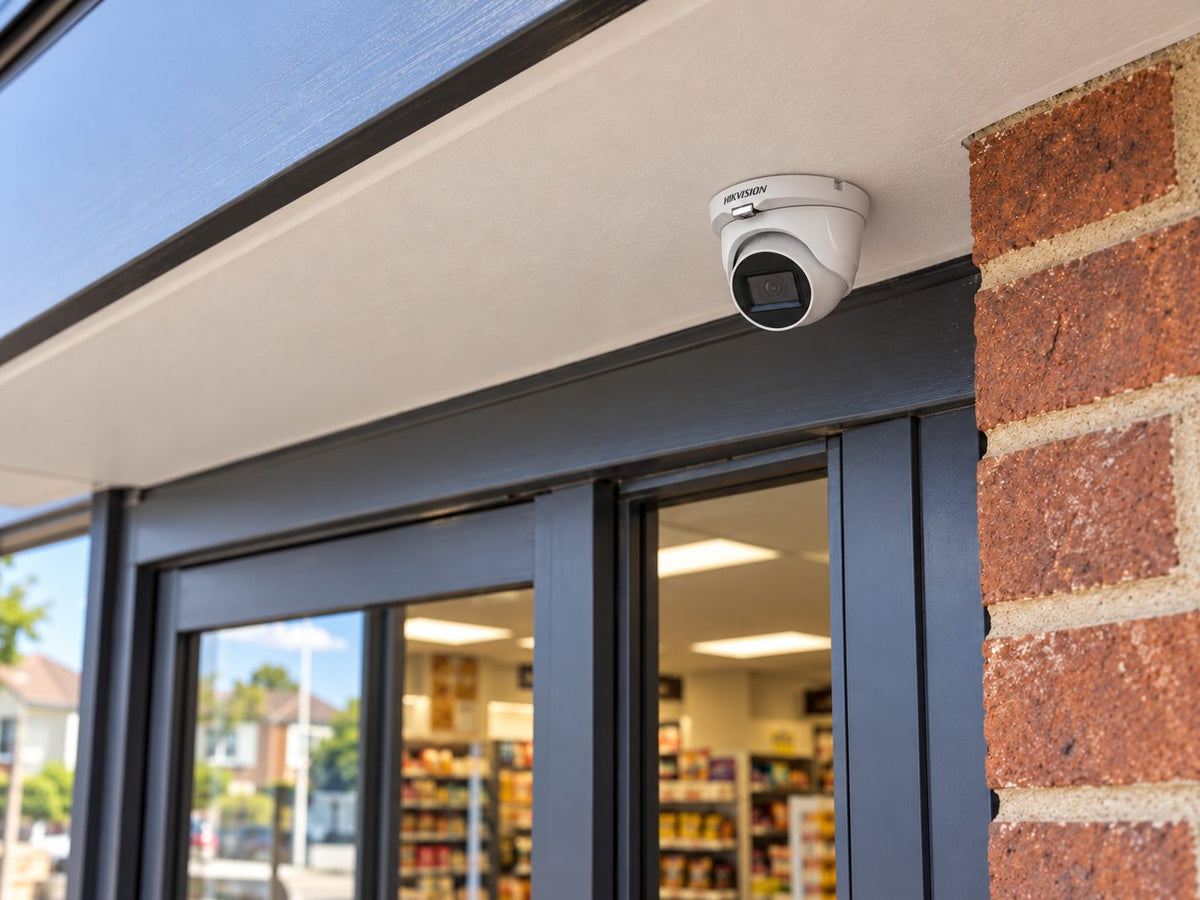

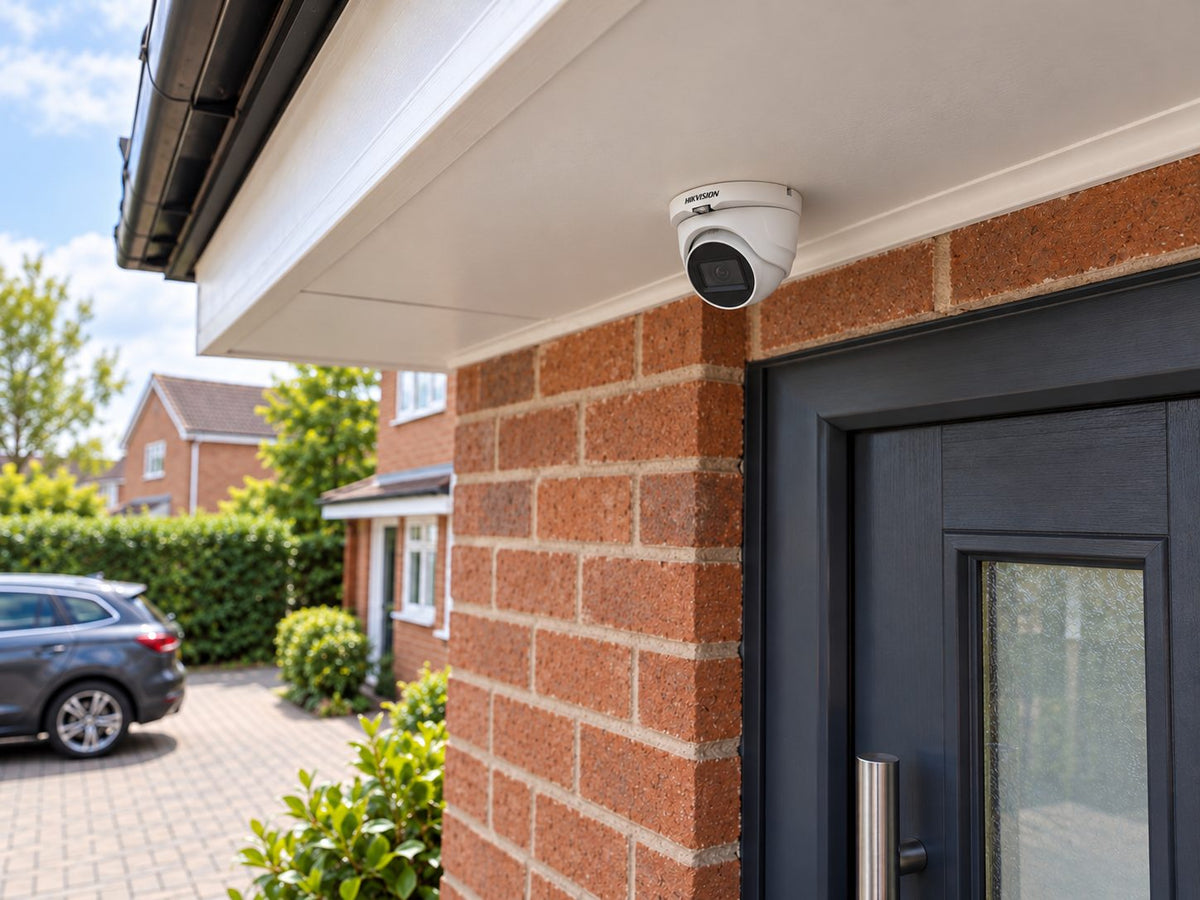

• With EXIR illumination up to 30 m and robust weather resistance, the camera effectively monitors entrances, loading bays and outdoor perimeters. Digital WDR helps balance scenes where bright external light meets darker interiors.

• Installers deploying many cameras across legacy analogue sites can use PoC to reduce power wiring, and the switchable output increases chances the camera will be compatible with site equipment.

Comparisons with similar products on the market

It helps to view the DS-2CE76H0T-ITME in the context of other options: modern IP cameras, other analogue 4-in-1 models, and higher-end turret variants. Each category has trade-offs.

• Other manufacturers offer 5 MP turbo/HD-TVI or HDCVI turret cameras with comparable optics and IR range. What distinguishes the Hikvision unit is the PoC.af capability in the ITME subvariant and the manufacturer's long-standing ecosystem compatibility — useful for installers standardised on Hikvision recorders.

• IP (PoE) cameras generally provide more advanced features (edge analytics, higher frame rates, onboard storage and easier network management), but they require network infrastructure and often higher cost for recording/storage. The DS-2CE76H0T-ITME is a pragmatic choice where budget, existing coax infrastructure, or low-latency analogue workflows are priorities.

• Hikvision offers turret variants with audio, different IR ranges, and IP-based models. The ITME subvariant specifically trades audio support for PoC convenience; installers should confirm the exact model (ITME vs ITMF/ITMFS) to ensure it matches project requirements.

Conclusion: Why the DS-2CE76H0T-ITME (2.8mm) is a strong choice

The Hikvision 5 MP Turbo HD Turret DS-2CE76H0T-ITME(2.8MM)(C) is a well-balanced analogue surveillance camera that prioritises ease of installation, compatibility and ruggedness. Its 5 MP sensor and 2.8 mm wide-angle lens deliver clearer coverage for many everyday surveillance needs, while EXIR Smart-IR and image-processing features keep night-time and high-contrast scenes usable. PoC.af support is a standout convenience for installers working with coaxial infrastructure, reducing cabling and labour costs on retrofit jobs.

While IP cameras provide advanced features and analytics, the DS-2CE76H0T-ITME remains an attractive option for sites that require cost-effective upgrades to higher-resolution analogue imaging or where existing DVRs and coax infrastructure should be retained. Before purchase, confirm the exact model subvariant and compatibility with your recorder, check local approvals and warranty terms, and have a qualified technician perform installation.

For projects seeking dependable, simple-to-deploy surveillance with improved image detail and installer-friendly features, the Hikvision DS-2CE76H0T-ITME (2.8mm) is a practical and cost-effective choice.
