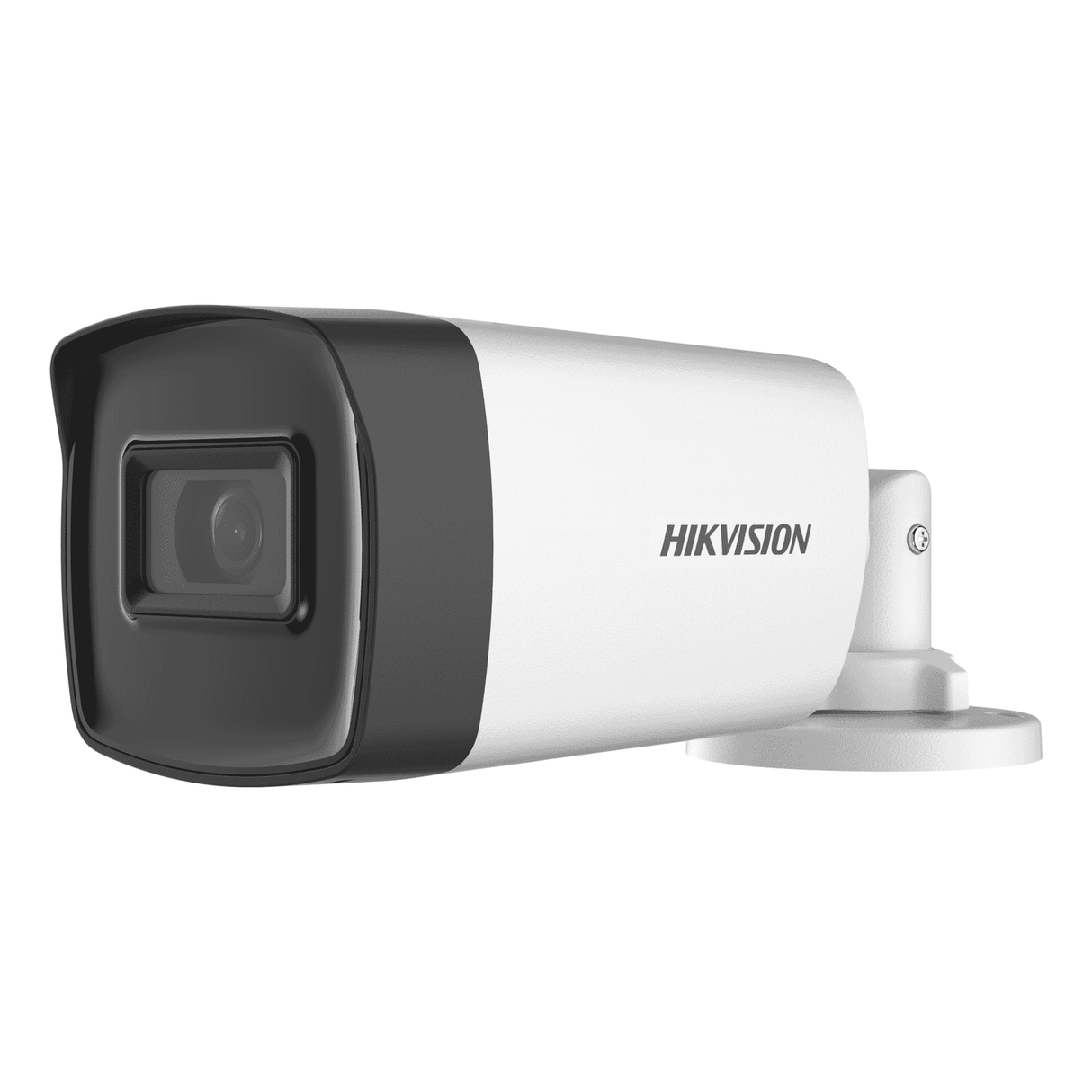

5MP Turbo HD Bullet Camera, 3.6 mm, PoC, EXIR, IP67 DS-2CE17H0T-IT3E

Introduction to the 5MP Turbo HD Bullet Camera (DS-2CE17H0T-IT3E)

The DS-2CE17H0T-IT3E is a 5MP Turbo HD fixed-bullet analogue CCTV camera designed for reliable outdoor surveillance. With a 3.6 mm lens (≈80° horizontal field of view), EXIR infrared illumination up to 40 m, Power over Coax (PoC) support and IP67 weatherproofing, it targets installers and end users who need a cost-effective, durable camera for domestic and commercial perimeter monitoring.

• 5 MP resolution(2560 × 1944) for detailed daytime images.
• 3.6 mm fixed lensproviding an approximate 80° horizontal field of view.
• EXIR night visiondelivering usable infrared illumination up to around 40 m.
• PoC or 12 VDC powerfor simplified cabling in analogue Turbo HD systems.
• Image enhancementincluding digital WDR, DWDR, BLC, HLC, Smart IR and 2D DNR.
• IP67-rated housingand wide operating temperature range (-40 °C to 60 °C) for outdoor reliability.
• Compact form factor(approx. 216.6 × 78.9 × 75.4 mm, ~380 g) that fits most mounting locations.

Below are the primary technical specifications followed by practical benefits and what they mean in real world use.

• Sensor:5 MP CMOS — Higher pixel count than traditional 2 MP analogue cameras, enabling clearer identification of faces and vehicle details within the camera's field.
• Max resolution:2560 × 1944 (5 MP) at up to 20 fps — Balanced resolution and frame rate suitable for general surveillance where extremely high frame rates are not critical.
• Lens:3.6 mm fixed (M12) — A wide-angle configuration that covers broad areas such as driveways, front yards, loading bays or store fronts without the need for multiple cameras.
• Horizontal FOV:≈ 80° — Good coverage for close to mid-range scenes while maintaining useful detail.
• Minimum illumination:0.01 Lux (F2.0, AGC on); 0 Lux with IR — Performs well in low-light conditions; IR engages automatically for true night-time recording.
• IR range:EXIR up to 40 m — EXIR provides more even, longer-range illumination compared with standard LEDs, reducing overexposure near the camera and improving distant coverage.
• Day/Night:ICR (Auto/Colour/BW) — Mechanical IR-cut filter ensures accurate color reproduction in daylight and good sensitivity at night.
• Image enhancement:Digital WDR, DWDR, BLC, HLC, Smart IR, 2D DNR — These features help the camera handle backlit scenes, reduce noise in low light, and prevent IR overexposure to maintain usable images across a variety of lighting conditions.
• Video output:1 HD analogue output (Turbo HD) — Compatible with Turbo HD DVRs; ideal for systems that prefer coax infrastructure.
• Power supply:12 VDC ±25% or PoC — PoC simplifies installation by delivering power over the existing coax cable where the DVR supports it, reducing the need for separate power runs.
• Power consumption:≤ 4 W (approx.) — Low power draw contributes to energy efficiency and lower operating costs.
• Housing & protection:Front cover metal, main body plastic; IP67-rated — Weatherproof for heavy rain, dust and seasonal climates within the stated temperature/humidity range.
• Operating range:-40 °C to 60 °C; ≤ 90% non-condensing humidity — Suitable for a wide variety of outdoor environments, including cold climates and hot summers.
• Dimensions & weight:216.6 × 78.9 × 75.4 mm; ≈ 380 g — Compact and lightweight, making mounting and positioning straightforward.

Benefits summary: The DS-2CE17H0T-IT3E delivers higher-than-basic analogue resolution (5MP) while keeping installation simple via PoC. EXIR night illumination and image enhancement tools make it effective in mixed lighting, and IP67 protection ensures long-term outdoor use. Overall, it offers an economical path to sharper imagery without the cost and complexity of a full IP camera system.

This model is well suited to a range of outdoor surveillance needs where moderate-to-high resolution and reliable night performance are required at an affordable cost. Typical scenarios include:

• Residential perimeter security:Driveways, front gates, gardens and backyards — the wide 3.6 mm lens covers common property approaches while EXIR provides visibility at night.
• Small business storefronts:Shop fronts, forecourts and entry points where identifying individuals and activity is important but a full IP infrastructure is not desired.
• Car parks and loading areas:The 40 m IR range and 5MP resolution help capture license plates and vehicle features in low light when positioned appropriately.
• Light industrial sites:Perimeter monitoring, entrance gates and utility areas where durable weatherproofing and extended temperature range are necessary.
• Retrofit and upgrade projects:Replacing older analogue cameras with Turbo HD devices is cost-effective when preserving existing coax cabling and DVRs; PoC reduces additional wiring work.

When evaluating the DS-2CE17H0T-IT3E, it helps to compare it across three common axes: resolution and image quality, installation complexity and total system cost, and environmental robustness.

• Versus lower-resolution analogue cameras (2MP/1080p):The 5MP camera offers greater detail, which can improve identification at distance. However, 5MP footage at 20 fps places greater demands on storage and may require more careful framing to maximize useful pixels. For many sites, the improved image detail outweighs the modest storage impact.
• Versus 4MP analogue alternatives:5MP provides a small but tangible advantage in clarity over 4MP models. If pixel-level detail (e.g., license plate zoom-ins) is critical, 5MP is preferable; if not, 4MP can be slightly cheaper and lower in storage demands.
• Versus network/IP cameras:IP cameras typically offer higher resolutions, advanced analytics, and direct PoE power options, but they often come at higher price points and may require network infrastructure upgrades. The DS-2CE17H0T-IT3E is a competitive choice when you have existing coax infrastructure or need a lower-cost solution with simpler DVR-based management.
• PoC advantage:Compared with analogue cameras that require separate power runs, PoC-compatible models reduce installation time and complexity when paired with a compatible DVR. This can lower labor costs and simplify retrofits.

Public product-specific reviews for this exact model may be limited depending on distributor listings, but installers and users of similar Turbo HD 5MP bullet cameras typically report the following themes:

• Positive:Clear daytime images, useful IR reach for perimeter coverage, and easier installation when PoC is supported.
• Also, analogue image enhancement like digital WDR can struggle in extremely high-contrast scenes compared with some IP cameras offering more advanced WDR hardware.
• Installer tip:Confirm DVR PoC compatibility before relying on PoC. Use quality coax and connectors to preserve image quality over longer runs, and mount the camera with an appropriate field-of-view to make the most of the 5MP sensors pixel density.

For projects that need a reliable, weatherproof outdoor camera with higher-than-basic analogue resolution, the DS-2CE17H0T-IT3E offers a practical balance of image quality, installation simplicity and cost-effectiveness. Its 5MP sensor and 3.6 mm wide-angle lens produce useful detail for property and perimeter monitoring, while EXIR night illumination and several image enhancement features help maintain usable footage across varied lighting conditions. PoC compatibility reduces cabling complexity on supported systems, and the IP67 rating plus extended temperature tolerance make it suitable for exposed installations.

While not a direct replacement for advanced IP camera systems when features like higher frame rates, deep analytics or ultra-high resolutions are required, this Turbo HD bullet camera is an attractive choice when working within a coax-based platform or when budget and simplicity are priorities.

For detailed technical installation guidance, wiring diagrams and compliance advice, refer to the official product datasheet and user manual and consult a qualified installer to ensure local regulations and best practices are followed.
