6 MP Panoramic Dual-Sensor Bullet Camera, 2.8mm, AcuSense, IP67 DS-2CD2T66G2P-ISU/SL

Introduction to the DS-2CD2T66G2P-ISU/SL

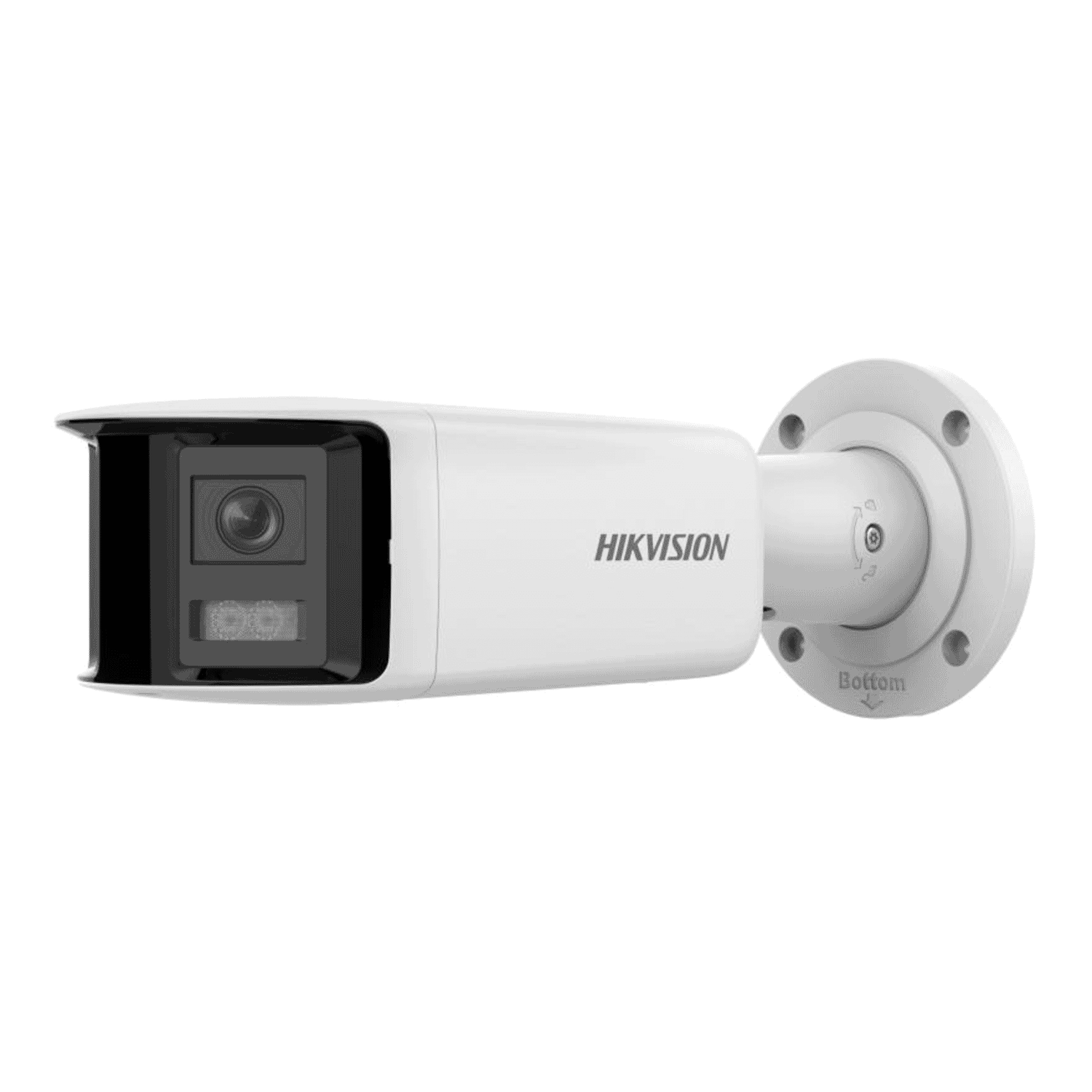

The DS-2CD2T66G2P-ISU/SL is a purpose-built 6 MP panoramic dual-sensor bullet camera that brings wide-area coverage and advanced analytics together in a compact, weatherproof package. Featuring dual 1/2.5" progressive CMOS sensors and a fixed 2.8 mm dual lens, the camera stitches a single 3632 × 1632 panoramic image with a 180° horizontal field of view. Designed for perimeter, parking, and other wide-area deployments, this model combines AcuSense human/vehicle classification, DarkFighter low-light performance, 120 dB true WDR, active deterrence (strobe and audio alarm), and two-way audio. For many sites the result is fewer cameras to cover the same area, better false-alarm filtering, and meaningful deterrence features — all in an IP67-rated housing suitable for outdoor use.

Key features at a glance

• 6 MP panoramic resolution (3632 × 1632) from dual 1/2.5" CMOS sensors
• Fixed dual 2.8 mm M12 lenses with 180° horizontal FOV
• AcuSense deep-learning human/vehicle classification to reduce false alarms
• DarkFighter low-light technology and 120 dB true WDR for high-contrast scenes
• Active deterrence including integrated strobe light and configurable audio alarm
• Built-in microphone and speaker for two-way audio; smart IR to ~40 m
• Power via PoE (IEEE 802.3af) or 12 VDC; IP67-rated for outdoor installations

Detailed specifications and the benefits they deliver

Understanding the technical details helps explain why this camera is suited to perimeter and wide-area security. Below are the most relevant specifications with the practical benefits each one provides.

• Dual 1/2.5" progressive CMOS sensors— Two image sensors feed a single panoramic 6 MP image (3632 × 1632). Benefit: continuous wide coverage without the blind spots that multiple separate cameras can create.
• Fixed 2.8 mm dual lens, 180° horizontal FOV— Broad scene capture ideal for walls, driveways, parking lots, and long façades. Benefit: reduces the number of cameras required, lowering installation and maintenance costs.
• Minimum illumination & DarkFighter— Colour sensitivity down to ~0.003 lux and 0 lux with IR. Benefit: clearer color images in very low light and improved identification at night.
• 120 dB true WDR— Handles scenes with strong backlight or mixed lighting. Benefit: facial and object details remain visible even when bright and dark areas coexist in the same scene.

• Video codecs— H.265+/H.265/H.264+/H.264/MJPEG with bitrate control. Benefit: efficient bandwidth and storage usage while preserving image quality; useful for networked sites with limited throughput.
• Frame rate— Typical 20 fps at full panoramic resolution (50/60 Hz variants). Benefit: smooth surveillance video adequate for most detection and identification tasks while balancing storage needs.
• Onboard storage— microSD/microSDHC/microSDXC support (distributor datasheets note up to 512 GB). Benefit: continuous or event-based recording locally when network connectivity is limited or for redundancy.

• AcuSense human/vehicle classification— Deep-learning filters separate human and vehicle targets from other motion. Benefit: significantly reduced false alarms from foliage, small animals, or environmental motion.
• Active deterrence— Integrated strobe light and configurable audio alarm, plus two-way audio via built-in mic and speaker. Benefit: not only detects intrusions but can actively warn or communicate with targets, which can prevent incidents before they escalate.
• Smart IR up to ~40 m— Even illumination in night scenes for reliable identification at distance.

• PoE or 12 VDC power— IEEE 802.3af support simplifies cabling and reduces installation costs. Benefit: centralised power management with compatible PoE switches or injectors.
• Network interfaces & protocols— Standard TCP/IP, HTTP/HTTPS, RTSP, and common ONVIF support. Benefit: integrates with many NVRs and VMS platforms for flexible deployment.
• IP67 weatherproof housing— Rated for outdoor conditions and a wide operating temperature range (~ -30 °C to 60 °C). Benefit: reliable performance in harsh climates and reduced need for sheltered mounting.

Use cases and deployment scenarios

The DS-2CD2T66G2P-ISU/SL excels where broad, continuous coverage and reliable alarm filtering are priorities. Typical deployments include:

• Perimeter security for commercial and industrial sites:The panoramic view monitors long fence lines and access points with fewer cameras, while AcuSense reduces nuisance alerts from leaves, rain, or small wildlife.
• Parking lots and campus grounds:Wide FOV and DarkFighter low-light capability deliver usable images across large areas during day and night; active deterrence can ward off loitering or theft attempts.
• Retail or logistics façades and loading docks:A single panoramic camera can replace multiple fixed cameras, making it simpler to monitor deliveries, access doors, and approach lanes.
• Public spaces and transit stops:Continuous coverage and two-way audio allow operators to broadcast warnings or provide information; human/vehicle classification reduces false alarms from transient motion.

How it compares with similar products

When choosing a camera for wide coverage, installers typically consider panoramic fixed cameras, multi-sensor arrays, fisheye (360°) cameras, and PTZs. Here’s how the DS-2CD2T66G2P-ISU/SL stacks up:

• Versus single-sensor 4K bullets:Single large sensors provide high resolution in a narrower field; the dual-sensor panoramic camera covers a wider field at a comparable megapixel count, reducing the number of cameras required for the same coverage area.
• Versus multi-sensor modular cameras:Multi-sensor arrays can cover several angles independently, which is useful when you need separate streams for different zones. The panoramic bullet simplifies installation and provides a continuous stitched image without visible seams — excellent for sites prioritising an uninterrupted wide view.
• Versus fisheye/360° cameras:Fisheye cameras offer complete surround coverage but require dewarping for useful views and can suffer lower detail at distance. The panoramic dual-sensor design keeps horizon-level detail across a 180° sweep and often yields better identification at range.
• Versus PTZ cameras:PTZs can track objects and zoom for detail but require active control or auto-tracking, and a single PTZ may miss events outside its current view. Panoramic fixed cameras provide continuous coverage with intelligent alarms, making them a strong complement to or replacement for multiple fixed cameras in many installations.

Conclusion: why choose the DS-2CD2T66G2P-ISU/SL?

The DS-2CD2T66G2P-ISU/SL offers a compelling balance of wide-area coverage, intelligent analytics, and active deterrence in a weatherproof, install-friendly package. Its panoramic 6 MP image reduces the need for multiple cameras, while AcuSense human/vehicle classification and DarkFighter low-light performance enhance the meaningfulness of alerts and the quality of recorded evidence. For perimeter protection, parking areas, and other wide-field security needs, this camera delivers an efficient, cost-conscious solution with modern analytics and practical deterrence features. As with any security deployment, optimal results come from correct placement, configuration, and integration with your monitoring ecosystem — but as a core device, the DS-2CD2T66G2P-ISU/SL is a strong choice for organisations seeking reliable wide-area surveillance without excessive complexity.
