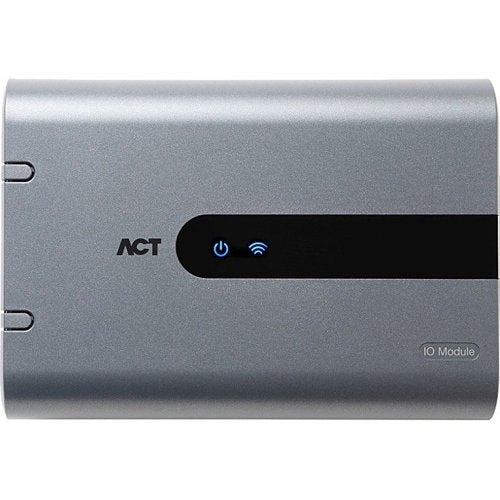

Acre V54506-B100-A100 module, Surface Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
The Acre ACT-IOM (partcode V54506-B100-A100) is an ACTpro 8 input / 8 output module: it allows an ACT controller to be used in applications where signalling to other equipment is required, such as elevator control, alarm systems, CCTV switching and I/O mapping.
Key features
- 8 supervised inputs and 8 relay outputs (1.5A @ 30V DC or 1.5A @ 50V AC)
- Up to 4 ACT-IOMs per ACT controller: up to 32 inputs and 32 outputs per controller
- Networked controllers can control up to 1000 inputs and 1000 outputs maximum
- Input and output names, a timer for each output; outputs switched off or on by log event, input or timezone
- Configuration and reporting in ACT Enterprise software; inputs and outputs logged
- Tamper protection and status LEDs in a polycarbonate housing
- Operating voltage 9 - 28V DC; current consumption 300 mA
- Surface mounting, indoor installation only
Frequently asked questions
What does the ACT-IOM add to an ACTpro controller?
8 supervised inputs and 8 relay outputs, so an ACT controller can be used where signalling to other equipment is required, such as elevator control, alarm systems and CCTV switching.
How many can be connected to one controller?
Up to 4 ACT-IOMs per ACT controller, giving up to 32 inputs and 32 outputs per controller.
What are the relay output ratings?
1.5A @ 30V DC or 1.5A @ 50V AC.
What power does it need?
An operating voltage of 9 - 28V DC; current consumption is 300 mA.
Can it be installed outdoors?
No: the device may be installed indoors only.
How is it configured?
Configuration and reporting are supported in ACT Enterprise software, where inputs and outputs are logged.
Specifications
General information
Technical information
Controls/indicators
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Acre |
|---|---|
| Manufacturer Part Number | V54506-B100-A100 |
| Product Series | ACTpro |
| Product Type | Input/Output Control Module |
| Model | ACT-IOM |
| Inputs | 8 Supervised inputs |
| Outputs | 8 Relay outputs (1.5A @ 30VDC or 1.5A @ 50VAC) |
| Operating Voltage | 9 - 28V DC |
| Current Consumption | 300 mA |
| Weight | 375 grams |
| Operating Temperature | -10 to +50 °C |
| Dimensions (HxWxD) | 250x175x60 mm |
| Mounting | Surface |
| Installation | Indoor |
| Housing | Polycarbonate |
| Modules per Controller | Up to 4 (32 inputs and 32 outputs per controller) |
General information
| Application/Usage | Alarm System, CCTV, Elevator, Indoor, Switch |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Device Supported | Controller |
|---|
Controls/indicators
| Status Indicators | LED |
|---|
Physical characteristics
| Depth | 60.00mm |
|---|---|
| Height | 250.00mm |
| Weight | 375.00g |
| Width | 175.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Compatibility | ACTpro Controller |
|---|
Attributes
| Compatibility | ACTpro Controller |
|---|---|
| Device Supported | Controller |
| Input Voltage | 12V DC |
| Weight | 375.00g |
