ACT Meters ACT1313PLUS surge suppressor/protector, Black
About this product
Please note: this is a non-returnable item (excluding faulty goods)

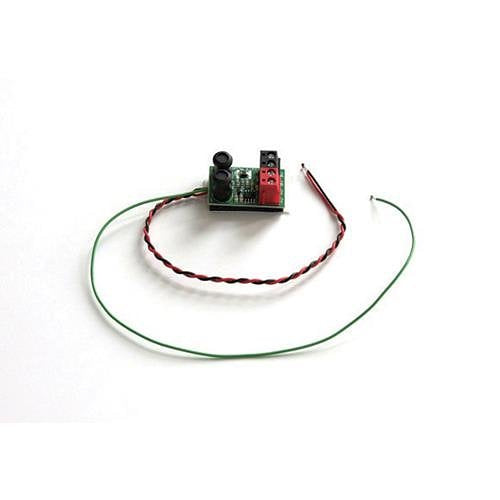

ACT Meters ACT1313PLUS is a surge suppressor/protector.
The ACT-1313-PLUS not only eliminates false alarms caused by induced AC and RFI interference but can also identify cable faults supplying DC power to motion detectors or any 12v detection devices.
Key features
- Protects alarm control equipment and detectors from induced AC and nearby lightning
- Induced AC is eliminated and RFI attenuated by up to 60dB on all DC power cables connected to the ACT-1313-PLUS preventing false alarms
- Clamps the 12VDC supply against spikes to the control panel, alarm detectors and plug-on communicators
- Connect RED+ and BLACK- across the 12VDC auxiliary supply and GREEN to mains Earth
- Low Cost - just one to the control panel and each PSU
- Bi-coloured LED will instantly indicate any potential DC power overload or low resistance fault on any cable connected
- Twin terminal blocks, 2xRed+, 2xBlack- enable power cables to be grouped and connected easily
- Max 1.5A @ 12VDC
If you are matching this to an existing installation, work from the ACT1313PLUS part number rather than the description.
Specifications
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | ACT Meters |
|---|---|
| Manufacturer Part Number | ACT1313PLUS |
| Product Type | Surge Suppressor/Protector |
Physical characteristics
| Colour | Black |
|---|
Power description
| Input Voltage | 12V DC |
|---|
Attributes
| Input Voltage | 12V DC |
|---|
