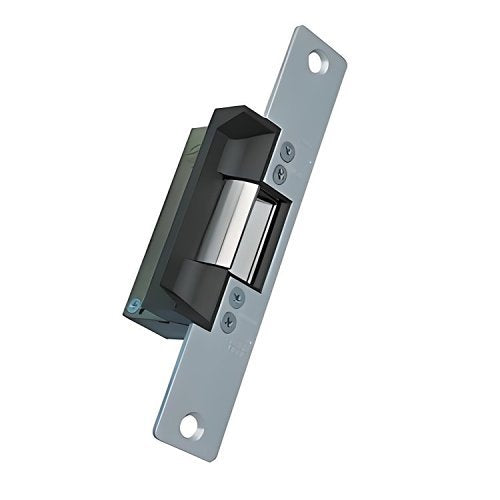

Adams Rite by ASSA ABLOY 7110-315-999 electric strike, Black
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Adams Rite by ASSA ABLOY 7110-315-999 is an electric strike from the 7100 range.
The 7110 series Electric Strike with 7-15/16" faceplates are specifically designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. It replaces earlier 002, 7510, or 7810 electric releases in either metal or wood jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700 or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2" to 5/8" latchbolt projection. Here, the electrical actuation unlocks strike jaw and thus releasing latchbolt so that the door can be opened without operating latch itself.
The Adams Rite 7110 series' extremely compact mechanism very smoothly fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8" (inches).
Key features
- Suitable for use on timber and steel doors
- The compact mechanism fits into a timber or steel jamb section as shallow as 44.45mm
- Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself
- 907 kg Holding force (2000 lb)
- Facility to change duty from failsafe to fail-secure and vice-versa
- Non-handed
- Non-handed
If you are matching this to an existing installation, work from the 7110-315-999 part number rather than the description.
-
Download
- 7110-315-999 — Product Manual
Specifications
General information
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Adams Rite by ASSA ABLOY |
|---|---|
| Manufacturer Part Number | 7110-315-999 |
| Product Series | 7100 |
| Product Type | Electric Strike |
General information
| Package Type | Box |
|---|
Technical information
| Compatible Door Frame Type | Aluminum, Metal, Wood |
|---|---|
| Compatible Door Lock Type | Cylindrical |
| Holding Strength | 907kg |
| Security Configuration | Fail Safe |
Physical characteristics
| Colour | Black |
|---|---|
| Material | Aluminum, Zinc-aluminum Alloy |
Power description
| Input Current | 1A |
|---|---|
| Input Voltage | 12V AC |
Miscellaneous
| Compatibility | 4700 (discontinued), 4900 Deadlatch and cylindrical lockset with 0.5" [127 mm] to 0.62" 159 mm latchbolt projection, Adams Rite 4500 |
|---|---|
| Features | Compact Mechanism Fits Into A Timber Or Steel Jamb Section As Shallow As 44.45 Mm, Suitable For Use On Timber And Steel Doors |
| Package Contents | Individually boxed with mounting screws mounting clips adhesive shims to accommodate jamb or stile extrusion thickness greater and less than nominal 0.12" 3.2 mm |
Attributes
| Compatibility | 4700 (discontinued), 4900 Deadlatch and cylindrical lockset with 0.5" [127 mm] to 0.62" 159 mm latchbolt projection, Adams Rite 4500 |
|---|---|
| Input Voltage | 12V AC |
| Package Contents | Individually boxed with mounting screws mounting clips adhesive shims to accommodate jamb or stile extrusion thickness greater and less than nominal 0.12" 3.2 mm |
| Input Current | 1A |
