Adastra UM90 mixer
About this product
Please note: this is a non-returnable item (excluding faulty goods)

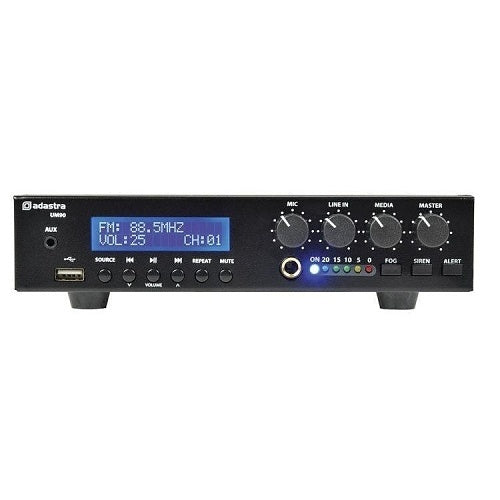

Adastra UM90 is a mixer from the UM range.
100V Mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel.
Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.
Key features
- Ultra compact form factor
- Efficient class D amplifier design
- Internal USB/FM/BT audio player
If you are matching this to an existing installation, work from the UM90 part number rather than the description.
-
Download
- UM90 — Energy Guide
- UM90 — User Manual
Specifications
Technical information
Audio
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Adastra |
|---|---|
| Manufacturer Part Number | UM90 |
| Product Series | UM |
| Product Type | Amplifier |
Technical information
| Bluetooth | Yes |
|---|---|
| Impedance | 1kO |
Audio
| Maximum Frequency Response | 18kHz |
|---|---|
| Minimum Frequency Response | 100Hz |
| RMS Output Power | 90W |
Power description
| Input Voltage | 170-264V AC |
|---|
Miscellaneous
| Package Contents | UM series compact 100V amplifier IEC power lead Rack-mounting hardware |
|---|
Attributes
| Input Voltage | 170-264V AC |
|---|---|
| Package Contents | UM series compact 100V amplifier IEC power lead Rack-mounting hardware |
| RMS Output Power | 90W |
