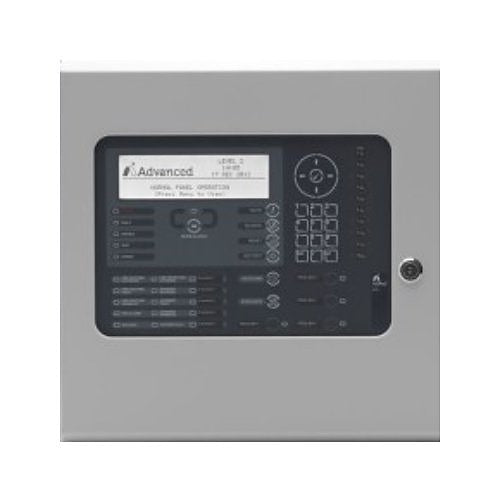

Advanced MX-5101AD alarm control panel, Grey

Please note: this is a non-returnable item (excluding faulty goods)

Advanced MX-5101AD is an alarm control panel.

The MxPro 5 series control panels are supplied with a single loop driver card, 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple 'select and click' programming aid for engineer configuration and end user operation.

The panel is compatible with AdvancedLive (UK and I only), which is the fire panel monitoring solution that enables secure, easy, real-time management of an Advanced fire system. Powerful cause-and-effect programming coupled with dynamic zoning and enhanced trace diagnostics makes the panel suitable for a wide range of site applications; from small sites to large complex multi-area systems. Fully programmable on-site via the onboard alphanumeric keypad, or via our PC-NET-022 configuration software.

An extensive suite of user-friendly Windows-based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programs which include configuration, service and logo tools to allow greater flexibility of the equipment to be fully explored. Simply adding a network card allows the panel to communicate with any other MxPro 5 fire panel, remote terminal, or network peripheral, BMS or graphical interface.

The network operates as a true peer-to-peer system and can be configured in a fault-tolerant loop or radial format.

Key features

• Connectivity to AdvancedLive (UK and I only), Ethernet connection on-board
• 20-Programmable zone / 25 System LEDs
• Apollo, Argus Vega, Hochiki and Nittan Evolution protocol support
• Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware
• Dedicated USB and RS232 Serial Port for direct PC or modem connection
• Installer friendly Auto-learn, Loop Detection and Onboard Scope facility
• Graphical display configurable for virtually any language
• Integral P-Bus for system expansion via available option cards
• Advanced Networking, peer-to-peer system, with up to 2000 zones
• Programmable push buttons
