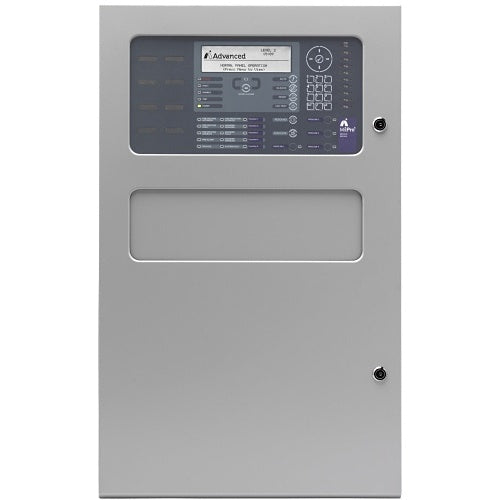

Advanced MX-5802A fire control panel, Grey

Visit Advanced Fire Alarm Equipment
Free Delivery
£ 4,719 26
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Advanced MX-5802A is a fire control panel.

The MxPro 5 series is fully expandable from 2 to 8 loops and supplied with 8 onboard sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 8 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation.

Compatible with AdvancedLive (UK and I only), which is the fire panel monitoring solution that enables secure, easy, real-time management of an Advanced fire system. Powerful cause-and-effect programming coupled with dynamic zoning and enhanced Trace Diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the onboard alphanumeric keypad, or PC-NeT-022 configuration software.

An extensive suite of user-friendly Windows-based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes to include a configuration, service and logo tool to allow greater flexibility of the equipment to be fully explored. Simply adding a network card allows the panel to communicate with any other MxPro 5 / MxPro 4 fire panel, remote terminal, or network peripherals, such as BMS or graphical interface.

The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.

Key features

  • Connectivity to AdvancedLive (UK and I only), Ethernet on-board
  • Fully expandable from 2-8 loops via plug-in loop driver cards
  • 20-Programmable Zone /25 System LEDs with slide-in labels
  • Apollo, Argus Vega, Hochiki and Nittan Evolution protocol support
  • Dual flash-based microprocessor technology with real-time clock onboard
  • Dedicated USB and RS232 serial port for direct PC or modem connection
  • Fully programmable via the onboard alphanumeric keypad, or PC configuration tools
  • Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination
  • Integral P-Bus for system expansion via available option cards
  • Advanced networking, peer-to-peer system, with up to 2000 zones

If you are matching this to an existing installation, work from the MX-5802A part number rather than the description.

£ 4,719 26
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£4,719.26 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Advanced
Manufacturer Part Number
MX-5802A
Product Type
Alarm control Panel
Certifications
Certifications & Standards
FM Approved
Display & graphics
Display Type
Non-Touchscreen
Physical characteristics
Colour
Grey
Depth
190.00mm
Height
750.00mm
Material
Steel
Width
450.00mm
Product information
Mount Type
Rack Mount
Specifications
Certifications
Display & graphics
Physical characteristics
Product information

Specifications

Brand Name Advanced
Manufacturer Part Number MX-5802A
Product Type Alarm control Panel

Certifications

Certifications & Standards FM Approved

Display & graphics

Display Type Non-Touchscreen

Physical characteristics

Colour Grey
Depth 190.00mm
Height 750.00mm
Material Steel
Width 450.00mm

Product information

Mount Type Rack Mount

Advanced MX-5802A fire control panel

Advanced MX-5802A fire control panel, Grey

Who this is for

For the installer — this is the fire control panel supplied under Advanced part number MX-5802A. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a fire control panel made by Advanced. The part number MX-5802A is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this fire control panel is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact fire control panel I have been quoted? Check the manufacturer part number MX-5802A against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Documentation is attached to this listing, but the check did not confirm that it names this exact part number. It is attached as the supplier's document for this row, and no claim on this page rests on it.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against MX-5802A answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Advanced MX-5802A fire control panel
Advanced

Advanced MX-5802A fire control panel, Grey

£4,719.26

Please note: this is a non-returnable item (excluding faulty goods)

Advanced MX-5802A is a fire control panel.

The MxPro 5 series is fully expandable from 2 to 8 loops and supplied with 8 onboard sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 8 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation.

Compatible with AdvancedLive (UK and I only), which is the fire panel monitoring solution that enables secure, easy, real-time management of an Advanced fire system. Powerful cause-and-effect programming coupled with dynamic zoning and enhanced Trace Diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the onboard alphanumeric keypad, or PC-NeT-022 configuration software.

An extensive suite of user-friendly Windows-based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes to include a configuration, service and logo tool to allow greater flexibility of the equipment to be fully explored. Simply adding a network card allows the panel to communicate with any other MxPro 5 / MxPro 4 fire panel, remote terminal, or network peripherals, such as BMS or graphical interface.

The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.

Key features

If you are matching this to an existing installation, work from the MX-5802A part number rather than the description.
