Advanced MXP-537 network interface card
About this product
Please note: this is a non-returnable item (excluding faulty goods)

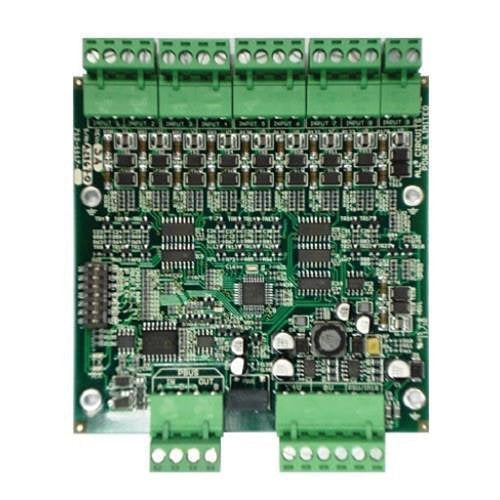

Advanced MXP-537 is a network interface card from the MxPro 5 range.
The Programmable 10 Way Programmable Monitored Input Card is an optional peripheral unit that provides 10 individually programmable monitored switch inputs. Up to 16 cards can be connected to a MxPro 5 series panel providing a maximum of up to 160 additional monitored inputs. Each input is fully programmable using the powerful dynamic cause-and-effect rules.
Key features
- Each input is monitored for open and short circuit.
- Each input is individually programmable for Fire, Fault, Alarm etc.
- Up to 16 cards can be connected providing a total of 160 additional switch inputs.
- Easily configured via PC-NET-003
If you are matching this to an existing installation, work from the MXP-537 part number rather than the description.
-
Download
- MXP-537 — Product Manual
Specifications
Certifications
Physical characteristics
Attributes
Specifications
| Brand Name | Advanced |
|---|---|
| Manufacturer Part Number | MXP-537 |
| Product Series | MxPro 5 |
| Product Type | Network Interface Card |
Certifications
| RoHS compliance | Exempt |
|---|---|
| WEEE compliance | Out of Scope |
Physical characteristics
| Depth | 18.00mm |
|---|---|
| Height | 100.00mm |
| Weight | 75.00g |
| Width | 105.00mm |
Attributes
| Weight | 75.00g |
|---|
