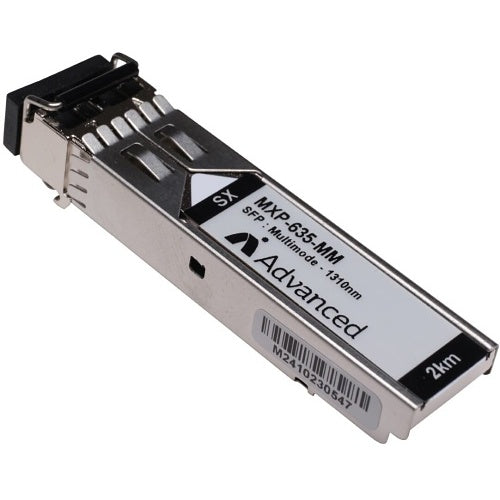

Advanced MXP-635-MM optic SFP module
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Advanced MXP-635-MM is an optic SFP module.
The Small Form Pluggable (SFP) MXP-635-SM (single-mode) is a fibre optic module allowing communications for up to a maximum distance of 20km between fibre optic converters. This SFP module can be easily fitted into the Advanced MXP-635-A and MXP-635-P products. The SFP module includes an enhanced Digital Diagnostic Monitoring (DDM) interface, which is compliant with SFF-8472.
Where the DDM interface allows real time access to the modules operating parameters such as SFP temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Key features
- Multi-mode cable type
- Up to 2km (multi-mode fibre cable)
- Ultra-Low power module
- Operating data rates up to 1.25Gbps
- Single3.3V power supply and TTL logic interface
- Hot-pluggable SFP module
If you are matching this to an existing installation, work from the MXP-635-MM part number rather than the description.
-
Download
- MXP-635-MM — Product Manual
Specifications
Specifications
| Brand Name | Advanced |
|---|---|
| Manufacturer Part Number | MXP-635-MM |
| Product Type | Connector Cable |
