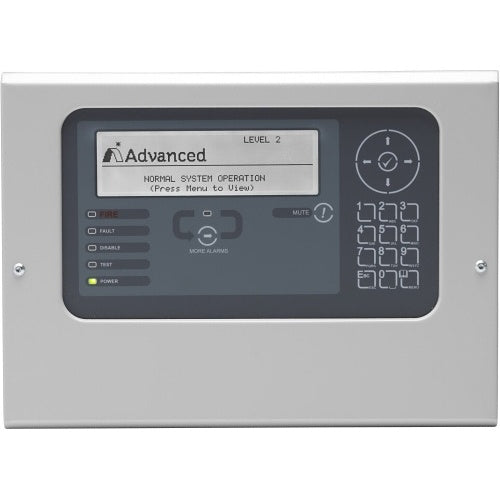

Advanced MX-5010/FT remote control terminal, Grey

Visit Advanced Fire Alarm Equipment
Free Delivery
£ 1,209 96
(Incl. VAT)

About this product

Advanced MX-5010/FT is a remote control terminal.

The remote terminals utilise the same graphical LCD user interface that can be found on the MxPro 5 series fire panels and are based upon the same advanced, flash based, microprocessor technology. The MxPro 5 panels and remote terminals can communicate over the same 2-core network cable. They feature an integral network interface incorporating a special screen termination to prevent mains frequency earth-loop currents flowing between network nodes.

The Ad-NeT network operates as a true peer-to-peer system with full cross panel reporting, control and cause-and-effect functionality of up to 2000 zones. All remote terminals incorporate buzzer mute, view, enable/disable and test facilities with dedicated system and navigation keys for simple user control. The display information is fully programmable by individual zone or sector and can display any combination of fires, faults, pre-alarms or plant alarms.

E.g. can display all information in its own sector, but can only show fire signals from other sectors of a building.

Key features

  • Programmable switch input
  • Graphical LCD Display
  • Ad-NeT/Ad-NeT+ Compatible
  • Slide-in Labels
  • Small, Robust & compact
  • 24V DC Operating voltage
  • Disable/enable options
£ 1,209 96
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,209.96 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Advanced
Manufacturer Part Number
MX-5010/FT
Product Type
Remote Control Terminal
Technical information
Device Supported
Fire Alarm Control Panel
Certifications
RoHS compliance
Exempt
WEEE compliance
Out of Scope
Physical characteristics
Colour
Grey
Depth
44.00mm
Height
218.00mm
Width
300.00mm
Power description
Input Voltage
24V DC
Miscellaneous
Compatibility
MxPro 5 Series Fire Panels
Attributes
Compatibility
MxPro 5 Series Fire Panels
Device Supported
Fire Alarm Control Panel
Features
LED Indicator
Input Voltage
24V DC
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name Advanced
Manufacturer Part Number MX-5010/FT
Product Type Remote Control Terminal

Technical information

Device Supported Fire Alarm Control Panel

Certifications

RoHS compliance Exempt
WEEE compliance Out of Scope

Physical characteristics

Colour Grey
Depth 44.00mm
Height 218.00mm
Width 300.00mm

Power description

Input Voltage 24V DC

Miscellaneous

Compatibility MxPro 5 Series Fire Panels

Attributes

Compatibility MxPro 5 Series Fire Panels
Device Supported Fire Alarm Control Panel
Features LED Indicator
Input Voltage 24V DC

Advanced MX-5010/FT remote control terminal

Advanced MX-5010/FT remote control terminal, Grey

Who this is for

For the installer — this is the remote control terminal supplied under Advanced part number MX-5010/FT. Specify it by that part number.

In plain English: this is a remote control terminal made by Advanced. The part number MX-5010/FT is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this remote control terminal is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact remote control terminal I have been quoted? Check the manufacturer part number MX-5010/FT against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Advanced MX-5010/FT remote control terminal
Advanced

Advanced MX-5010/FT remote control terminal, Grey

£1,209.96

Advanced MX-5010/FT is a remote control terminal.

The remote terminals utilise the same graphical LCD user interface that can be found on the MxPro 5 series fire panels and are based upon the same advanced, flash based, microprocessor technology. The MxPro 5 panels and remote terminals can communicate over the same 2-core network cable. They feature an integral network interface incorporating a special screen termination to prevent mains frequency earth-loop currents flowing between network nodes.

The Ad-NeT network operates as a true peer-to-peer system with full cross panel reporting, control and cause-and-effect functionality of up to 2000 zones. All remote terminals incorporate buzzer mute, view, enable/disable and test facilities with dedicated system and navigation keys for simple user control. The display information is fully programmable by individual zone or sector and can display any combination of fires, faults, pre-alarms or plant alarms.

E.g. can display all information in its own sector, but can only show fire signals from other sectors of a building.
