Aiphone IX-SSA audio door station, Flush Mount

Visit Door Entry & Intercom Systems
Free Delivery
£ 787 83
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

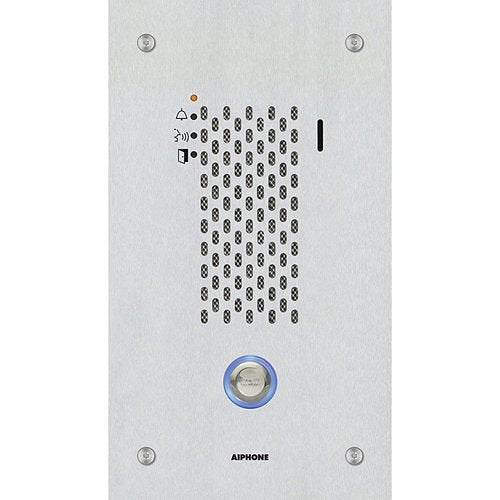

Aiphone IX-SSA is an audio door station from the IX range.

The IX-SSA is a flush mount IP addressable door station. It is weather resistant (IP65) and connects to the network using Cat-5e/6 cable. It is SIP compliant and can be used with or without other IX Series stations.

Audio can be captured on a micro SD card. The station can be programmed to call up to 20 different stations with 3 different call levels to choose from. The station has a 600? output that can be used for paging or communication.

There are 2 contact outputs that can be programmed to trigger during door release, when the 600? output is used, or based on the status of the station. There are 6 inputs that can be used to trigger an outgoing call or answer a call/page. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message).

The stations have audible and visual indications for calling, communication, and door release.

Key features

  • SIP 2.0 Compliant
  • Illuminated call button indicator
  • Slot for micro SD card (not provided by Aiphone)
  • Weather and vandal resistant (IP65)
  • 2 contact outputs
  • 6 trigger inputs

If you are matching this to an existing installation, work from the IX-SSA part number rather than the description.

£ 787 83
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£787.83 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Aiphone
Manufacturer Part Number
IX-SSA
Product Series
IX
Product Type
Intercom Sub Station
General information
Application/Usage
Door Entry
Technical information
Connectivity Technology
Wired
Power Consumption
3.3600W
Physical characteristics
Durability
Vandal Resistant
Form Factor
Flush Mount
Height
265.10mm
Material
Stainless Steel
Width
149.20mm
Power description
Input Voltage
24V DC
Power Source
AC Power, PoE (Power over Ethernet)
Product information
Mount Type
Flush Mount
Miscellaneous
Environmental status
Yes
Attributes
Input Voltage
24V DC
Power Source
AC Power, PoE (Power over Ethernet)
Specifications
General information
Technical information
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Aiphone
Manufacturer Part Number IX-SSA
Product Series IX
Product Type Intercom Sub Station

General information

Application/Usage Door Entry

Technical information

Connectivity Technology Wired
Power Consumption 3.3600W

Physical characteristics

Durability Vandal Resistant
Form Factor Flush Mount
Height 265.10mm
Material Stainless Steel
Width 149.20mm

Power description

Input Voltage 24V DC
Power Source AC Power, PoE (Power over Ethernet)

Product information

Mount Type Flush Mount

Miscellaneous

Environmental status Yes

Attributes

Input Voltage 24V DC
Power Source AC Power, PoE (Power over Ethernet)

Aiphone IX-SSA audio door station

Aiphone IX-SSA audio door station, Flush Mount

Who this is for

For the installer — this is the audio door station supplied under Aiphone part number IX-SSA. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an audio door station made by Aiphone. The part number IX-SSA is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this audio door station is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact audio door station I have been quoted? Check the manufacturer part number IX-SSA against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IX-SSA answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Aiphone IX-SSA audio door station
Aiphone

Aiphone IX-SSA audio door station, Flush Mount

£787.83

Please note: this is a non-returnable item (excluding faulty goods)

Aiphone IX-SSA is an audio door station from the IX range.

The IX-SSA is a flush mount IP addressable door station. It is weather resistant (IP65) and connects to the network using Cat-5e/6 cable. It is SIP compliant and can be used with or without other IX Series stations.

Audio can be captured on a micro SD card. The station can be programmed to call up to 20 different stations with 3 different call levels to choose from. The station has a 600? output that can be used for paging or communication.

There are 2 contact outputs that can be programmed to trigger during door release, when the 600? output is used, or based on the status of the station. There are 6 inputs that can be used to trigger an outgoing call or answer a call/page. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message).

The stations have audible and visual indications for calling, communication, and door release.
