Aiphone MC-60/4 handset, Pedestal, Surface Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)

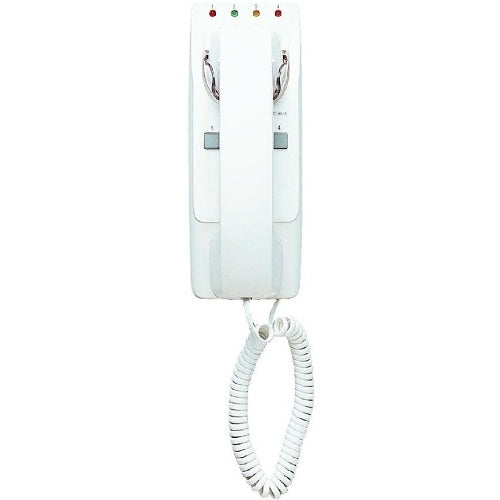

Aiphone MC-60/4 is a handset.
The MC-60/4A is a versatile handset designed for seamless communication. with four communication channels and LED indicators, it ensures clear and efficient interaction. The crosstalk reduction circuit enhances audio clarity, while the reinforced modular coiled cord adds durability. Enjoy the convenience of an easy access paging button and the privacy offered by the handset.
This device is surface mountable directly to a wall or can be pedestal mounted with the MC-S12. It supports a wire distance of up to 1,700 feet with 22AWG wire and 4,000 feet with 18AWG wire. Experience reliable performance with a power consumption of just 70mA in paging mode.
Key features
- Expanded 4 line capacity with separate paging channel
- Red LED line indicators
- 60 station capacity
- Easy 7 conductor wiring
- Crosstalk reduction circuit
- Durable ABS handset and chassis with a Lexan cradle
- Tamper resistant and high durability phone-style modular coil cord
- Compatible with MC-3 stations
If you are matching this to an existing installation, work from the MC-60/4 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Aiphone |
|---|---|
| Manufacturer Part Number | MC-60/4 |
| Product Type | Handset |
Technical information
| Number of Sub Stations Supported | 60 |
|---|
Physical characteristics
| Depth | 76.20mm |
|---|---|
| Height | 228.60mm |
| Width | 76.20mm |
Power description
| Input Voltage | 24V DC |
|---|
Product information
| Mount Type | Pedestal Mount, Surface Mount |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 24V DC |
|---|
