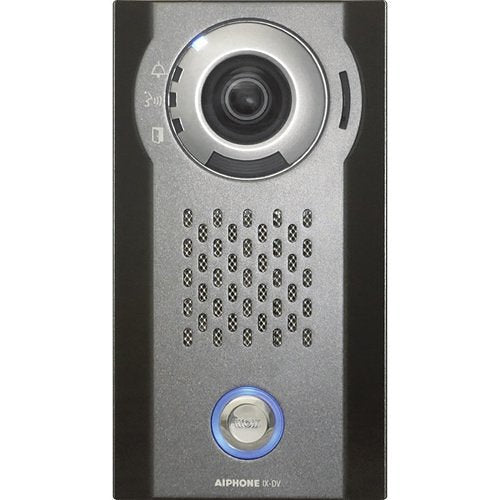

Aiphone IX-DV video door entry system, 1MP

Free Delivery
£ 880 43
(Incl. VAT)

About this product

Aiphone IX-DV is a video door entry system from the IX range.

The IX-DV (surface mount) and IX-DVF (flush mount) are weather resistant, IP video door stations. They connect to a network using Cat-5e/6 cable and are both SIP compliant. Each station is equipped with a 1.23 megapixel fixed color camera.

The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed to 3rd party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card.

The IX-DV and IX-DVF can be programmed to call up to 20 different stations. There are three different call level selections. The stations have a 600Ω output that can be used for paging or communication.

There are two contact outputs that can be programmed to trigger during door release, when the 600Ω output is used or based on the status of the station. There are six inputs that can be used to trigger an outgoing call or answer a call/page. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, ect.).

The stations have audible and visual indications for calling, communication, and door release.

Key features

  • Use SIP to integrate with Cisco Unified Call Manager and answer calls off-site
  • ONVIF Profile S Compliant
  • 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
  • 1.23 megapixel fixed color video camera
  • Camera vertical adjustment +15º, 0º, or -8º (manual)
  • White LED for low light illumination
  • Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
  • IP65 rated, weather resistant
  • Stainless steel faceplate
  • 2 contact outputs (door release, external signaling)

If you are matching this to an existing installation, work from the IX-DV part number rather than the description.

£ 880 43
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£880.43 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Aiphone
Manufacturer Part Number
IX-DV
Product Series
IX
Product Type
Video Door Phone Sub Station
General information
Application/Usage
Door Entry
Technical information
Connectivity Technology
Wired
Effective resolution
1MP
Power Consumption
5.2800W
Camera
Image Sensor Type
CMOS
Display & graphics
Vertical Viewing Angle
100°
Exposure
Minimum Illumination
5.0000lux
Physical characteristics
Colour
Silver
Depth
52.40mm
Durability
Vandal Resistant, Weather Resistant
Form Factor
Surface Mount
Height
204.80mm
Material
Aluminum
Width
114.30mm
Power description
Input Voltage
24V DC
Product information
Mount Type
Surface Mount
Miscellaneous
Environmental status
Yes
Attributes
Input Voltage
24V DC
Package Contents
IX-DV Video Door Phone Sub Station Bracket

Specifications

Brand Name Aiphone
Manufacturer Part Number IX-DV
Product Series IX
Product Type Video Door Phone Sub Station

General information

Application/Usage Door Entry

Technical information

Connectivity Technology Wired
Effective resolution 1MP
Power Consumption 5.2800W

Camera

Image Sensor Type CMOS

Display & graphics

Vertical Viewing Angle 100°

Exposure

Minimum Illumination 5.0000lux

Physical characteristics

Colour Silver
Depth 52.40mm
Durability Vandal Resistant, Weather Resistant
Form Factor Surface Mount
Height 204.80mm
Material Aluminum
Width 114.30mm

Power description

Input Voltage 24V DC

Product information

Mount Type Surface Mount

Miscellaneous

Environmental status Yes

Attributes

Input Voltage 24V DC
Package Contents IX-DV Video Door Phone Sub Station Bracket

Aiphone IX-DV video door entry system

Aiphone IX-DV video door entry system, 1MP

Who this is for

For the installer — this is the video door entry system supplied under Aiphone part number IX-DV. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a video door entry system made by Aiphone. The part number IX-DV is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this video door entry system is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact video door entry system I have been quoted? Check the manufacturer part number IX-DV against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IX-DV answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
