Aiphone IX-DVM video door entry system, 1MP

Free Delivery
£ 910 39
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

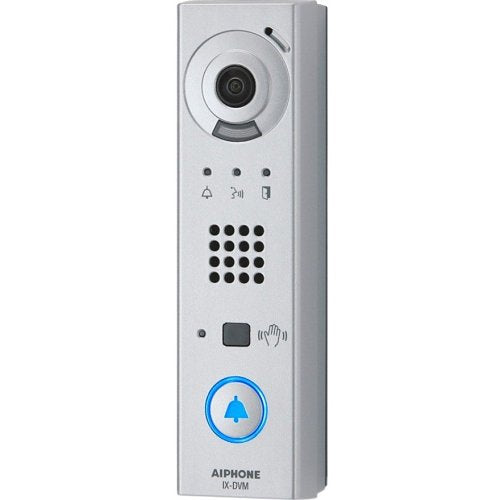

Aiphone IX-DVM is a video door entry system from the IX range.

The IX-DVM is a UL Listed mullion-mount IP video door station that is weather and vandal resistant. The station contains a contactless call sensor for touchless call-in. The touchless sensor incorporates a Class 1 laser.

The station is equipped with a 720p HD, wide dynamic range fixed color camera that can be streamed to third party devices using ONVIF® Profile S or RTSP. Video can be captured on a microSD™ card. The IX-DVM can be programmed to call up to 20 different stations with three different call level selections.

Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, and more). The stations have audible and LED indicators for calling, communication, and door release. There is one contact output that can be used for door release, and one input that can be used to trigger an outgoing call or answer a call/page.

Key features

  • Small form factor for mullion mounting
  • Contactless call sensor
  • SIP 2.0 compliant

If you are matching this to an existing installation, work from the IX-DVM part number rather than the description.

£ 910 39
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£910.39 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Aiphone
Manufacturer Part Number
IX-DVM
Product Series
IX
Product Type
Video Door Phone Sub Station
General information
Application/Usage
Door Entry
Technical information
Connectivity Technology
Wired
Effective resolution
1MP
Power Consumption
4.6000W
Wiring Type
6-Wire
Camera
Horizontal Viewing Angle
170°
Display & graphics
Vertical Viewing Angle
100°
Physical characteristics
Colour
Silver
Depth
54.00mm
Durability
Vandal Resistant
Form Factor
Mullion Mount
Height
172.21mm
Width
47.49mm
Power description
Input Voltage
24V AC
Product information
Mount Type
Door Mount
Miscellaneous
Additional Information
Power Source: PoE (IEEE 802.3af class 0) Camera: 720p HD, wide dynamic range Class 1 laser: This product incorporates a Class 1 laser. (transmissions conform with IEC 60825-1:2014) Relay Output Output Met
Compatibility
Aiphone IX Series
Environmental status
Yes
Attributes
Compatibility
Aiphone IX Series
Input Voltage
24V AC
Additional Information
Power Source: PoE (IEEE 802.3af class 0) Camera: 720p HD, wide dynamic range Class 1 laser: This product incorporates a Class 1 laser. (transmissions conform with IEC 60825-1:2014) Relay Output Output Met

Specifications

Brand Name Aiphone
Manufacturer Part Number IX-DVM
Product Series IX
Product Type Video Door Phone Sub Station

General information

Application/Usage Door Entry

Technical information

Connectivity Technology Wired
Effective resolution 1MP
Power Consumption 4.6000W
Wiring Type 6-Wire

Camera

Horizontal Viewing Angle 170°

Display & graphics

Vertical Viewing Angle 100°

Physical characteristics

Colour Silver
Depth 54.00mm
Durability Vandal Resistant
Form Factor Mullion Mount
Height 172.21mm
Width 47.49mm

Power description

Input Voltage 24V AC

Product information

Mount Type Door Mount

Miscellaneous

Additional Information Power Source: PoE (IEEE 802.3af class 0) Camera: 720p HD, wide dynamic range Class 1 laser: This product incorporates a Class 1 laser. (transmissions conform with IEC 60825-1:2014) Relay Output Output Met
Compatibility Aiphone IX Series
Environmental status Yes

Attributes

Compatibility Aiphone IX Series
Input Voltage 24V AC
Additional Information Power Source: PoE (IEEE 802.3af class 0) Camera: 720p HD, wide dynamic range Class 1 laser: This product incorporates a Class 1 laser. (transmissions conform with IEC 60825-1:2014) Relay Output Output Met

Aiphone IX-DVM video door entry system

Aiphone IX-DVM video door entry system, 1MP

Who this is for

For the installer — this is the video door entry system supplied under Aiphone part number IX-DVM. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a video door entry system made by Aiphone. The part number IX-DVM is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this video door entry system is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact video door entry system I have been quoted? Check the manufacturer part number IX-DVM against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IX-DVM answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Aiphone IX-DVM video door entry system
Aiphone

Aiphone IX-DVM video door entry system, 1MP

£910.39

Please note: this is a non-returnable item (excluding faulty goods)

Aiphone IX-DVM is a video door entry system from the IX range.

The IX-DVM is a UL Listed mullion-mount IP video door station that is weather and vandal resistant. The station contains a contactless call sensor for touchless call-in. The touchless sensor incorporates a Class 1 laser.

The station is equipped with a 720p HD, wide dynamic range fixed color camera that can be streamed to third party devices using ONVIF® Profile S or RTSP. Video can be captured on a microSD™ card. The IX-DVM can be programmed to call up to 20 different stations with three different call level selections.

Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, and more). The stations have audible and LED indicators for calling, communication, and door release. There is one contact output that can be used for door release, and one input that can be used to trigger an outgoing call or answer a call/page.

Key features

If you are matching this to an existing installation, work from the IX-DVM part number rather than the description.
