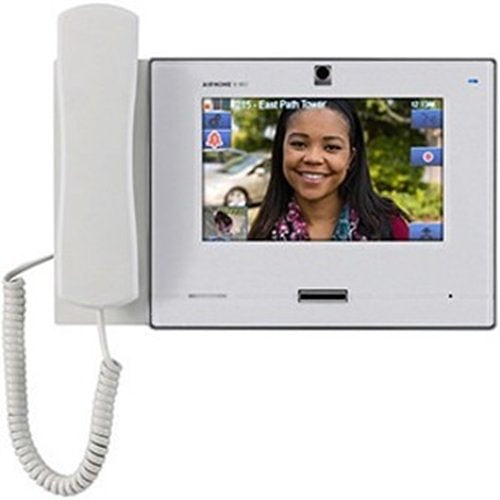

Aiphone IX-MV7-HW video master station, 7"
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Aiphone IX-MV7-HW is a video master station from the IX range.
The IX-MV7-H is an IP addressable hands-free or handset master station with a 7" color touchscreen. It can be wall or desk mounted (desk stand included). It connects to a network using Cat-5e/6 cable and is SIP compliant.
Audio and video of active conversations can be captured and stored on a microSD™ card. Each master station has an address book of 500 stations and can monitor a single station or scan monitor several stations with-in the address book. The master station offers line supervision and a scheduled device check of stations in its address book.
It has the ability to page all units or groups of units and offers bell scheduling with 50 events per day. The master station has 8 speed dial buttons that can be used to call, page, monitor, or control a contact closure. It has a built in camera with privacy shutter.
The master station can view a selected intercom's camera as well as an associated ONVIF Profile S camera by using the picture in picture function. It has the ability to release the door that is associated with the station that it is communicating with. Stations can be called by using the directory or by direct dialing the stations number.
The master is available in black (IX-MV7-HB) or white (IX-MV7-HW).
Key features
- Includes Master Station & Multi-angled desk stand (30°, 45°, 60°)
- 7” TFT color LCD touchscreen
- Fixed color video camera with privacy shutter
- SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
- ONVIF Profile S Compliant
- 802.3af PoE, Class 0
If you are matching this to an existing installation, work from the IX-MV7-HW part number rather than the description.
Specifications
General information
Technical information
Camera
Display & graphics
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Aiphone |
|---|---|
| Manufacturer Part Number | IX-MV7-HW |
| Product Series | IX |
| Product Type | Video Master Station |
General information
| Application/Usage | Door Entry |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Number of Sub Stations Supported | 500 |
| Power Consumption | 4.3200W |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Screen Size | 7" |
|---|---|
| Touchscreen | Yes |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 55.60mm |
| Height | 204.80mm |
| Width | 279.40mm |
Power description
| Power Source | PoE (Power over Ethernet) |
|---|
Product information
| Display Screen Type | TFT LCD (Thin Film Transistor) |
|---|---|
| Mount Type | Desktop Mount, Wall Mount |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Package Contents | IX-MV7-HW Video Master Station Desk Stand |
Attributes
| Package Contents | IX-MV7-HW Video Master Station Desk Stand |
|---|---|
| Power Source | PoE (Power over Ethernet) |
