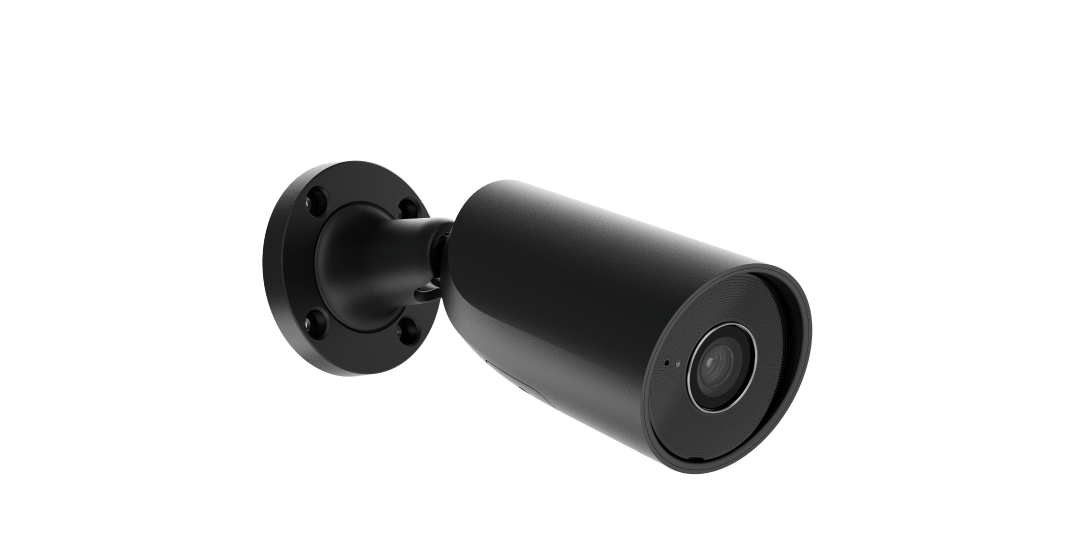

Ajax 79027.217.BL1 AI-Powered Bullet IP Camera, 8MP, 4mm
About this product
The Ajax BulletCam (8 Mp/4 mm), model 79027.217.BL1, is a wired AI-powered IP security camera with an 85° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records 8 MP (3840 × 2160) video and uses AI object detection to pick out people, pets and vehicles.
Key features
- 4 mm fixed lens, f/1.6, horizontal field of view 75–85°
- Smart IR illumination up to 50 m, adjusting intensity in real time to avoid overexposure
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for audio recording at the scene
- PoE (802.3at/af, Class 3) or 12 V⎓ power
- IP66 and IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
How far can the BulletCam see in the dark?
Smart IR illumination reaches up to 50 m, with automatic adjustment of intensity in real time to avoid overexposure.
How is the camera powered?
By PoE (802.3at/af, 36–57 V, Class 3) or by a 12 V⎓, 1 A power supply unit. Average power consumption is 12 W.
Where is the video stored?
On a microSD card up to 256 GB (Class V30 or faster), or on an Ajax NVR. The memory card is not included in the complete set.
What can the AI detect?
AI object detection recognises people, pets and vehicles. Motion detection uses software image frame analysis.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, rated IP66 and IK08, and operates from −30 °C to +60 °C with humidity up to 90%.
Is the camera ONVIF conformant?
Yes. It is conformant with ONVIF® Profile G and S, and supports RTSP.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 79027.217.BL1 |
| Manufacturer Part Number (MPN) | 79027.217.BL1 |
| Image sensor | 8 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 117.5 m, Observation: 47 m, Recognition: 23.5 m, Identification: 11.6 m |
| Maximum illumination distance | IR LED: up to 50 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Maximum resolution | 8 MP (3840 × 2160) |
| Frame rate | up to 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR |
| Audio | Built-in microphone |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | BulletCam (8 Mp/4 mm), Installation template, Installation kit, Quick start guide |
| Colour | Black |
