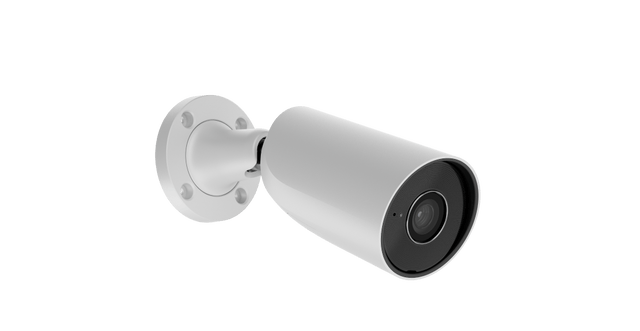

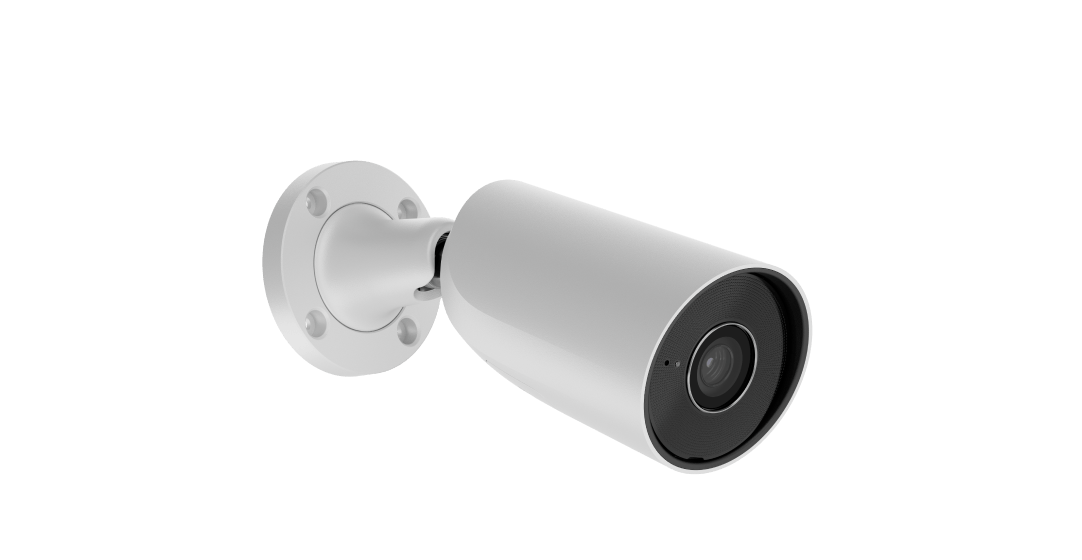

Ajax 79028.217.WH1 AI-Powered Bullet IP Camera, 5MP, 2.8mm
About this product
The Ajax BulletCam (5 Mp/2.8 mm), model 79028.217.WH1 in White, is a wired AI-powered IP security camera with a 110° viewing angle, IR illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. Its 5 MP CMOS sensor records up to 5 MP (2880 × 1620), and AI object detection picks out people, pets and vehicles.
Key features
- 5 MP CMOS image sensor (1/2.7" type), maximum resolution 5 MP (2880 × 1620)
- 2.8 mm fixed lens, f/1.6, horizontal field of view 100–110°
- IR illumination with intelligent lighting control that adjusts IR LED intensity in real time to prevent overexposure
- AI object detection of people, pets and vehicles
- 120 dB True WDR
- Built-in microphone for audio recording at the scene, with the corresponding settings
- PoE (802.3at/af, Class 3) or 12 V⎓, 1 A power supply unit
- IP66 and IK08 protection, operating from −30 °C to +60 °C
Frequently asked questions
How is the BulletCam (5 Mp/2.8 mm) powered?
By PoE (802.3at/af, 36–57 V, Class 3) or by a 12 V⎓, 1 A power supply unit. Average power consumption is 12 W.
How wide is the view?
The 2.8 mm fixed lens gives a horizontal field of view of 100–110°, vertical 50–60° and diagonal 125–135°.
Where is the video stored?
On a microSD card up to 256 GB (Class V30 or faster), or on an Ajax NVR. The memory card is not included in the complete set.
What can the AI detect?
AI object detection recognises people, pets and vehicles. Motion detection uses software image frame analysis.
Can it be installed outdoors?
Yes. It is for outdoor and indoor use, rated IP66 and IK08, and operates from −30 °C to +60 °C with humidity up to 90%.
Does it work with Ajax alarms?
Yes. Ajax detectors can trigger selected cameras to start recording, and the recorded event is immediately sent to the mobile or desktop monitoring app.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 79028.217.WH1 |
| Manufacturer Part Number (MPN) | 79028.217.WH1 |
| Image sensor | 5 MP CMOS, 1/2.7" type |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 100–110°, vertical: 50–60°, diagonal: 125–135° |
| DORI distance | Detection: 65 m, Observation: 26 m, Recognition: 13 m, Identification: 6.5 m |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR |
| Audio | Built-in microphone |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af, 36–57 V, Class 3 |
| Average power consumption | 12 W |
| Power supply unit | 12 V⎓, 1 A |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Complete set | BulletCam (5 Mp/2.8 mm), Installation template, Installation kit, Quick start guide |
| Colour | White |
