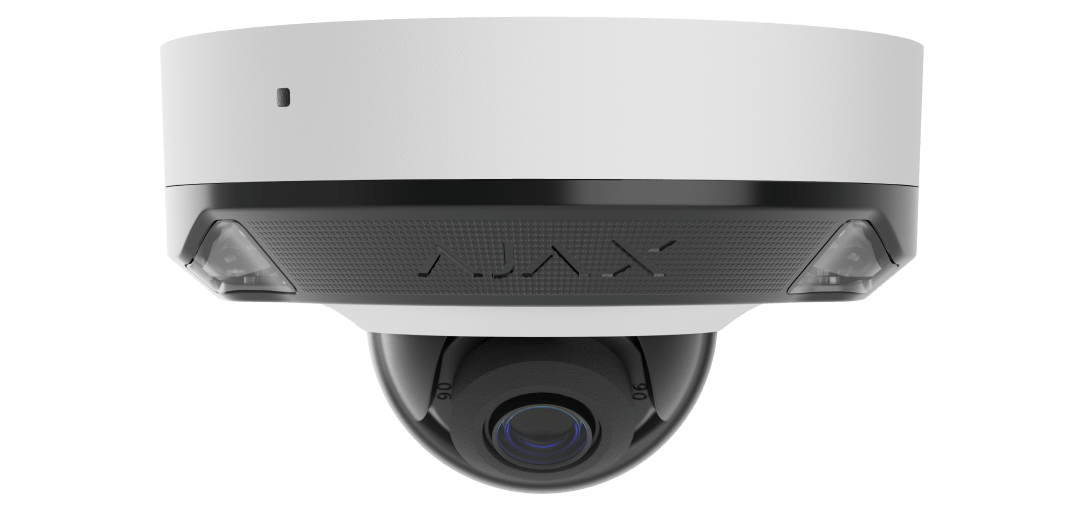

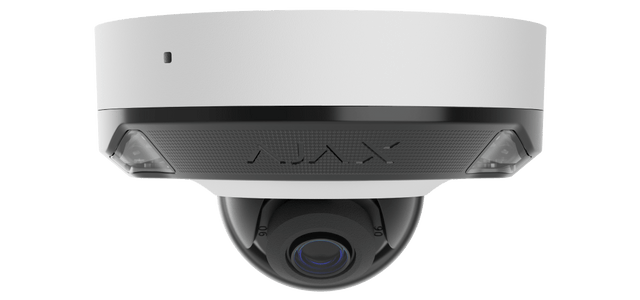

Ajax 126271.214.WH1 AI-Powered Dome IP Camera, 5MP, 4mm

Name: Ajax 126271.214.WH1 AI-Powered Dome IP Camera, 5MP, 4mm
Brand: Ajax
SKU: 126271.214.WH1
Price: 135.01 GBP
Availability: InStock

Visit Ajax Security Systems

Free Delivery

Save £27.00

About this product

The Ajax DomeCam Mini HL (5 Mp/4 mm), model 126271.214.WH1, is a wired AI-powered security IP camera with an 85° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records 5 MP (2880 × 1620) video and uses AI object detection to pick out people, pets and vehicles.

Key features

4 mm fixed lens, f/1.6, horizontal field of view 75–85°
Hybrid illumination: white LED and IR LED, each up to 15 m
AI object detection of people, pets and vehicles
120 dB True WDR
Built-in microphone for audio recording at the scene
PoE (802.3at/af) or 12 V DC power
IP66 and IK08 protection, operating from −30 °C to +60 °C

Frequently asked questions

How far can the DomeCam Mini HL see in the dark?

The maximum illumination distance is up to 15 m with the IR LED and up to 15 m with the white LED. Minimum illumination is 0 lx in B/W.

How is the camera powered?

By PoE (802.3at/af), at up to 7.3 W maximum, or by a 12 V⎓ ± 20%, 1 A external power supply unit, at up to 6.3 W maximum.

Where is the video stored?

On a microSD card up to 256 GB (Class V30 or faster), or on an Ajax NVR. The memory card is not included in the complete set.

What can the AI detect?

AI object detection recognises people, pets and vehicles. Motion detection uses software image frame analysis.

Can it be installed outdoors?

Yes. It is for outdoor and indoor use, rated IP66 and IK08, and operates from −30 °C to +60 °C with humidity up to 90%.

Is the camera ONVIF conformant?

Yes. It is conformant with ONVIF® Profile G and S, and supports RTSP.

Download

126271.214.WH1 Tech Sheet

Save £27.00

Google Top Quality Store · Rated Exceptional

Ships from United Kingdom

28 days hassle free returns

Secure payment transactions

Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME

Why add a product care plan:

Full breakdown support
Full replacement if we can't repair your product within 10 days
All parts, labour and callouts included if necessary
Extended manufacturer warranty with faster turn arounds
Excludes accidental & cosmetic damages

By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk

WME Care

Info about this product

Technical Details

Specifications

Brand
Ajax

Model
126271.214.WH1

Manufacturer Part Number (MPN)
126271.214.WH1

Image sensor
5 MP CMOS, 1/2.8" type

Lens focal length
4 mm

Maximum aperture
f/1.6

Lens iris type
fixed

Lens focal type
fixed

Field of view
horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115°

DORI distance
Detection: 86 m, Observation: 34.4 m, Recognition: 17.2 m, Identification: 8.6 m

Maximum illumination distance
white LED: up to 15 m, IR LED: up to 15 m

Minimum illumination
color: 0.005 lx, B/W: 0 lx

Signal-to-noise ratio (SNR)
more than 52 dB

Maximum resolution
5 MP (2880 × 1620)

Frame rate
up to 25 fps

Image rotation
0°, 180°

Video codec
H.265, H.264

WDR
120 dB (True WDR)

Storage
microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR

Audio
Built-in microphone

Audio codec
G711-ULAW, G711-ALAW, G726, G722

AI object detection
People, Pets, Vehicles

Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)

Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS

ONVIF®
conformant with ONVIF® Profile G and S

Video protocol
JetSparrow

PoE standard
802.3at/af

PoE power consumption
maximum: up to 7.3 W, average: up to 6.9 W

External power supply unit
12 V⎓ ± 20%, 1 A

12 V DC power consumption
maximum: up to 6.3 W, average: up to 5.9 W

Dimensions
114 × 114 × 67 mm

Weight
430 g

Operating temperature range
from −30 °C to +60 °C

Operating humidity
up to 90%

Protection class
IP66, IK08

Complete set
DomeCam Mini HL (5 Mp/4 mm), Installation template, Installation kit, Quick start guide

Colour
White

Specifications

Brand	Ajax
Model	126271.214.WH1
Manufacturer Part Number (MPN)	126271.214.WH1
Image sensor	5 MP CMOS, 1/2.8" type
Lens focal length	4 mm
Maximum aperture	f/1.6
Lens iris type	fixed
Lens focal type	fixed
Field of view	horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115°
DORI distance	Detection: 86 m, Observation: 34.4 m, Recognition: 17.2 m, Identification: 8.6 m
Maximum illumination distance	white LED: up to 15 m, IR LED: up to 15 m
Minimum illumination	color: 0.005 lx, B/W: 0 lx
Signal-to-noise ratio (SNR)	more than 52 dB
Maximum resolution	5 MP (2880 × 1620)
Frame rate	up to 25 fps
Image rotation	0°, 180°
Video codec	H.265, H.264
WDR	120 dB (True WDR)
Storage	microSD (up to 256 GB, Class V30 or faster, not included), Ajax NVR
Audio	Built-in microphone
Audio codec	G711-ULAW, G711-ALAW, G726, G722
AI object detection	People, Pets, Vehicles
Port	1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS
ONVIF®	conformant with ONVIF® Profile G and S
Video protocol	JetSparrow
PoE standard	802.3at/af
PoE power consumption	maximum: up to 7.3 W, average: up to 6.9 W
External power supply unit	12 V⎓ ± 20%, 1 A
12 V DC power consumption	maximum: up to 6.3 W, average: up to 5.9 W
Dimensions	114 × 114 × 67 mm
Weight	430 g
Operating temperature range	from −30 °C to +60 °C
Operating humidity	up to 90%
Protection class	IP66, IK08
Complete set	DomeCam Mini HL (5 Mp/4 mm), Installation template, Installation kit, Quick start guide
Colour	White

Ajax DomeCam Mini HL • 5MP 4mm • White infographic: See the scene in detail. — See the scene in detail. 5 MP. Up to 5 megapixels for detailed video. Illustrative setting.

Ajax DomeCam Mini HL • 5MP 4mm • White infographic: Power through your network. — Power through your network. PoE. Power and data via Ethernet. PoE supply needed.

Ajax 126271.214.WH1 AI-Powered Dome IP Camera, 5MP, 4mm

What it does

Hybrid illumination uses white LEDs and IR LEDs, each reaching up to 15 m, and intelligent lighting control adjusts their intensity in real time to prevent overexposure. Minimum illumination is 0.005 lx in colour and 0 lx in B/W.

DORI distances are Detection 86 m, Observation 34.4 m, Recognition 17.2 m and Identification 8.6 m.

Where it is used

The camera is for outdoor and indoor use. It is rated IP66 and IK08, with an operating temperature range from −30 °C to +60 °C and operating humidity up to 90%.

Installation notes

Power comes over PoE (802.3at/af), at up to 7.3 W maximum, or from a 12 V⎓ ± 20%, 1 A external power supply unit, at up to 6.3 W maximum. The network port is 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps).

Video can be stored on microSD up to 256 GB (Class V30 or faster; the card is not included) or on an Ajax NVR. The camera is conformant with ONVIF® Profile G and S.

The complete set includes the camera, an installation template, an installation kit and a quick start guide.

Day to day

The camera uses JetSparrow, a fast and encrypted peer-to-peer video protocol developed by Ajax Systems. Ajax detectors can be set to trigger selected cameras to start recording, and the recorded event goes straight to the mobile or desktop monitoring app.

All access rights are fully configurable by the device owner. Sabotage protection includes an mTLS encrypted connection, authentication via Ajax Cloud, Secure Boot against firmware spoofing and OTA signature verification for secure automatic firmware updates.
