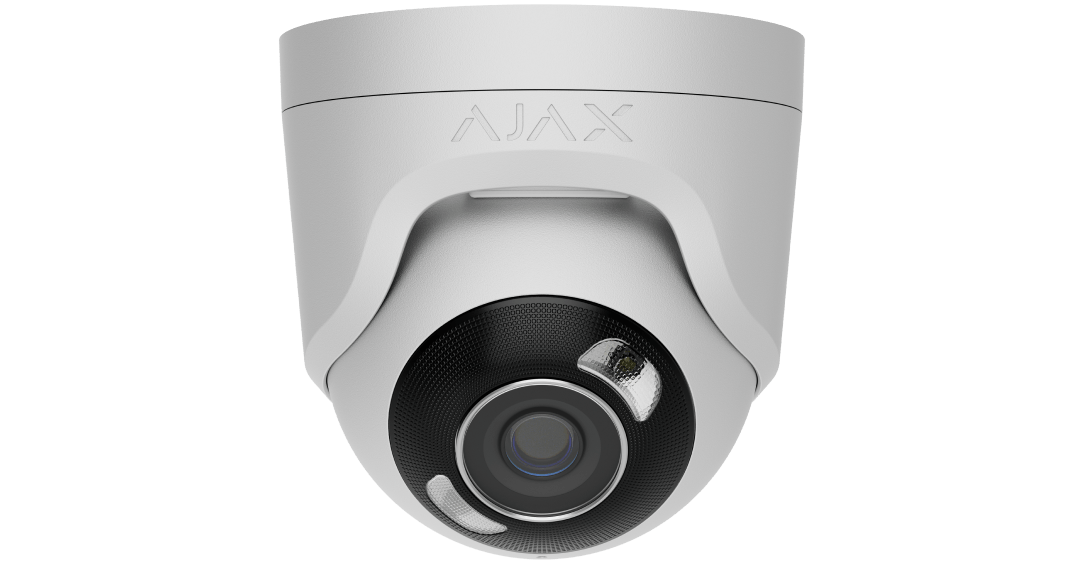

Ajax 126265.197.WH1 AI-Powered Turret IP Camera, 8MP, 2.8mm

What it does

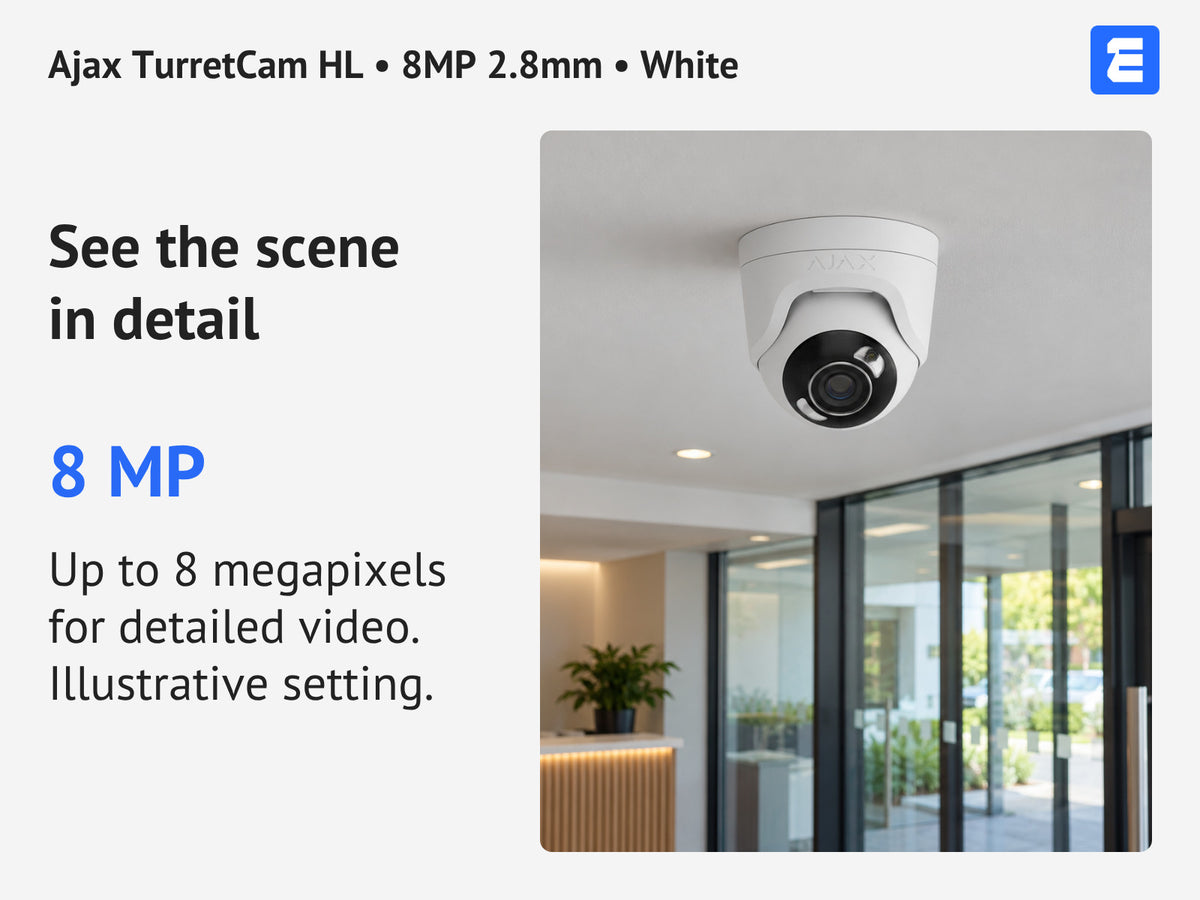

TurretCam HL (8 Mp/2.8 mm) pairs an 8 MP CMOS sensor with a 2.8 mm fixed lens at f/1.6, giving a horizontal field of view of 100–110° and 8 MP (3840 × 2160) video at up to 20 fps in H.265 or H.264.

Hybrid illumination uses white LEDs and IR LEDs, each reaching up to 50 m, and intelligent lighting control adjusts their intensity in real time to prevent overexposure. Minimum illumination is 0.005 lx in colour and 0 lx in B/W.

DORI distances are Detection 90 m, Observation 36 m, Recognition 18 m and Identification 9 m.

Where it is used

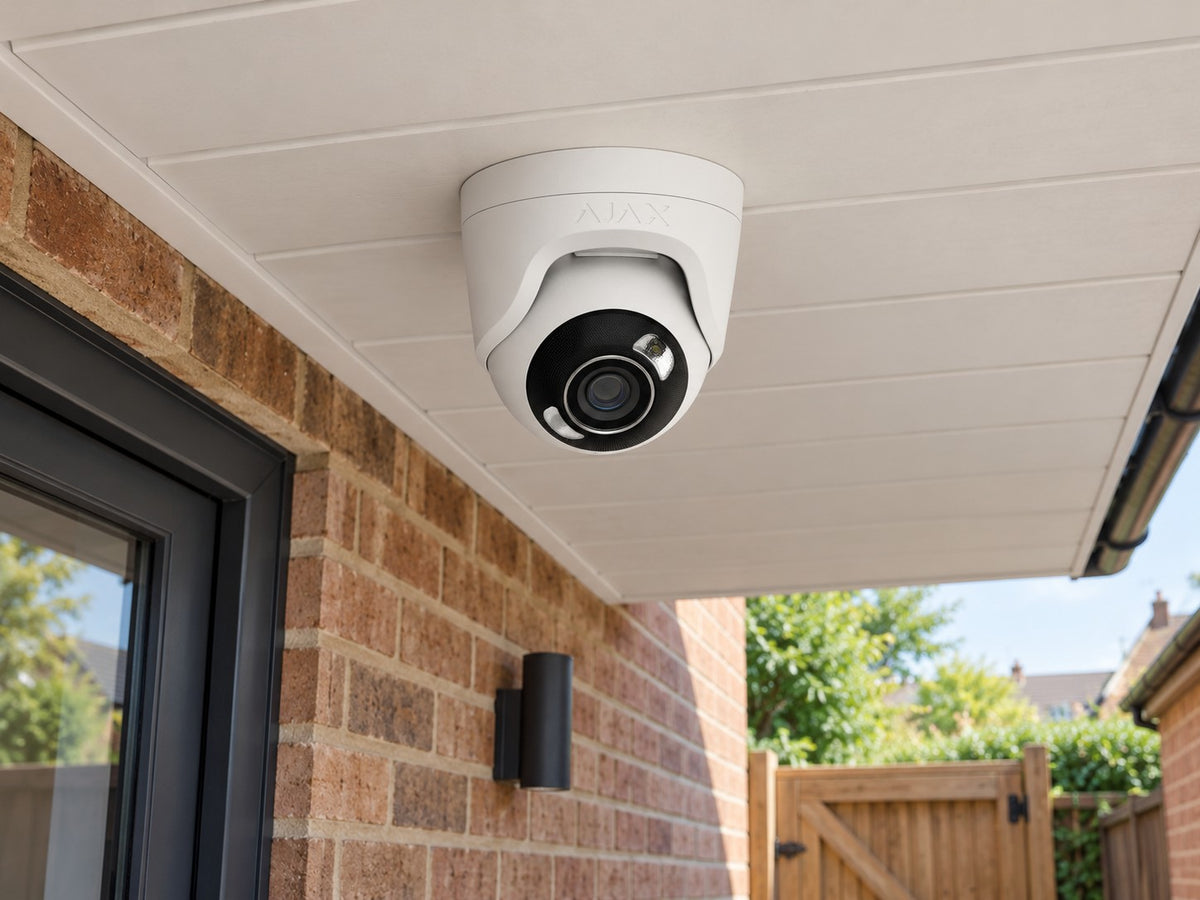

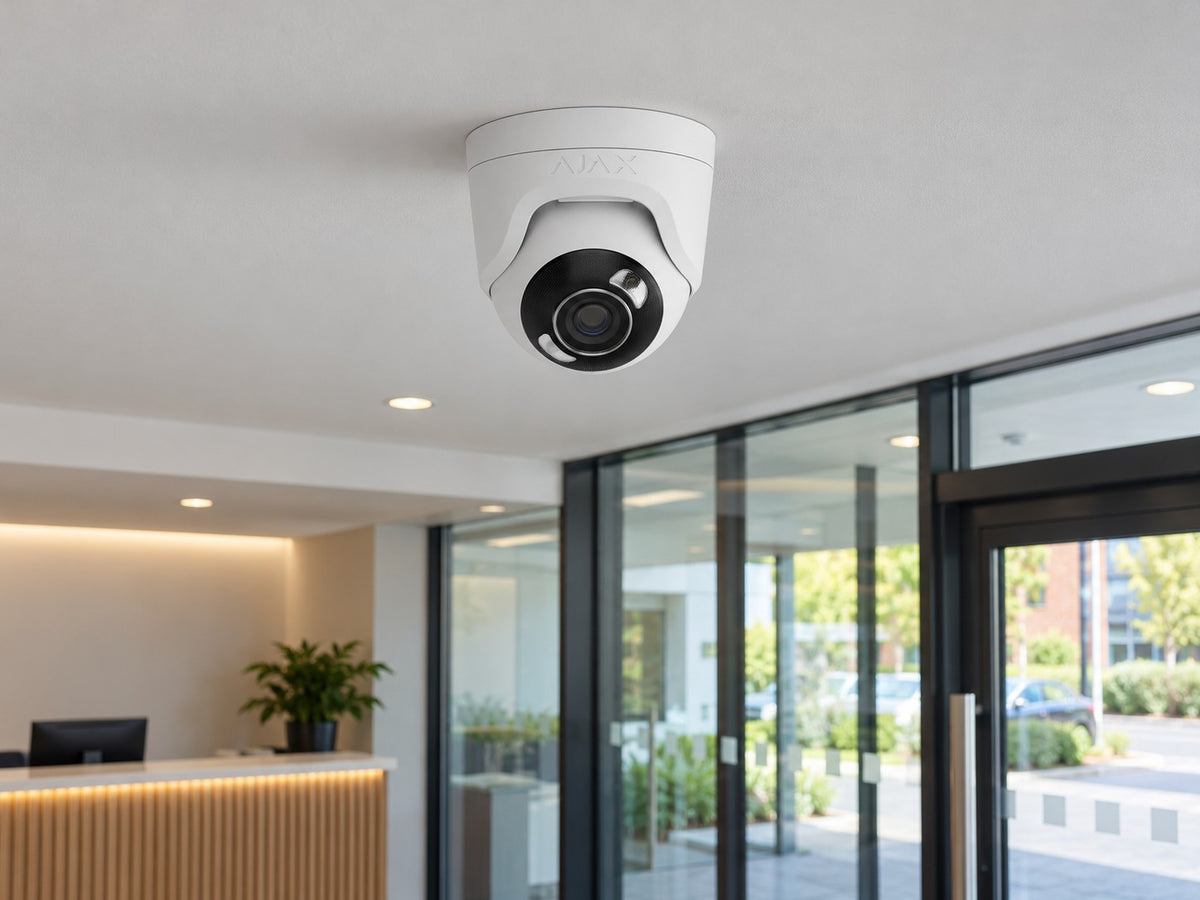

The camera is for outdoor and indoor use. It is rated IP66 and IK08, with an operating temperature range from −30 °C to +60 °C and operating humidity up to 90%.

Installation notes

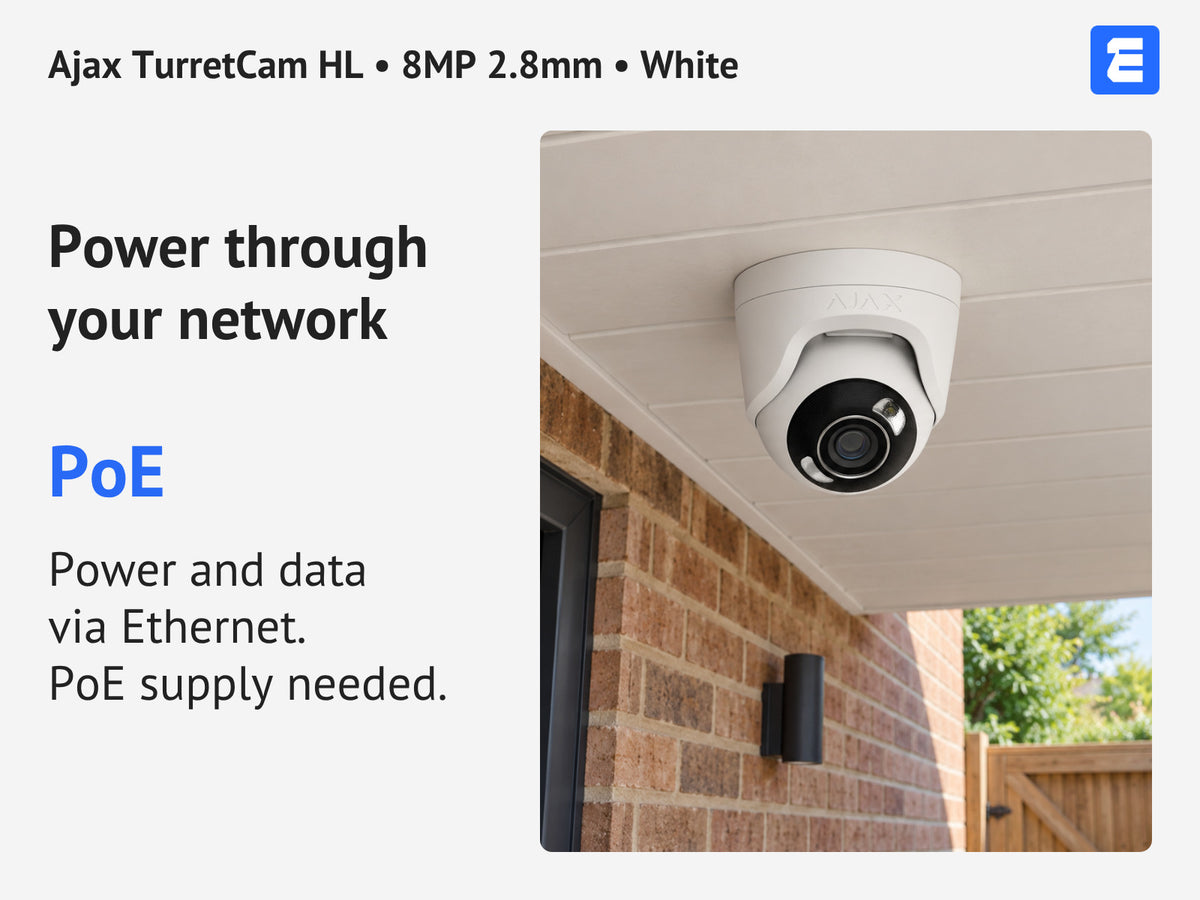

Power comes over PoE (802.3at/af), at up to 8.3 W maximum, or from a 12 V⎓ ± 20%, 1 A power supply unit, at up to 7.1 W maximum. The network port is 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps).

Video can be stored on microSD up to 256 GB (Class V30 or faster; the card is not included) or on an Ajax NVR. The camera is conformant with ONVIF® Profile G and S.

The complete set includes the camera, an installation template, an installation kit and a quick start guide.

Day to day

The camera uses JetSparrow, a fast and encrypted peer-to-peer video protocol developed by Ajax Systems. Ajax detectors can be set to trigger selected cameras to start recording, and the recorded event goes straight to the mobile or desktop monitoring app.

All access rights are fully configurable by the device owner. Sabotage protection includes an mTLS encrypted connection, authentication via Ajax Cloud, Secure Boot against firmware spoofing and OTA signature verification for secure automatic firmware updates.
