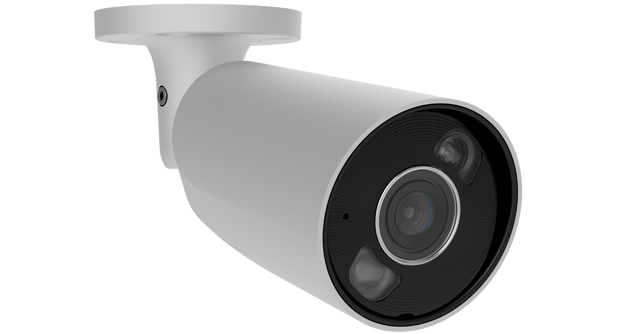

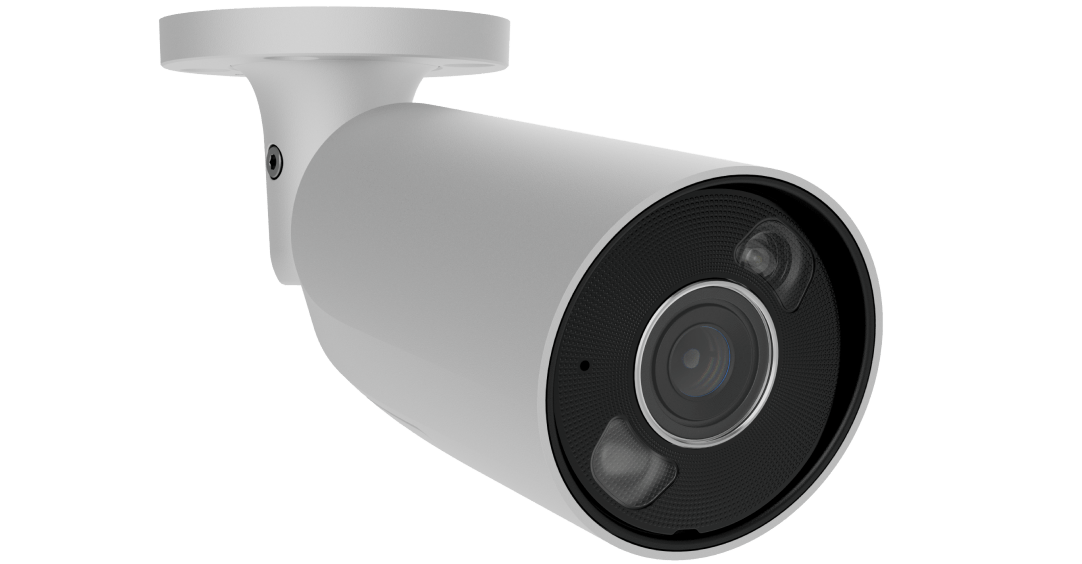

Ajax 126255.217.WH1 BulletCam HL Wired AI-Powered IP Camera, 5MP, 4mm
About this product
The Ajax BulletCam HL (5 Mp/4 mm) is a wired AI-powered security IP camera with an 85° viewing angle, hybrid illumination, True WDR, a microphone and PoE/12 V power, for outdoor and indoor use. It records 5 MP video, detects people, pets and vehicles with AI object detection, and works with Ajax detectors for visual verification of Ajax alarms.
Key features
- 5 MP CMOS image sensor, 1/2.8" type
- 4 mm fixed lens, f/1.6 maximum aperture
- Hybrid illumination: white LED up to 50 m and IR LED up to 50 m
- 120 dB True WDR
- AI object detection of people, pets and vehicles
- Built-in microphone for recording audio at the scene
- PoE (802.3at/af) or 12 V power
- IP66 and IK08 protection class
Frequently asked questions
How far can the Ajax BulletCam HL (5 Mp/4 mm) see at night?
Its maximum illumination distance is up to 50 m with the IR LED and up to 50 m with the white LED.
Can the BulletCam HL be powered by PoE?
Yes. It supports PoE standard 802.3at/af, with PoE power consumption of maximum: up to 7.3 W. It can also run from a 12 V power supply unit.
Where does the BulletCam HL store recordings?
On a microSD card up to 256 GB (Class V30 or faster, not included) or on an Ajax NVR.
What can the BulletCam HL detect?
AI object detection recognises people, pets and vehicles, and motion detection uses software image frame analysis.
Is the BulletCam HL suitable for outdoor use?
Yes. It is for outdoor and indoor use, with an IP66, IK08 protection class and an operating temperature range from −30 °C to +60 °C.
What is in the box with the BulletCam HL (5 Mp/4 mm)?
The camera, an installation template, an installation kit and a quick start guide.
Specifications
Specifications
| Brand | Ajax |
|---|---|
| Model | 126255.217.WH1 |
| Manufacturer Part Number (MPN) | 126255.217.WH1 |
| Image sensor | 5 MP CMOS, 1/2.8" type |
| Lens focal length | 4 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | fixed |
| Field of view | horizontal: 75–85°, vertical: 40–50°, diagonal: 105–115° |
| DORI distance | Detection: 86 m, Observation: 34.4 m, Recognition: 17.2 m, Identification: 8.6 m |
| Maximum illumination distance | white LED: up to 50 m; IR LED: up to 50 m |
| Minimum illumination | color: 0.005 lx; B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 5 MP (2880 × 1620), 4 MP (2560 × 1440), 3 MP (2304 × 1296), 2 MP (1920 × 1080), 0.6 MP (1024 × 576) |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| WDR | 120 dB (True WDR) |
| Storage | microSD (up to 256 GB, Class V30 or faster; card not included), Ajax NVR |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| AI object detection | People, Pets, Vehicles |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| ONVIF® | conformant with ONVIF® Profile G and S |
| Video protocol | JetSparrow |
| PoE standard | 802.3at/af |
| PoE power consumption | maximum: up to 7.3 W; average: up to 6.0 W |
| Power supply unit | 12 V ± 20%, 1 A |
| 12 V DC power consumption | maximum: up to 6.2 W; average: up to 5.1 W |
| Dimensions | 198 × 76 × 76 mm |
| Weight | 550 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP66, IK08 |
| Colour | White |
